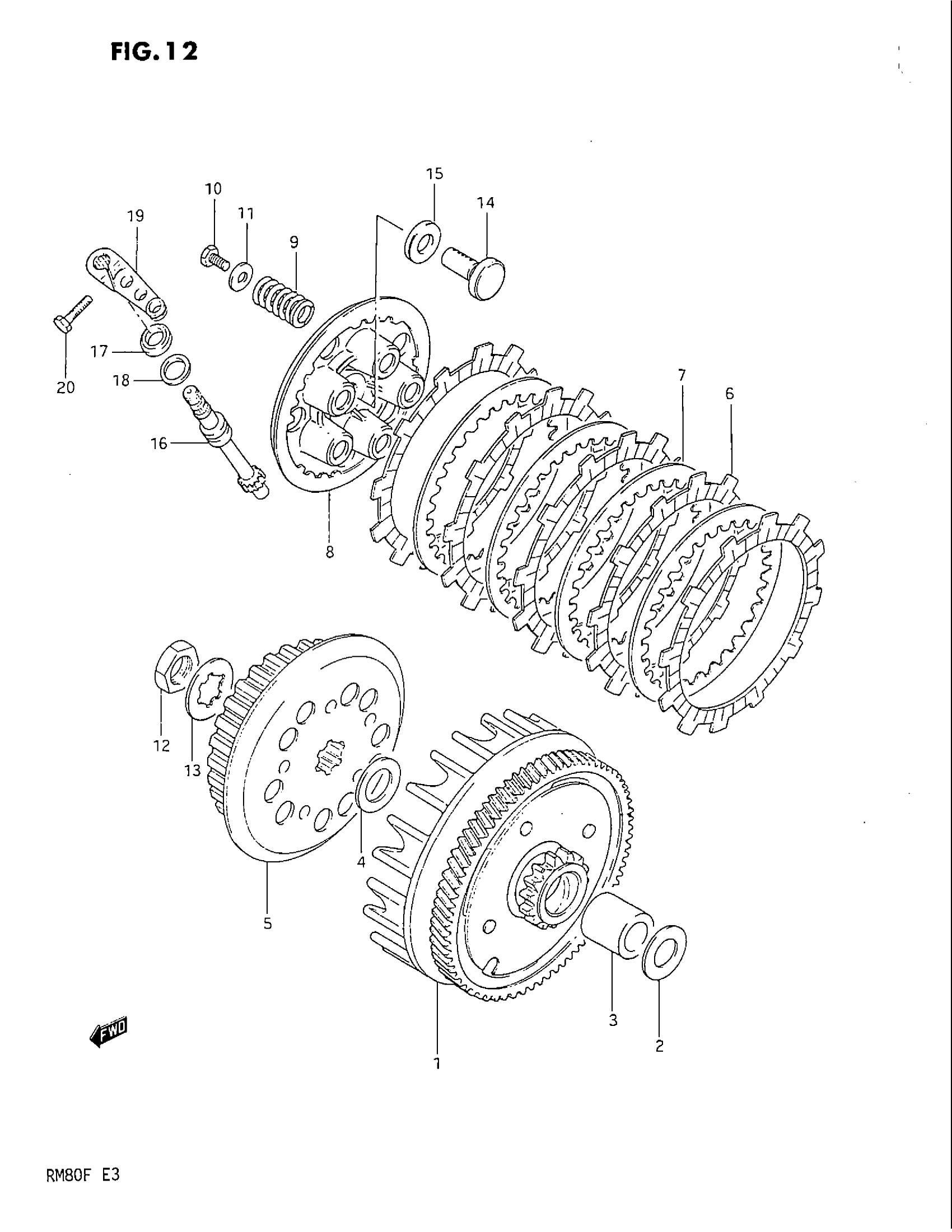

Suzuki RM80 (1985) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:64/17,MODEL D

21200-20401

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | NT:64/17,MODEL E/F

21200-20910

Unavailable

2

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

3

SPACER

09180-17049

Unavailable

4

WASHER

08211-17282

$2.70

5

HUB, SLEEVE | MODEL D This part replaces 21411-20400.

21411-46000

$71.38

5

HUB, SLEEVE | MODEL E/F

21411-46901

Unavailable

6

PLATE, CLUTCH DRIVE | MODEL DMODEL E/F This part replaces 21441-28301.

21441-13A01

$14.73

7

PLATE, CLUTCH DRIVEN (T:1.6) | MODEL DMODEL E/F This part replaces 21451-28000.

21451-19A00

$7.58

8

PLATE, PRESSURE | MODEL D This part replaces 21462-20400.

21462-06C00

$27.28

8

DISC, PRESSURE | MODEL E/F This part replaces 21462-46901.

21462-02B41

$28.95

9

SPRING

09440-15014

$3.37

10

BOLT

09100-05002

$1.49

11

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

12

NUT This part replaces 09140-16001.

09140-16005

$3.75

13

WASHER

09167-17002

$1.91

14

RACK This part replaces 23165-28300.

23165-46000

$22.21

15

BEARING

09263-10002

$10.19

16

PINION, RELEASE

23261-41301

$43.68

17

OIL SEAL (10X17X5) | MODEL D This part replaces 09285-10002.

09285-10004

$3.37

17

OIL SEAL | MODEL E/F

09285-10004

$3.37

18

WASHER (12.5X17X1) This part replaces 09160-12035.

09160-12086

$2.15

19

ARM,CLUTCH RELE | MODEL D This part replaces 23271-14101.

23271-14103

$36.17

19

ARM, CLUTCH RELEASE | MODEL E/F This part replaces 23271-20900.

23271-20902

$29.60

20

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97
