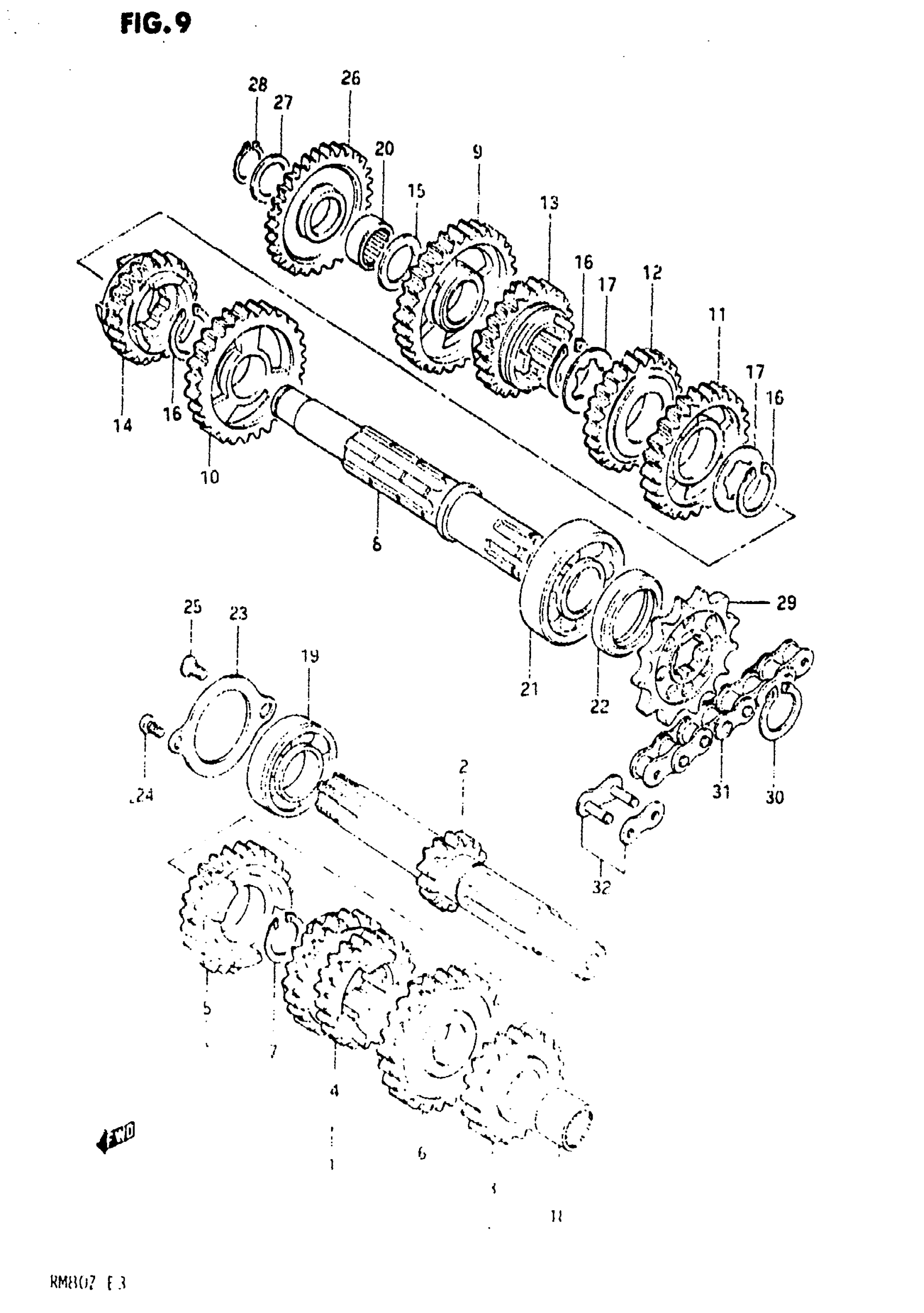

Suzuki RM80 (1982) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 24120-20400.

24120-20401

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 24121-20400.

24121-20402

Unavailable

3

GEAR, 2ND DRIVE (NT:18)

24221-20400

Unavailable

4

GEAR, 3/4 DRIVE (NT:20/20) This part replaces 24231-20400.

24231-20402

Unavailable

5

GEAR, 5TH DRIVE (NT:24)

24251-20400

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 24261-20400.

24260-20402

Unavailable

7

CIRCLIP

09380-17007

Unavailable

8

DRIVESHAFT This part replaces 24131-20400.

24131-20902

Unavailable

9

GEAR, 1ST DRIVEN (NT:36) This part replaces 24310-20400.

24310-20401

Unavailable

10

GEAR, 2ND DRIVEN (NT:34)

24320-20400

Unavailable

11

GEAR, 3RD DRIVEN (NT:30) This part replaces 24331-20400.

24331-20900

Unavailable

12

GEAR, 4TH DRIVEN (NT:25)

24341-20400

Unavailable

13

GEAR, 5TH DRIVEN (NT:26)

24351-20400

Unavailable

14

GEAR, 6TH DRIVEN (NT:25) This part replaces 24361-20400.

24361-20401

Unavailable

15

WASHER

08211-15251

$1.67

16

CIRCLIP

09380-20009

$2.20

17

WASHER

09167-20011

$2.31

18

BEARING, COUNTER SHAFT, L This part replaces 09263-13001.

09263-13002

$15.67

19

BEARING, DRIVE SHAFT RH This part replaces 09262-17008.

09262-17023

$16.75

20

BEARING, RH

09263-15019

$15.48

21

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

22

OIL SEAL (20X35X5) This part replaces 09283-20038.

09283-20057

$6.02

23

HOLDER, BEARING

24741-46000

Unavailable

24

SCREW This part replaces 02112-06108.

02112-06107

$1.49

25

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

26

GEAR, KICK IDLE (NT:26) This part replaces 26261-20400.

26261-20401

Unavailable

27

WASHER, PARKING RH This part replaces 08211-12181.

09181-12139

Unavailable

28

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

29

SPROCKET, ENGINE (NT:13) This part replaces 27511-20400.

27511-20401

$26.90

29

SPROCKET, ENGINE (NT:12) | OPT This part replaces 27511-20410.

27511-20411

$33.27

29

SPROCKET, ENGINE (NT:14) | OPT This part replaces 27511-20420.

27511-20421

$23.32

30

CIRCLIP

09380-20009

$2.20

31

NO DESCRIPTION AVAILABLE | Includes Item(s) 32 This part replaces 27600-20440.

27600-20910-126

Unavailable

32

JOINT (RK) This part replaces 27620-05220.

27620-40220

$11.07

32

.JOINT SET, CHAIN This part replaces 27620-46911.

27620-46912

$5.55
