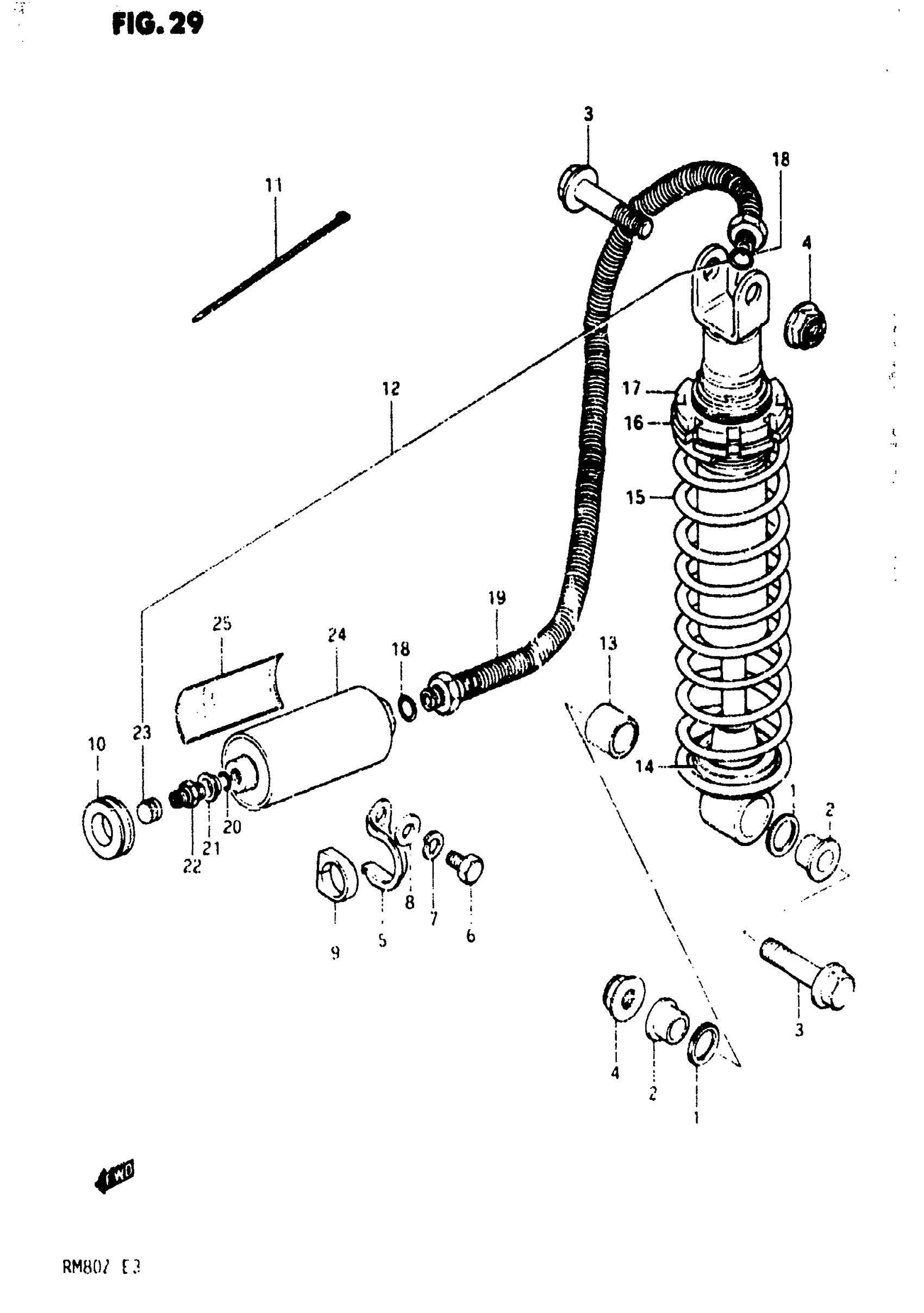

Suzuki RM80 (1982) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

DUST SEAL, LOWER

62683-20400

$3.37

2

SPACER, LOWER

62684-20400

Unavailable

3

BOLT

09103-10045

$4.65

4

NUT This part replaces 08319-31108.

08319-31107

$2.73

5

BRACKET, RESERVER TANK

62421-20400

Unavailable

6

BOLT This part replaces 01107-06128.

01500-06127

$1.97

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

CUSHION, REAR

62423-20400

Unavailable

10

CUSHION, FRONT

62424-20400

Unavailable

11

CLAMP This part replaces 09407-16401.

09407-25402

$4.64

12

SHOCK ABSORBER, REAR | Includes Item(s) 13 - 25

62100-20400

Unavailable

13

BUSH, LOWER

62682-20400

Unavailable

14

SPRING, GUIDE

62225-20400

Unavailable

15

SPRING

62211-20400

Unavailable

16

SPRING, ADJUSTER

62191-20400

Unavailable

17

ADJUSTER NUT

62194-20400

Unavailable

18

O RING

62154-20400

Unavailable

19

HOSE

62280-20400

Unavailable

20

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

21

WASHER

62285-20400

Unavailable

22

VALVE

51293-20400

Unavailable

23

CAP This part replaces 51294-46686.

51294-40400

$8.12

24

TANK This part replaces 62270-20400.

62270-20900

Unavailable

25

LABEL

51149-20400

Unavailable
