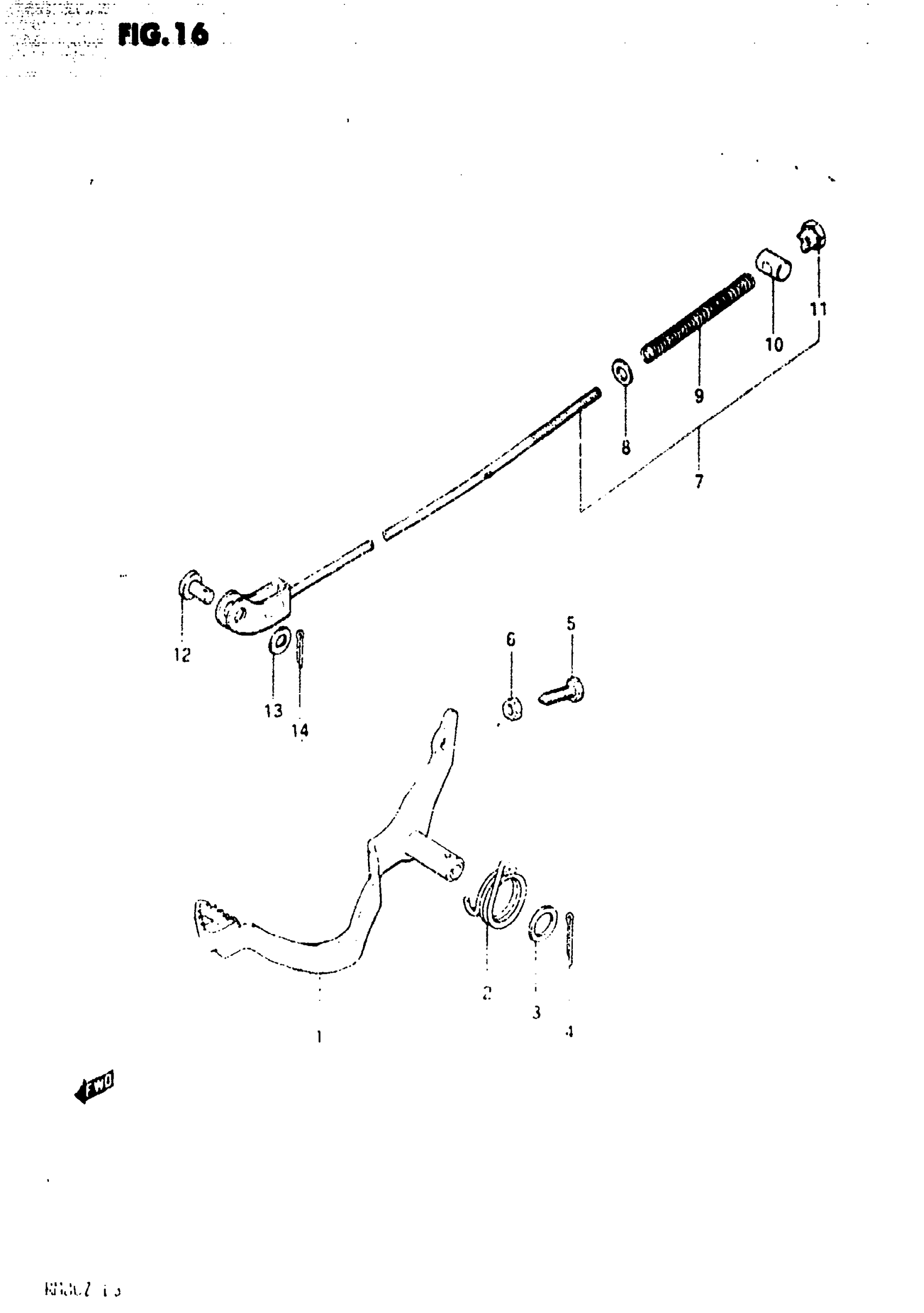

Suzuki RM80 (1982) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-20401

Unavailable

2

SPRING

09448-32009

Unavailable

3

WASHER

09160-15002

$1.91

4

PIN This part replaces 04111-25258.

04111-2530A

$1.49

5

BOLT, ADJUSTER

09128-06028

$1.98

6

.NUT This part replaces 08310-11068.

08310-00067

$2.13

7

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 - 14 This part replaces 43300-20400.

43300-20X50

Unavailable

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

SPRING

09440-09004

$2.20

10

PIN, REAR

09209-11002

$2.19

11

.NUT This part replaces 09150-06001.

09150-06010

$3.10

12

PIN, ADJUSTER

09200-06025

Unavailable

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
