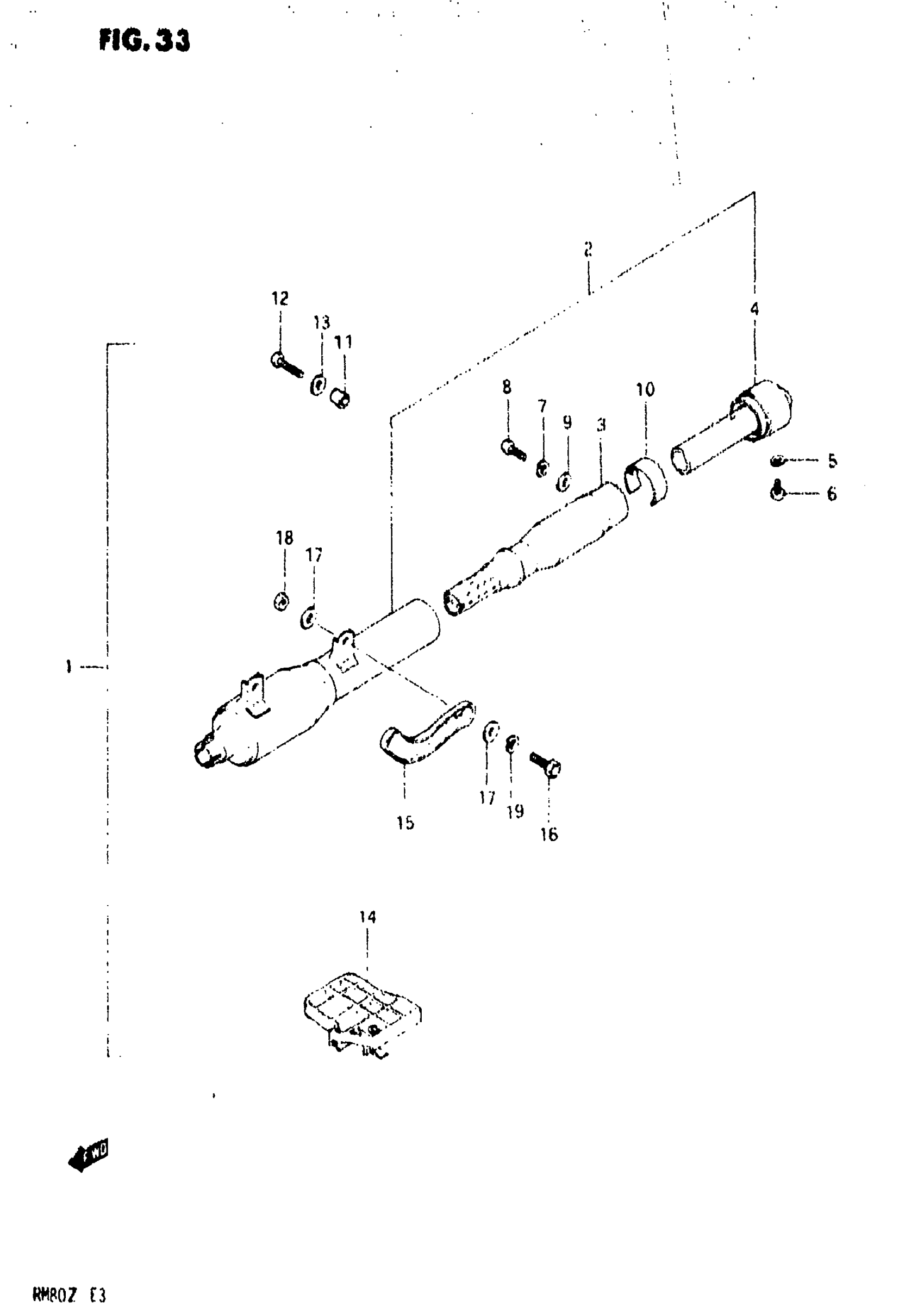

Suzuki RM80 (1982) OPTIONAL (OFFROAD SOUND KIT) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 19 This part replaces 14300-20840.

14300-20840-H01

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 14303-20410.

14303-20410-H01

Unavailable

3

BODY, ARRESTOR

14810-38601

Unavailable

4

TUBE, CLEAN OUT

14850-48000

Unavailable

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

SCREW This part replaces 02112-05088.

02112-05087

$1.49

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

SCREW

09128-06013

$1.49

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

BAND, ARRESTOR

14843-38600

Unavailable

11

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

12

SCREW (6X40) This part replaces 02142-06408.

02112-06407

$1.78

13

WASHER This part replaces 09160-06007.

09160-06084

$1.78

14

CAP, AIR CLEANER

13860-20400

Unavailable

15

BRACKET, MUFFLER HANGER

14471-20410

Unavailable

16

BOLT This part replaces 01107-06128.

01500-06127

$1.97

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

.NUT This part replaces 08310-11068.

08310-00067

$2.13

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
