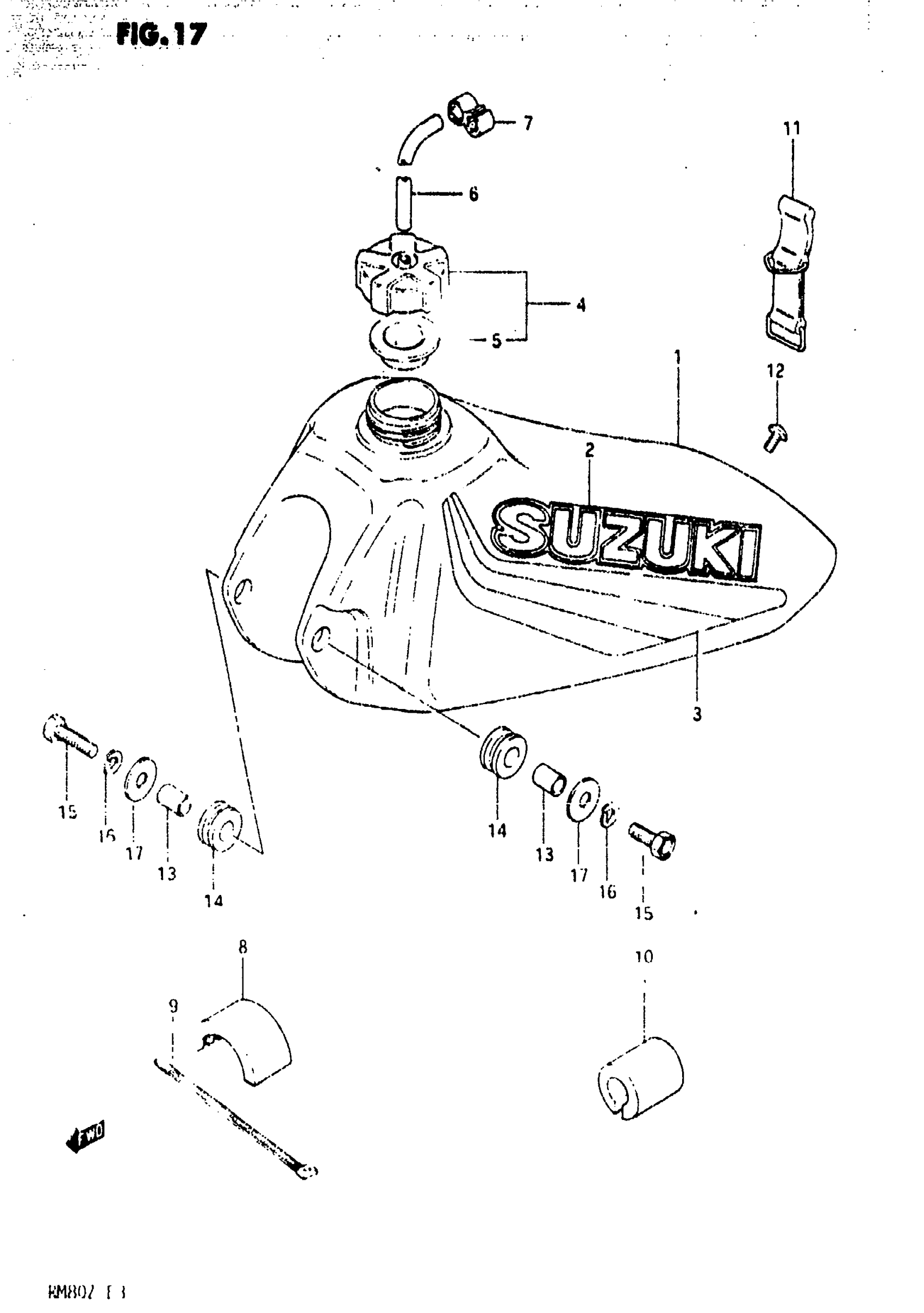

Suzuki RM80 (1982) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 44100-20400-163.

44100-20840-163

Unavailable

2

EMBLEM FUEL TAN This part replaces 68111-20400-64D.

68111-46700-019

Unavailable

3

TAPE SET

68110-20400-67H

Unavailable

4

CAP SET,FUEL TA | Includes Item(s) 5 This part replaces 44200-40810.

44200-40822

$14.76

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

7

CLAMP

44486-32101

$3.65

8

CUSHION, UPPER FRONT

44541-14300

$8.12

9

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

10

CUSHION, UPPER REAR

44542-17300

$8.12

11

BAND, REAR

44560-41300

Unavailable

12

SCREW This part replaces 09125-06009.

09125-06073

$1.84

13

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

14

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

15

BOLT This part replaces 01107-06258.

01500-06257

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER (6.5X18X1.0)

09160-06028

$1.49
