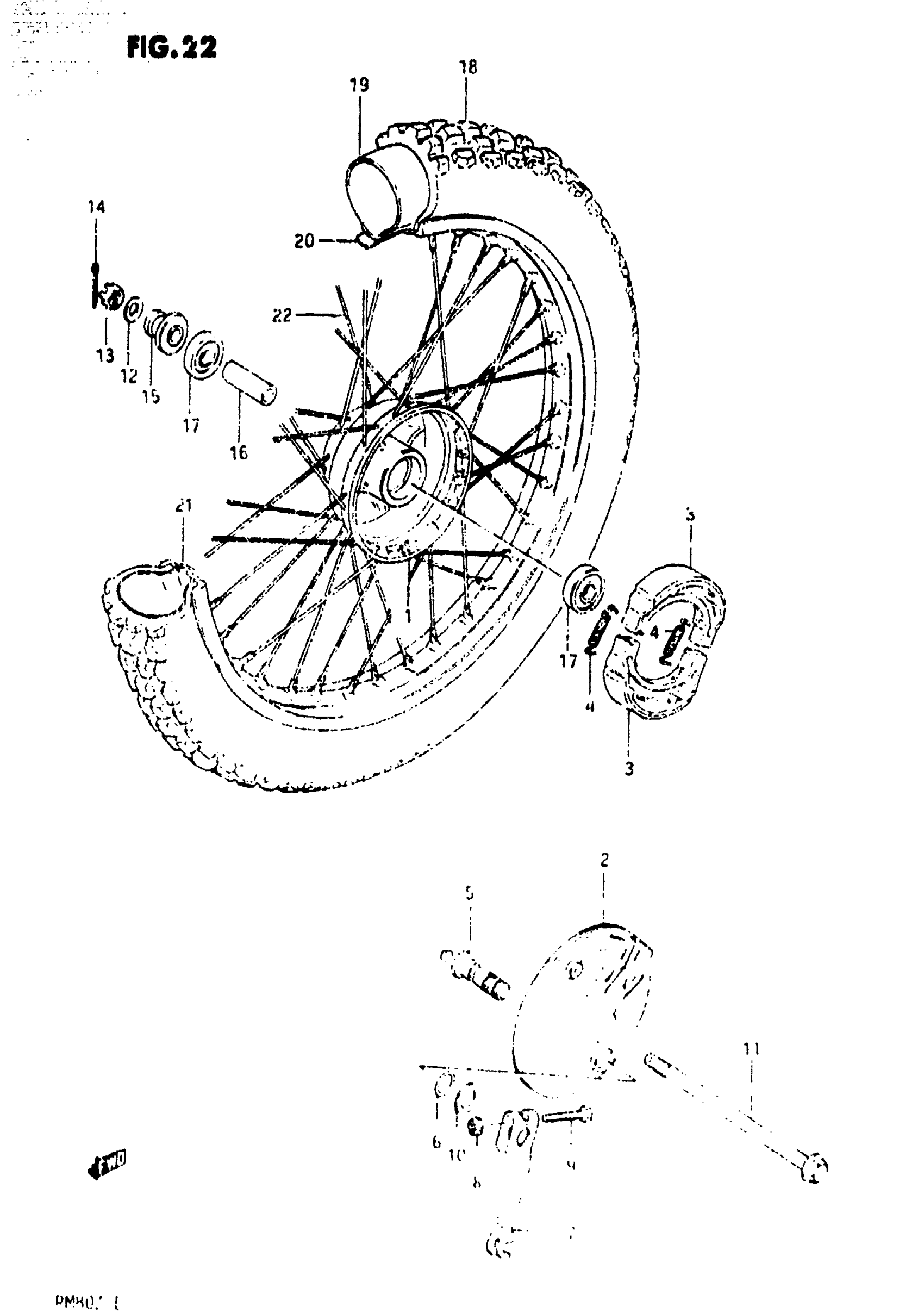

Suzuki RM80 (1982) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FRONT HUB This part replaces 54110-20400.

54110-20403

Unavailable

2

PANEL, FRONT HUB

54210-20400

Unavailable

3

SHOE SET,BRAKE This part replaces 54410-20400.

54400-20810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM

54441-20400

Unavailable

6

DUST SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM

54451-20400

Unavailable

8

NUT This part replaces 08316-16068.

08319-31067

$2.03

9

BOLT This part replaces 01517-06308.

01550-06307

$2.69

10

WASHER, DUST SEAL

09160-12011

$1.54

11

AXLE, FRONT This part replaces 54711-20400.

54711-20401

Unavailable

12

WASHER This part replaces 08322-11108.

08322-01107

$2.15

13

NUT This part replaces 08314-31108.

08314-3110A

$1.99

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

SPACER, AXLE RH

54740-20400

Unavailable

16

SPACER, HUB

09180-10079

Unavailable

17

BEARING, LH

08143-62007

$18.25

18

NO DESCRIPTION AVAILABLE | BS This part replaces 55100-20520.

55100-205V0

Unavailable

18

TIRE, FRONT (70/100-17) | IRC This part replaces 55100-20510.

55110-02B41

Unavailable

19

TUBE ASSY, WHEEL INNER | BS This part replaces 55200-20330.

55200-08G01

$22.77

19

NO DESCRIPTION AVAILABLE | IRC This part replaces 55200-09620.

65200-47C00

Unavailable

20

PROTECTOR, INNER TUBE | BS This part replaces 55261-20330.

55261-02B40

$6.88

20

PROTECTOR, INNER TUBE | IRC This part replaces 55261-01010.

55261-02B40

$6.88

21

RIM, WHEEL (1.40X17) GOLD This part replaces 55311-20400.

55311-20930

Unavailable

22

SPOKE SET

55320-20400

Unavailable
