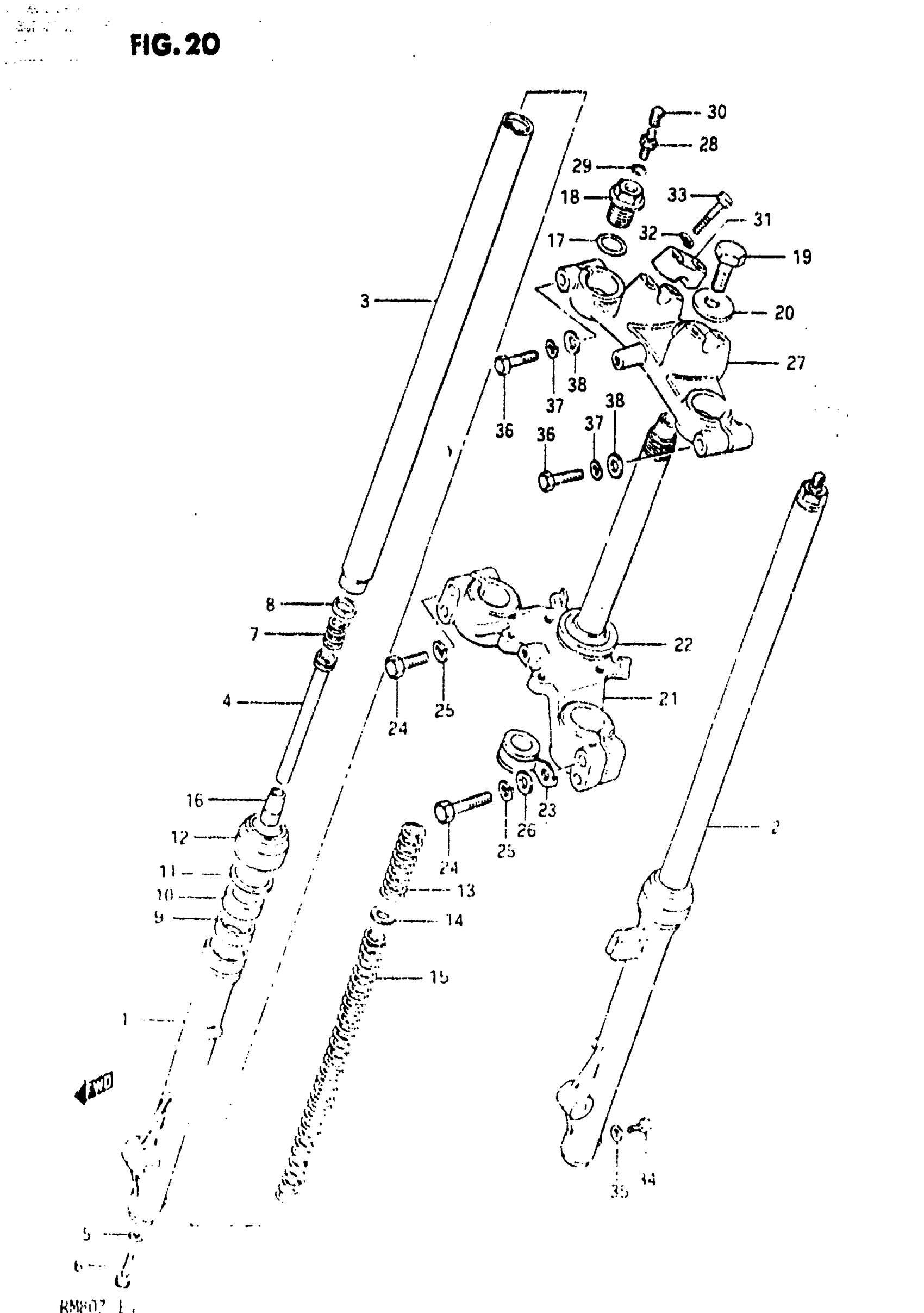

Suzuki RM80 (1982) FRONT FORK Diagram

#

Description
Price

0

FRONT FORK ASSY (GOLD) | Includes Item(s) 1 - 38

51100-20400-08C

Unavailable

1

TUBE, OUTER RH

51130-20400

Unavailable

2

TUBE, OUTER LH

51140-20400

Unavailable

3

TUBE, INNER

51110-20400

Unavailable

4

PIPE, SEAT

51146-20400

Unavailable

5

O RING This part replaces 51148-31030.

51148-36011

$3.56

6

BOLT

51147-48130

$4.34

7

SPRING

51177-36030

Unavailable

8

RING, PISTON

51196-33130

$8.12

9

SEAL SPACER

51168-20400

Unavailable

10

.OIL SEAL

51153-48420

$13.30

11

RING, OIL SEAL STOPPER

51156-20400

Unavailable

12

DUST SEAL

51173-20400

$14.50

13

SPRING A

51171-20400

Unavailable

14

SEAT SPRING

51172-36331

Unavailable

15

SPRING B

51184-20400

Unavailable

16

.PIECE, OIL LOCK

51195-48000

Unavailable

17

.O RING

51181-25030

$4.52

18

BOLT

51351-20400

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 51352-48000.

51352-13600

Unavailable

20

WASHER

51356-20300

Unavailable

21

STEM, STEERING (GOLD)

51410-20400-08C

Unavailable

22

RACE, OUTER LOWER

51621-33001

$16.25

23

CLIP

51455-20400

Unavailable

24

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

WASHER This part replaces 08322-11108.

08322-01107

$2.15

27

STEM HEAD, STEERING (GOLD)

51311-20400-08C

Unavailable

28

VALVE

51293-20400

Unavailable

29

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

30

CAP

51294-20400

$7.37

31

HOLDER, HANDLE (GOLD)

56211-46680-08C

Unavailable

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

34

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

35

GASKET

51183-31030

$3.77

36

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

WASHER This part replaces 08322-21088.

08322-01087

$2.13
