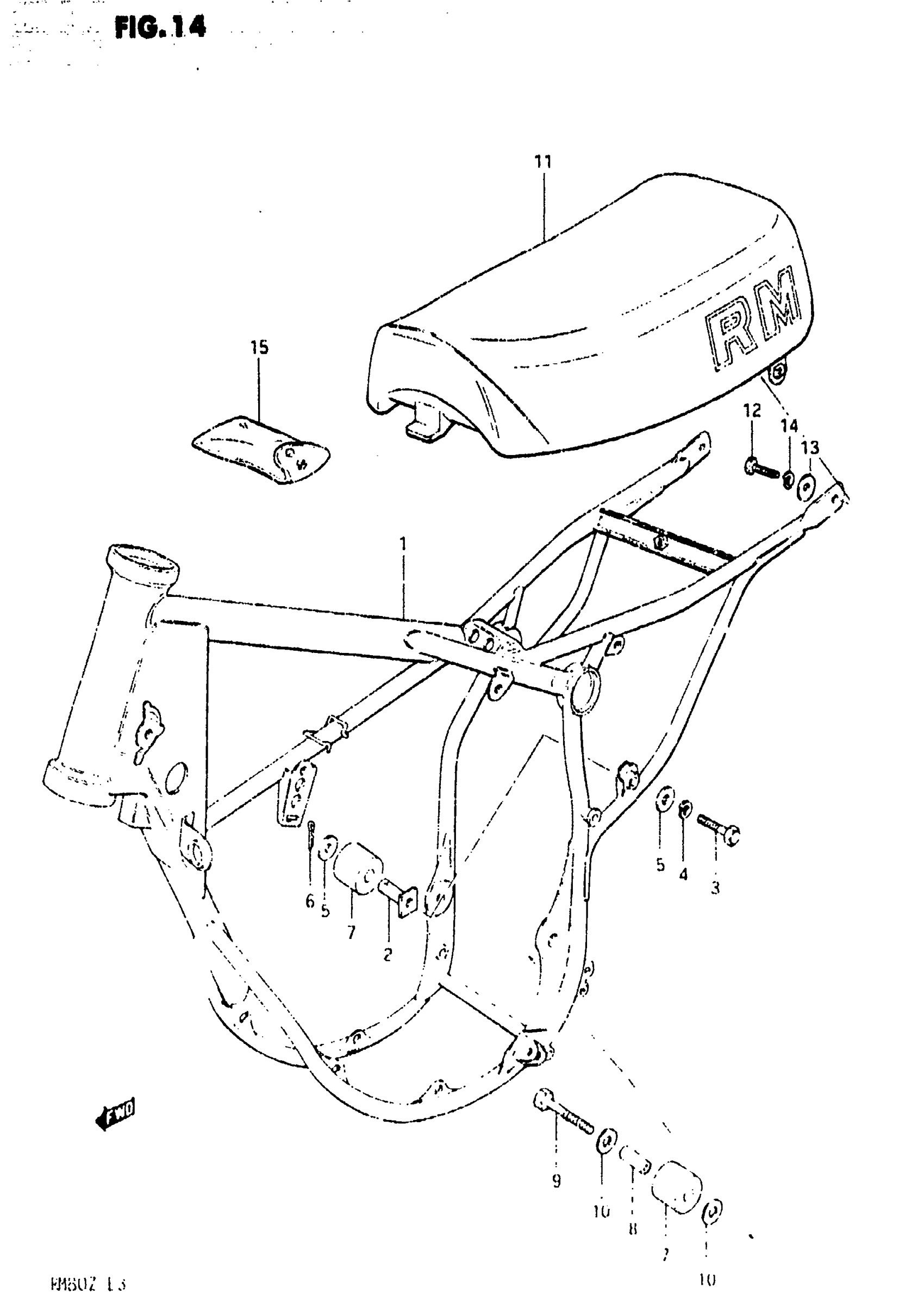

Suzuki RM80 (1982) FRAME - SEAT Diagram

#

Description
Price

1

FRAME (BLACK)

41100-20401-019

Unavailable

2

SHAFT

43910-20400

Unavailable

3

BOLT This part replaces 01107-06258.

01500-06257

$1.97

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

WASHER This part replaces 08322-21108.

08322-01107

$2.15

6

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

7

ROLLER, CHAIN CONTROL

43911-20400

Unavailable

8

SPACER

09180-06093

Unavailable

9

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

10

WASHER This part replaces 08322-21108.

08322-01107

$2.15

11

SEAT ASSY (BLUE) This part replaces 45100-20400-865.

45100-20910-54G

Unavailable

12

BOLT This part replaces 01107-06208.

01500-06207

$2.28

13

WASHER This part replaces 09160-06007.

09160-06084

$1.78

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

TOOL SET

09800-08800

Unavailable
