Partiron

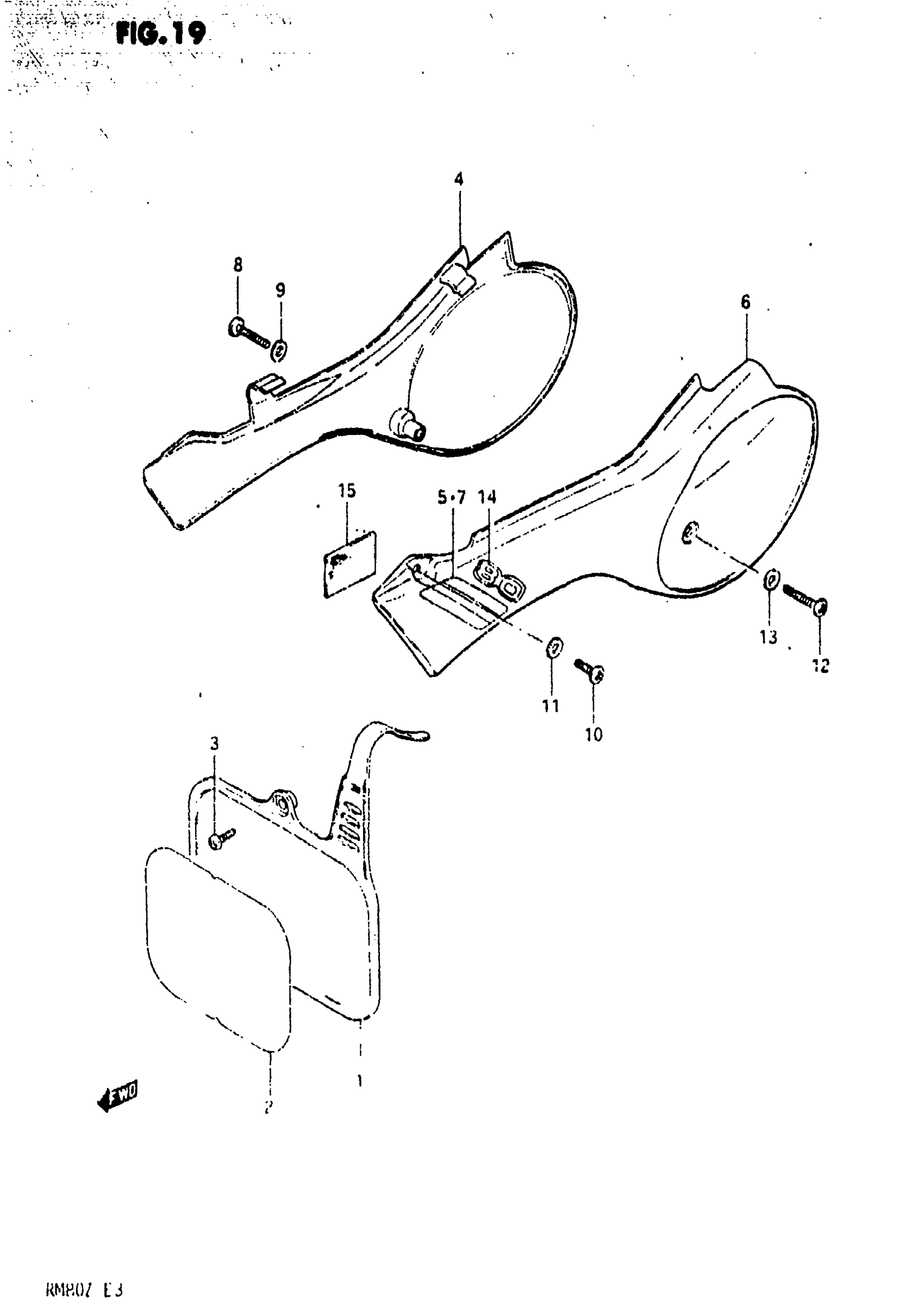

Suzuki RM80 (1982) FRAME COVER Diagram

#

Description
Price

1

PLATE, FRONT NUMBER This part replaces 94911-20410.

94911-20900

Unavailable

2

EMBLEM This part replaces 68169-20400.

68250-20900

Unavailable

3

SCREW This part replaces 02142-05128.

02142-05127

$1.97

4

COVER, FRAME RH (YELLOW) This part replaces 47111-20400-81W.

47111-20402-163

Unavailable

5

TAPE, RH

68136-20400-67H

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 47211-20400-81W.

47211-20901-13L

Unavailable

7

TAPE, LH

68146-20400-67H

Unavailable

8

SCREW This part replaces 02142-06308.

02142-06307

$1.57

9

WASHER This part replaces 09160-06007.

09160-06084

$1.78

10

SCREW, FRONT

02142-06167

$1.49

11

WASHER

09160-06019

$1.49

12

SCREW This part replaces 02142-06308.

02142-06307

$1.57

13

WASHER This part replaces 09160-06007.

09160-06084

$1.78

14

EMBLEM F COVER This part replaces 68131-20400-64D.

68131-03400-163

Unavailable

15

SHIELD,FRM CVR, This part replaces 47122-20400.

47167-28C10

Unavailable
