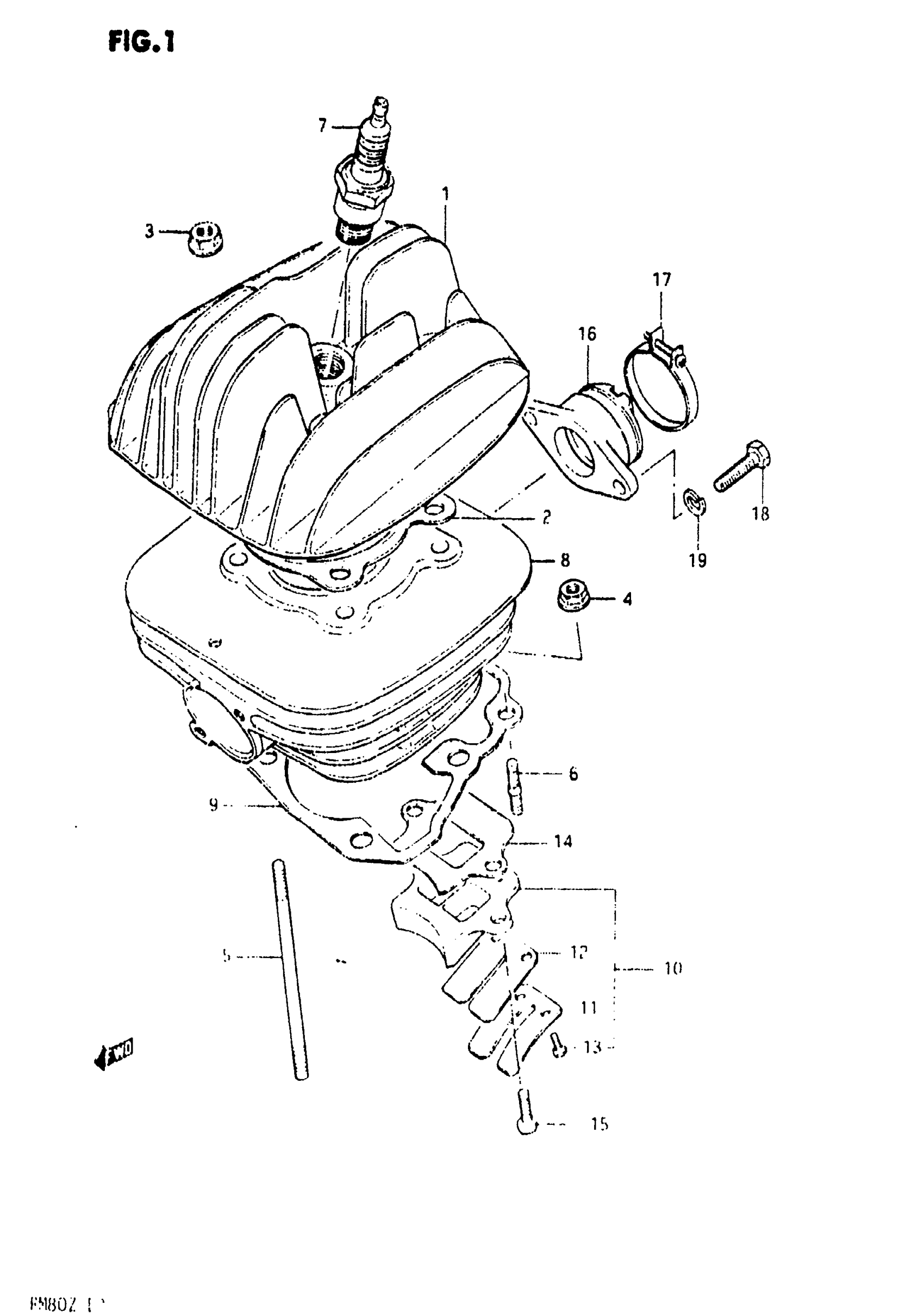

Suzuki RM80 (1982) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-20400

Unavailable

2

GASKET, CYLINDER HEAD This part replaces 11141-20400.

11141-46082

$5.80

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

5

STUD BOLT, NO.1

09108-08028

$5.20

6

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

7

SPARK PLUG (NGK,B9ES) This part replaces 09482-00232.

09482-00351

$2.86

7

SPARK PLUG (ND, W27ES)

09482-00160

Unavailable

8

CYLINDER

11210-20400

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 11241-20400.

11241-20400-H17

Unavailable

10

REED VALVE ASSY | Includes Item(s) 11 - 13

13150-46011

Unavailable

11

STOPPER

13152-23011

Unavailable

12

REED VALVE

13153-27110

Unavailable

13

SCREW This part replaces 13154-19011.

02112-0308A

$1.80

14

GASKET, REED VALVE This part replaces 13156-46001.

13156-46001-H17

$2.83

15

SCREW This part replaces 02112-06168.

02112-06167

$1.49

16

PIPE, INTAKE

13110-20400

Unavailable

17

CLAMP This part replaces 09402-42306.

09402-42303

$4.77

18

BOLT This part replaces 01107-06208.

01500-06207

$2.28

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
