Partiron

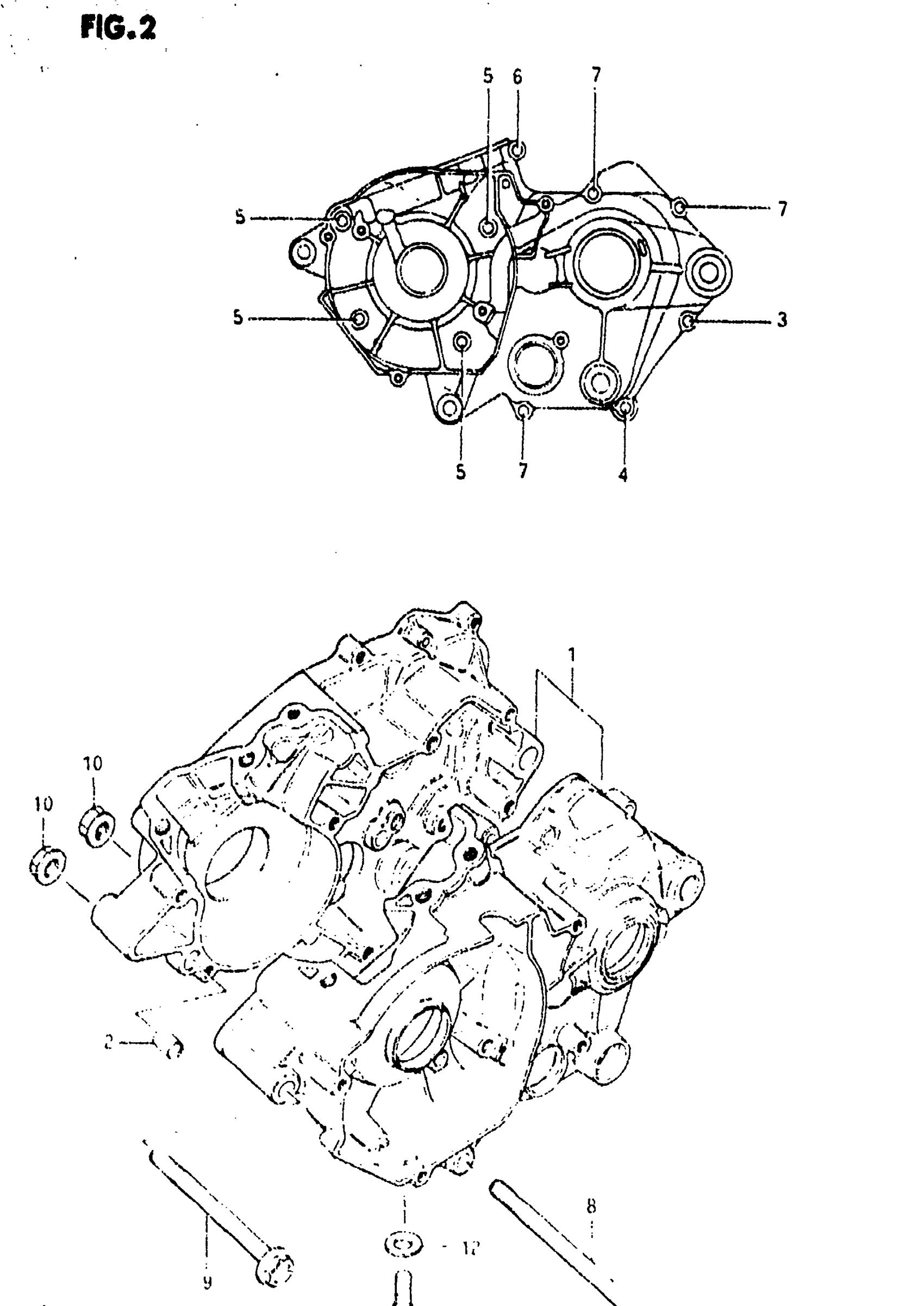

Suzuki RM80 (1982) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 7

11300-20400

Unavailable

2

PIN

04211-11189

$1.78

3

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

BOLT (8X125) This part replaces 09103-08078.

09103-08106

Unavailable

9

BOLT (8X95)

09103-08066

$3.93

10

NUT This part replaces 08319-31088.

08319-3108A

$2.32

11

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

12

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65
