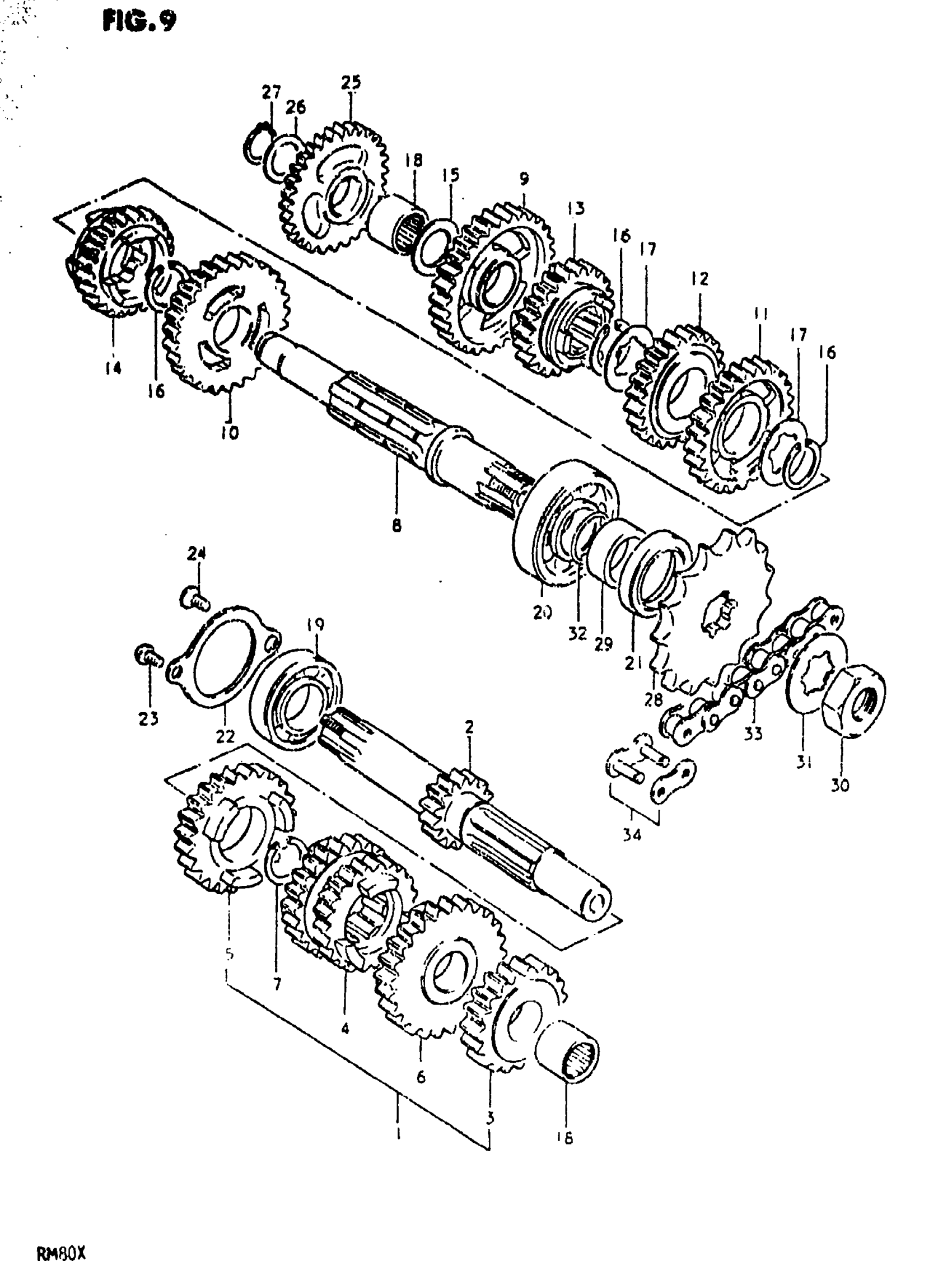

Suzuki RM80 (1981) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-46910

Unavailable

2

COUNTERSHAFT (NT:14)

24121-46900

Unavailable

3

GEAR, 2ND DRIVE (NT:18)

24221-46910

Unavailable

4

GEAR, 3/4 DRIVE (NT:20/20)

24231-46910

Unavailable

5

GEAR, 5TH DRIVE (NT:24)

24251-46900

Unavailable

6

GEAR, 6TH DRIVE (NT:26)

24261-46900

Unavailable

7

CIRCLIP

09380-17007

Unavailable

8

DRIVESHAFT

24131-46900

Unavailable

9

GEAR, 1ST DRIVEN (NT:36)

24310-46900

Unavailable

10

GEAR, 2ND DRIVEN (NT:34)

24321-46910

Unavailable

11

GEAR, 3RD DRIVEN (NT:30)

24331-46910

Unavailable

12

GEAR, 4TH DRIVEN (NT:25)

24341-46910

Unavailable

13

GEAR, 5TH DRIVEN (NT:26)

24341-46000

Unavailable

14

GEAR, 6TH DRIVEN (NT:25)

24361-46910

Unavailable

15

WASHER

09160-13006

Unavailable

16

CIRCLIP

09380-17007

Unavailable

17

WASHER

09167-17003

Unavailable

18

BEARING, COUNTER SHAFT, L This part replaces 09263-13001.

09263-13002

$15.67

19

BEARING, DRIVE SHAFT RH This part replaces 09262-17008.

09262-17023

$16.75

20

BEARING

08113-63030

$23.65

21

OIL SEAL

09283-21004

$6.73

22

HOLDER, BEARING

24741-46000

Unavailable

23

SCREW This part replaces 02112-06108.

02112-06107

$1.49

24

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

25

GEAR, KICK IDLE (NT:26) This part replaces 26260-46000.

26260-46001

Unavailable

26

WASHER

08211-12261

$2.50

27

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

28

SPROCKET,ENGINE This part replaces 27511-27400.

27511-26400

$24.57

28

SPROCKET, ENGINE (NT:13) | OPT

27511-46000

$18.20

28

SPROCKET, ENGINE (NT:15) | OPT

27511-27410

Unavailable

29

SPACER

09180-17050

Unavailable

30

NUT

09140-16002

$3.16

31

WASHER

09167-16001

$1.87

32

O RING

09280-17001

$1.49

33

CHAIN ASSY,DRIV | Includes Item(s) 34 This part replaces 27600-46960.

27600-46912-134

$70.38

34

JOINT

27620-46910

Unavailable
