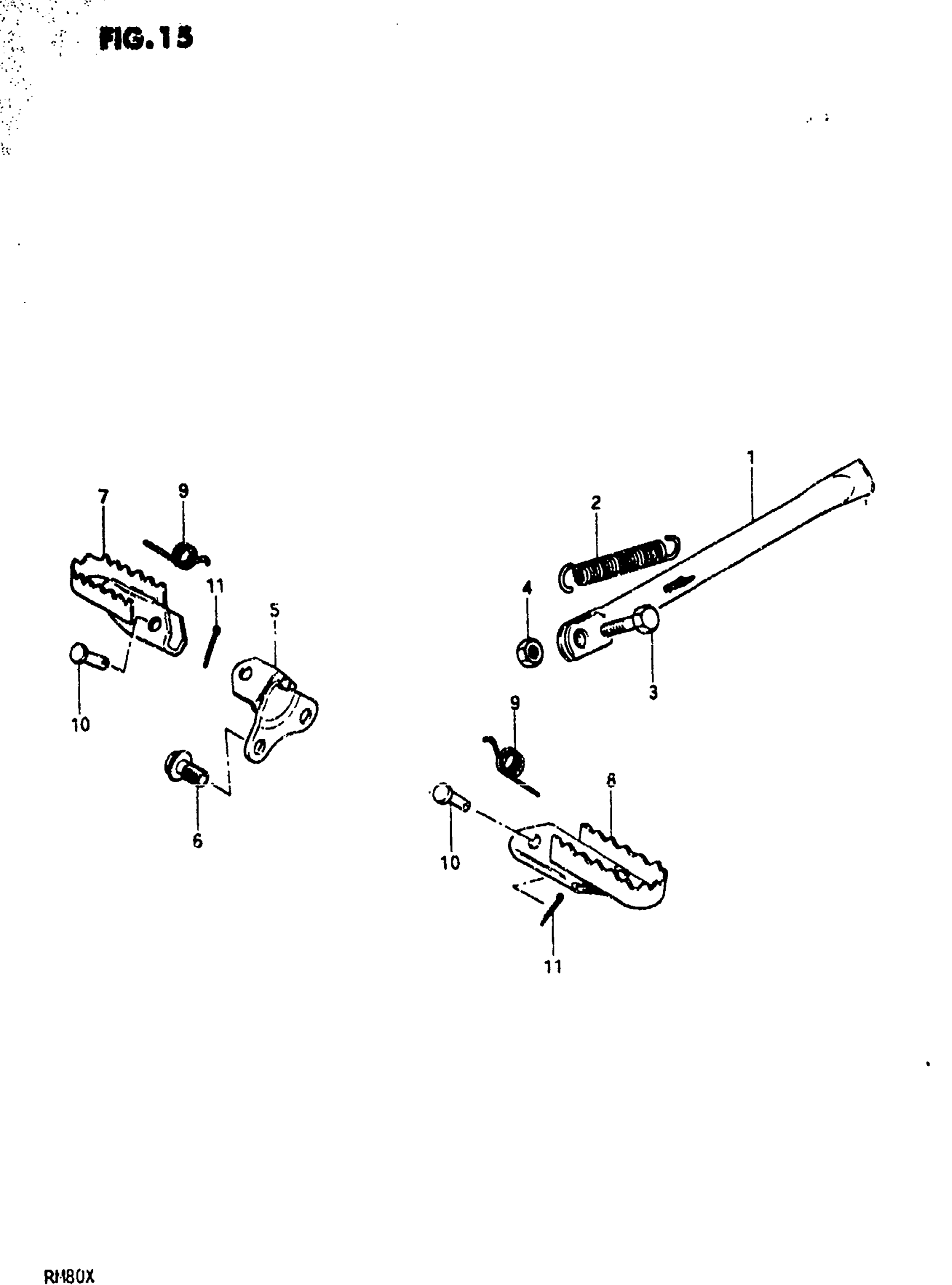

Suzuki RM80 (1981) STAND Diagram

#

Description
Price

1

STAND, PROP | MODEL T This part replaces 42310-26520.

42310-26522

Unavailable

1

STAND, PROP | MODEL X

42310-26522

Unavailable

2

SPRING

09443-14017

$3.04

3

BOLT This part replaces 09100-10007.

09100-10287

$3.48

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

HOLDER, FOOTREST RH

43510-20300

Unavailable

6

BOLT

09103-10100

$5.57

7

FOOTREST, RH (BLACK) This part replaces 43550-46000.

43550-46000-019

$20.27

8

FOOTREST, LH (BLACK) This part replaces 43560-46000.

43560-46000-019

$20.97

9

SPRING

09448-14012

$3.04

10

PIN

09200-08002

$2.05

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
