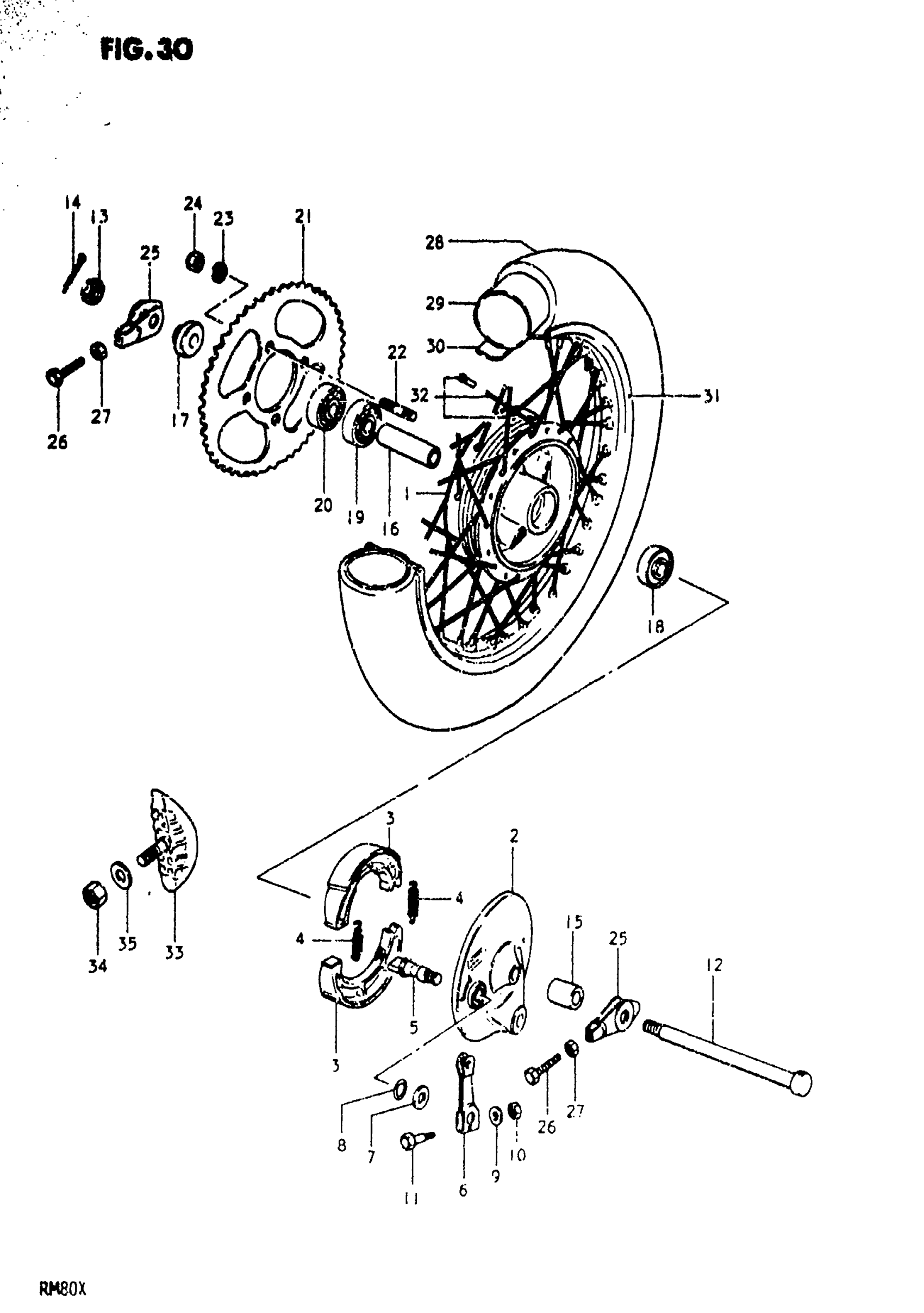

Suzuki RM80 (1981) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB

64100-46811

Unavailable

2

PANEL, REAR BRAKE ANCHOR This part replaces 64210-46022.

64210-46024

Unavailable

3

SHOE & SPRING S This part replaces 54410-43020.

54400-43880

$39.22

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | MODEL T This part replaces 54441-29301.

54441-29305

$20.02

5

CAM, BRAKE | MODEL X This part replaces 54441-29302.

54441-29305

$20.02

6

LEVER, REAR BRAKE CAM

64451-43020

$18.02

7

WASHER This part replaces 09160-14001.

09160-14055

$2.39

8

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08310-11068.

08310-00067

$2.13

11

BOLT, BRAKE CAM LEVER (6x31)

09100-06078

$2.38

12

AXLE,FRONT This part replaces 64711-43000.

64711-43001

$41.97

13

NUT This part replaces 08314-31128.

08314-3112A

$2.41

14

PIN This part replaces 04111-30308.

04111-3030A

$1.49

15

SPACER,12.1X22X This part replaces 09180-12077.

09180-12077-XC0

Unavailable

16

SPACER, REAR HUB BEARING

09180-12082

Unavailable

17

SPACER, REAR AXLE .H

64750-46000

$9.23

18

B1 12X37X12 BEA This part replaces 08143-63017.

08143-6301B

$19.20

19

BEARING, REAR HUB LH

08113-63010

$19.57

20

BEARING This part replaces 08123-63017.

08123-6301B

$14.10

21

SPROCKET, REAR (NT:50) | MODEL T

64511-46050

Unavailable

21

SPROCKET, REAR (NT:50) | MODEL X

64511-20310

Unavailable

22

BOLT,STUD This part replaces 01421-10208.

01421-1020A

$2.90

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

NUT This part replaces 08319-21108.

09159-10027

$3.10

25

ADJUSTER, CHAIN

61410-13200

Unavailable

26

BOLT

09104-06002

Unavailable

27

.NUT This part replaces 08310-11068.

08310-00067

$2.13

28

TIRE, REAR (90/100-14) | IRC This part replaces 65100-20300.

65110-02B40

Unavailable

29

TUBE ASSY, INNER This part replaces 65200-20300.

65200-02B40

Unavailable

30

PROTECTOR,INNER This part replaces 55261-24010.

55261-24020

$3.45

31

RIM, WHEEL (160x14)

65311-20300

Unavailable

32

SPOKE ASSY, REAR

65320-20300

Unavailable

33

STOPPER, BEAD This part replaces 65270-46910.

65270-43D00

$58.75

34

NUT This part replaces 08310-12088.

08310-00087

$2.13

35

WASHER This part replaces 08322-11088.

08322-01087

$2.13
