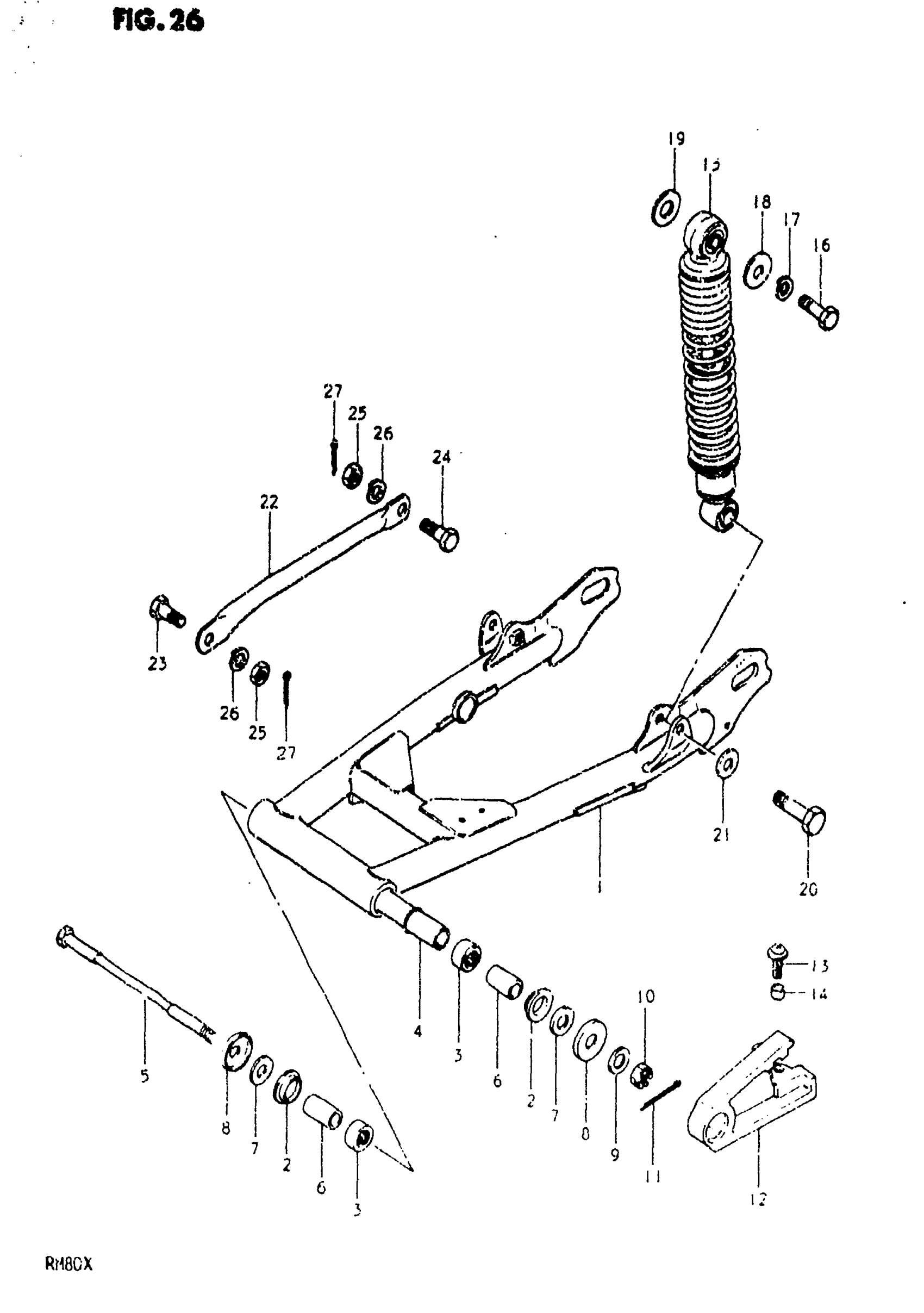

Suzuki RM80 (1981) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 4

61100-20840-08C

Unavailable

2

BUSH

61261-40201

Unavailable

3

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

4

SPACER, CENTER

61280-20300

Unavailable

5

SHAFT, PIVOT

61211-20300

Unavailable

6

SPACER

61251-40200

Unavailable

7

THRUST WASHER

08211-12282

$2.65

8

COVER SWGARM PIVOT This part replaces 61262-40200.

61262-03B01

$11.18

9

WASHER This part replaces 08322-11128.

08322-01127

$1.84

10

NUT This part replaces 08314-41128.

08314-4012A

$2.50

11

PIN This part replaces 04111-20308.

04111-2030A

$1.50

12

BUFFER, CHAIN DEFENCE

61273-20302

Unavailable

13

SCREW

61275-40200

Unavailable

14

SPACER,5.5X8X4 This part replaces 09180-05015.

09180-05046

$2.50

15

NO DESCRIPTION AVAILABLE This part replaces 62100-20300.

62100-20310

Unavailable

16

BOLT This part replaces 01107-06128.

01500-06127

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

19

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

20

BOLT This part replaces 09100-08165.

09103-08178

$4.69

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

TORQUC RINK, REAR (GOLD) This part replaces 64311-20300.

64311-20300-08C

Unavailable

23

BOLT, FRONT

09111-08015

$3.16

24

BOLT, REAR

09111-08013

$3.04

25

NUT

09140-08008

$1.49

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
