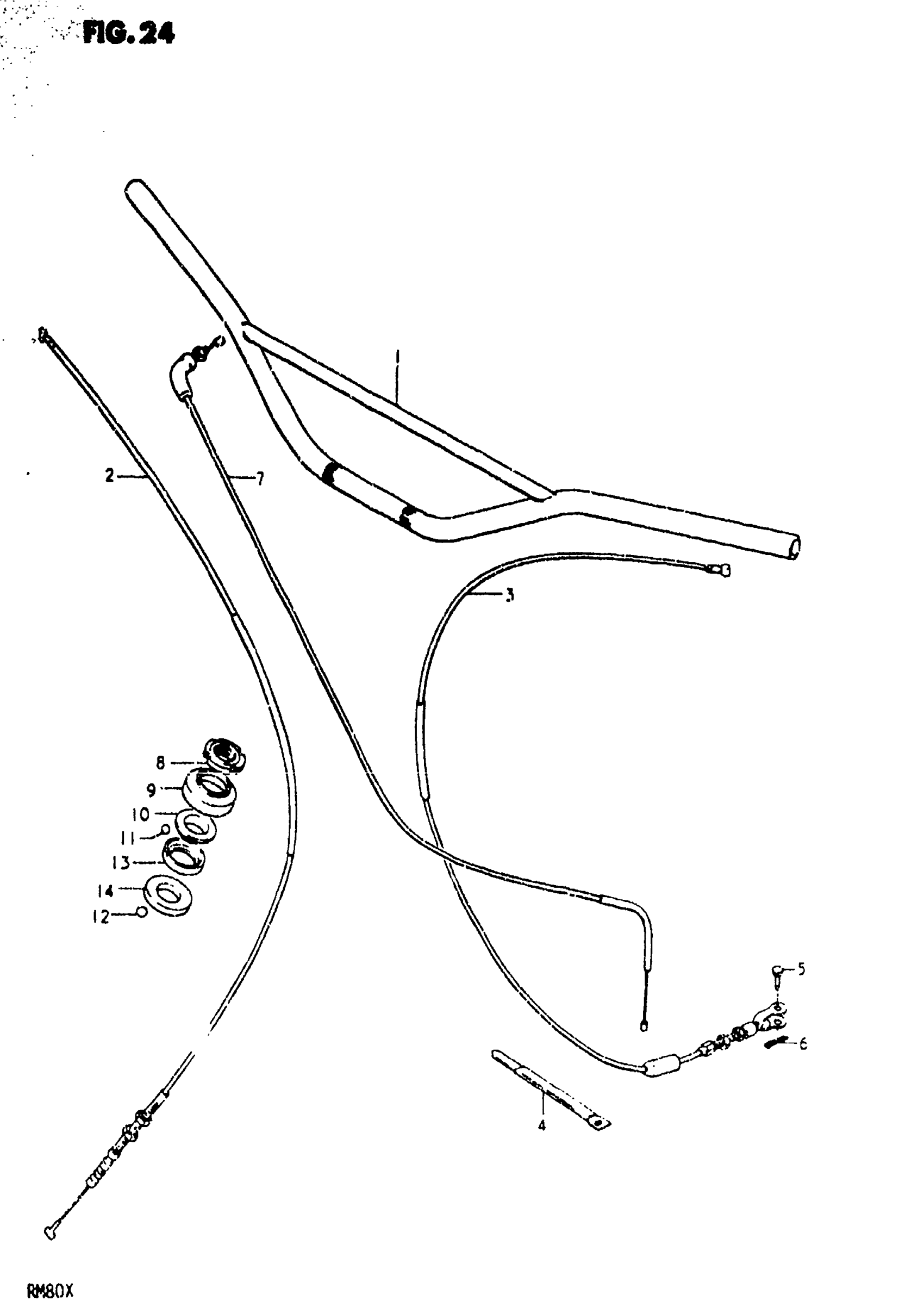

Suzuki RM80 (1981) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR (GOLD)

56110-46010-08C

Unavailable

2

CABLE, FRONT BRAKE

58110-46901

Unavailable

3

CABLE,CLUTCH This part replaces 58200-46002.

58200-46090

$14.75

4

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

5

PIN

09200-06004

$2.20

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

CABLE,THROTTLE This part replaces 58300-46002.

58300-46X01

Unavailable

8

NUT, STEERING STEM

51631-28000

$17.37

9

DUST SEAL,STEERING UPPER

51643-25001

$4.43

10

RACE,STEERING OUTER UPPER

51621-28000

$11.95

11

BALL, STEERING UPPER

06111-06003

$1.49

12

BALL, STEERING LOWER

06111-08003

$1.49

13

RACE,STEERING INNER UPPER

51611-20002

$11.95

14

RACE, STEERING INNER LOWER

51611-33002

$13.81
