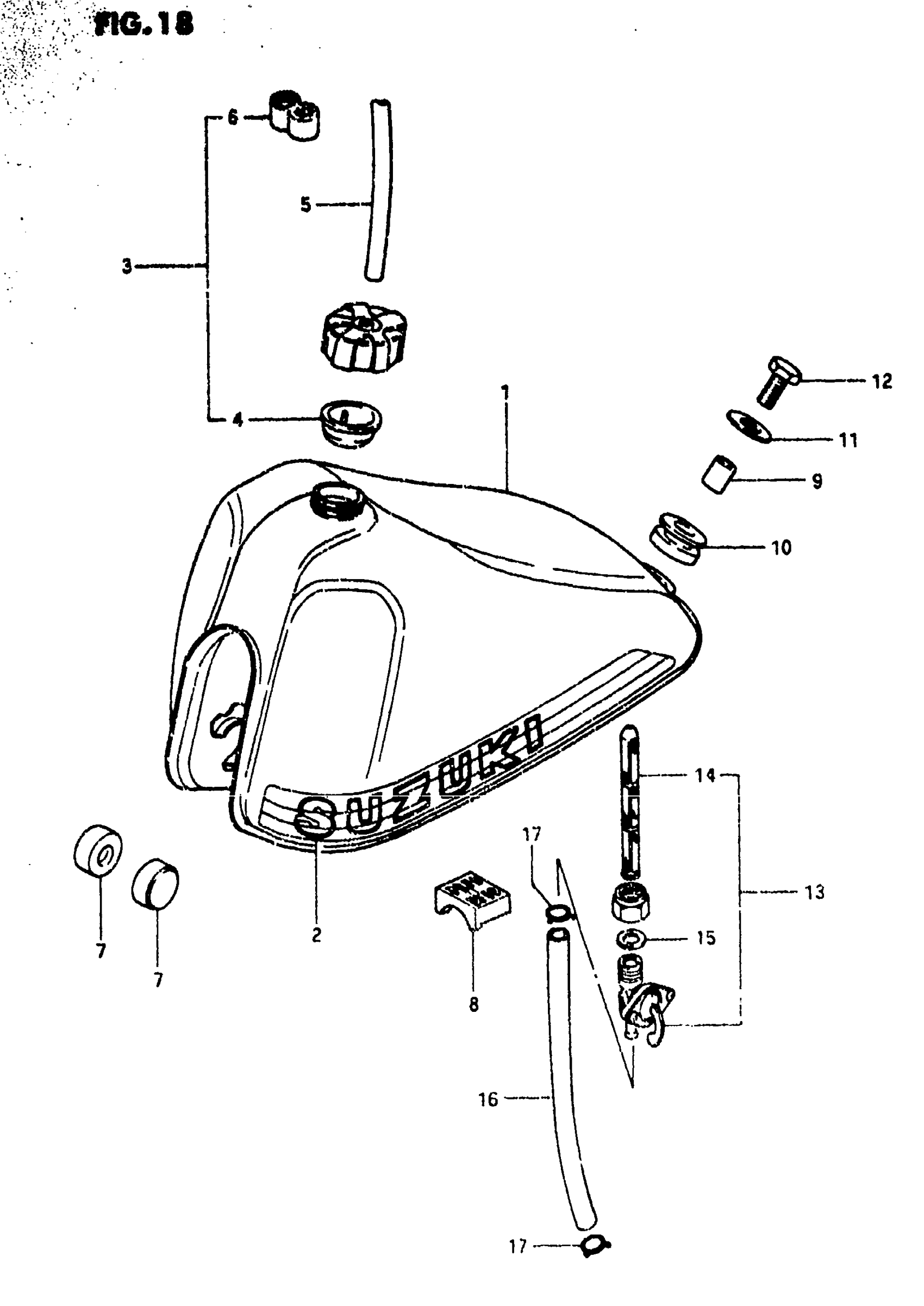

Suzuki RM80 (1981) FUEL TANK (RM80X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-20310-163.

44110-20300-163

Unavailable

2

TAPE SET, STRIPING

68110-20310-76P

Unavailable

3

CAP ASSY, FUEL TANK | Includes Item(s) 4 - 6

44200-46900

Unavailable

4

GASKET

44248-46900

Unavailable

5

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

6

CLAMP

44486-32101

$3.65

7

CUSHION, FRONT

09329-10013

Unavailable

8

CUSHION, REAR NO.1

44541-20301

Unavailable

9

SPACER 8.2X12X1 This part replaces 09180-08032.

09180-08143

$3.77

10

CUSHION, REAR NO.3

09320-11009

Unavailable

11

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

12

BOLT This part replaces 01107-08308.

01500-08307

$3.04

13

COCK ASSY,FUEL | Includes Item(s) 14 - 15 This part replaces 44300-40050.

44300-40051

Unavailable

14

FILTER

44330-19051

Unavailable

15

GASKET

44341-40050

Unavailable

16

HOSE(6X10X600) This part replaces 09343-06019.

09352-60104-600

$8.99

17

CLIP

09401-10401

$1.49
