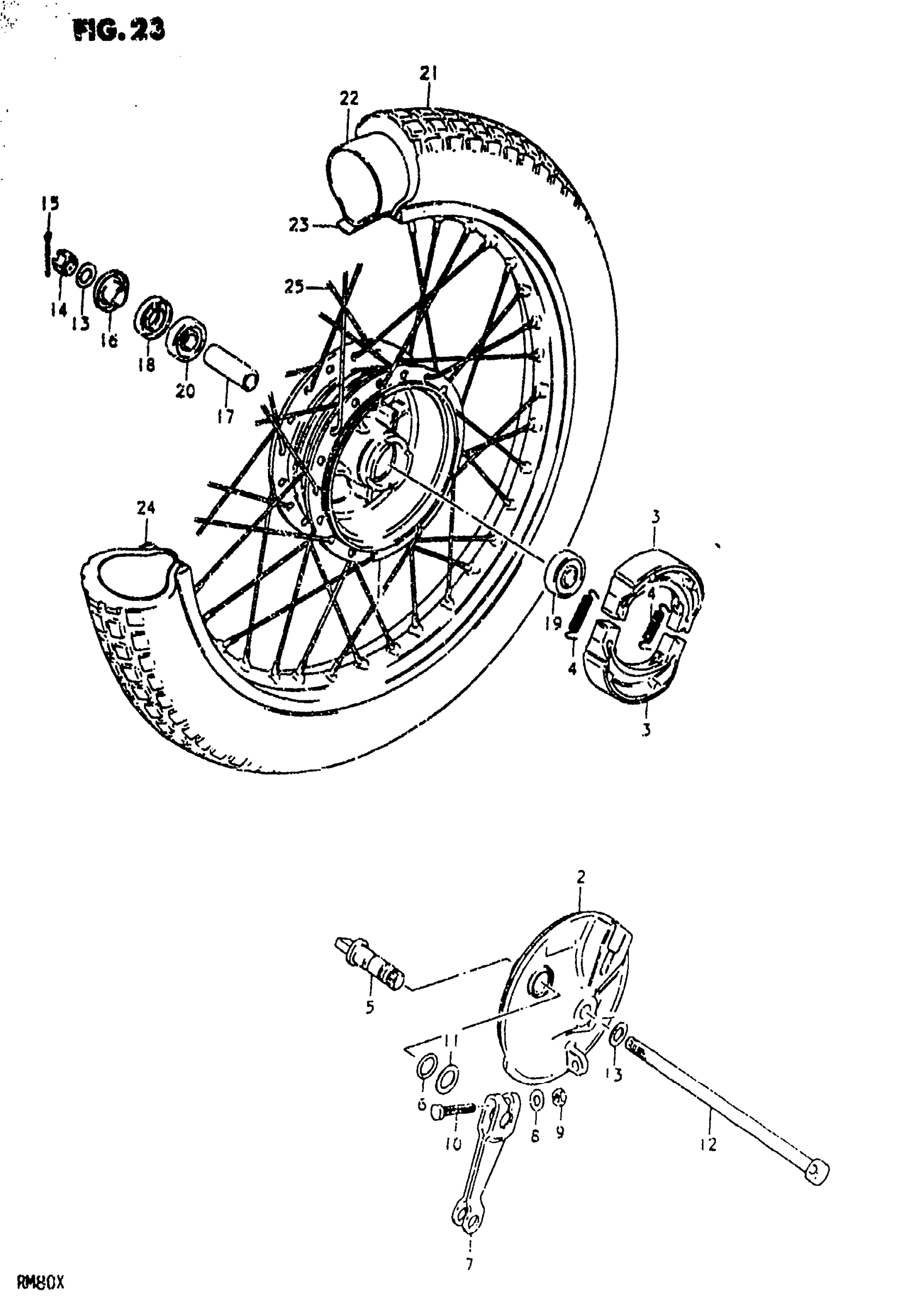

Suzuki RM80 (1981) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FRONT HUB | RM80T This part replaces 54110-20300.

54110-20301

Unavailable

1

DRUM, FRONT HUB | RM80X

54110-20301

Unavailable

2

PANEL, FRONT HUB

54210-46002

Unavailable

3

SHOE & SPRING S This part replaces 54410-43020.

54400-43880

$39.22

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM This part replaces 54441-26501.

54441-26503

Unavailable

6

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

7

LEVER, FR BRAKE CAM

54451-26500

$14.76

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08310-11068.

08310-00067

$2.13

10

BOLT

09100-06078

$2.38

11

WASHER This part replaces 09160-14001.

09160-14055

$2.39

12

NO DESCRIPTION AVAILABLE This part replaces 54711-43000.

54711-43001

Unavailable

13

WASHER This part replaces 08322-21108.

08322-01107

$2.15

14

NUT This part replaces 08314-31108.

08314-3110A

$1.99

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

SPACER, FR AXLE RH This part replaces 54740-26100.

54740-26101

$18.87

17

SPACER (10.2X16X51) This part replaces 09180-10005.

09180-10148

$8.18

18

OIL SEAL (15X31X5)

09284-15001

$4.73

19

BEARING This part replaces 08143-63007.

08143-6300B

$15.33

20

BEARING, RH

08113-62000

$13.63

21

TIRE, FRONT (70/100-17) | RM80T This part replaces 55100-46910.

55110-02B41

Unavailable

21

TIRE (2.75-17 4PR) | RM80X

55100-46911

Unavailable

22

NO DESCRIPTION AVAILABLE This part replaces 55200-09620.

65200-47C00

Unavailable

23

PROTECTOR, INNER TUBE This part replaces 55261-01010.

55261-02B40

$6.88

24

RIM, WHEEL

55311-20300

Unavailable

25

SPOKE SET

55320-20301

Unavailable
