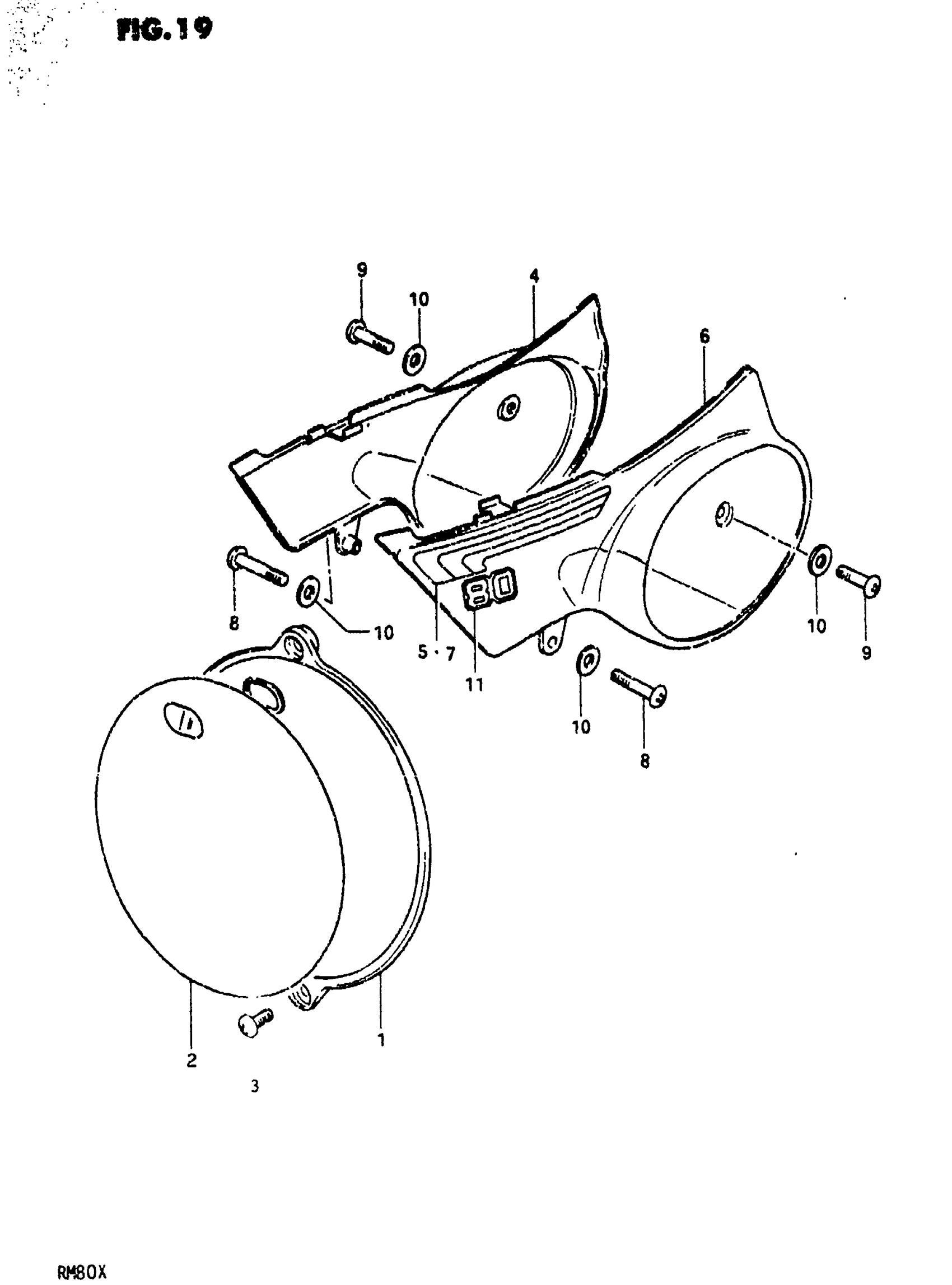

Suzuki RM80 (1981) FRAME COVER (RM80T) Diagram

#

Description
Price

1

PLATE, NUMBER FRONT

94911-46010

Unavailable

2

EMBLEM, NUMBER PLATE FRONT

68169-46010

Unavailable

3

SCREW

02142-05167

$1.49

4

COVER, FRAME RH (YELLOW)

47111-20300-163

Unavailable

5

TAPE, STRIPING RH

68136-20300-67H

Unavailable

6

COVER, FRAME LH (YELLOW)

47211-20300-163

Unavailable

7

TAPE, STRIPING LH

68146-20300-67H

Unavailable

8

SCREW (6X40) This part replaces 02142-06408.

02112-06407

$1.78

9

SCREW, NO.2

02142-06167

$1.49

10

WASHER This part replaces 09160-06007.

09160-06084

$1.78

11

EMBLEM F COVER This part replaces 68131-20300-64D.

68131-03400-163

Unavailable
