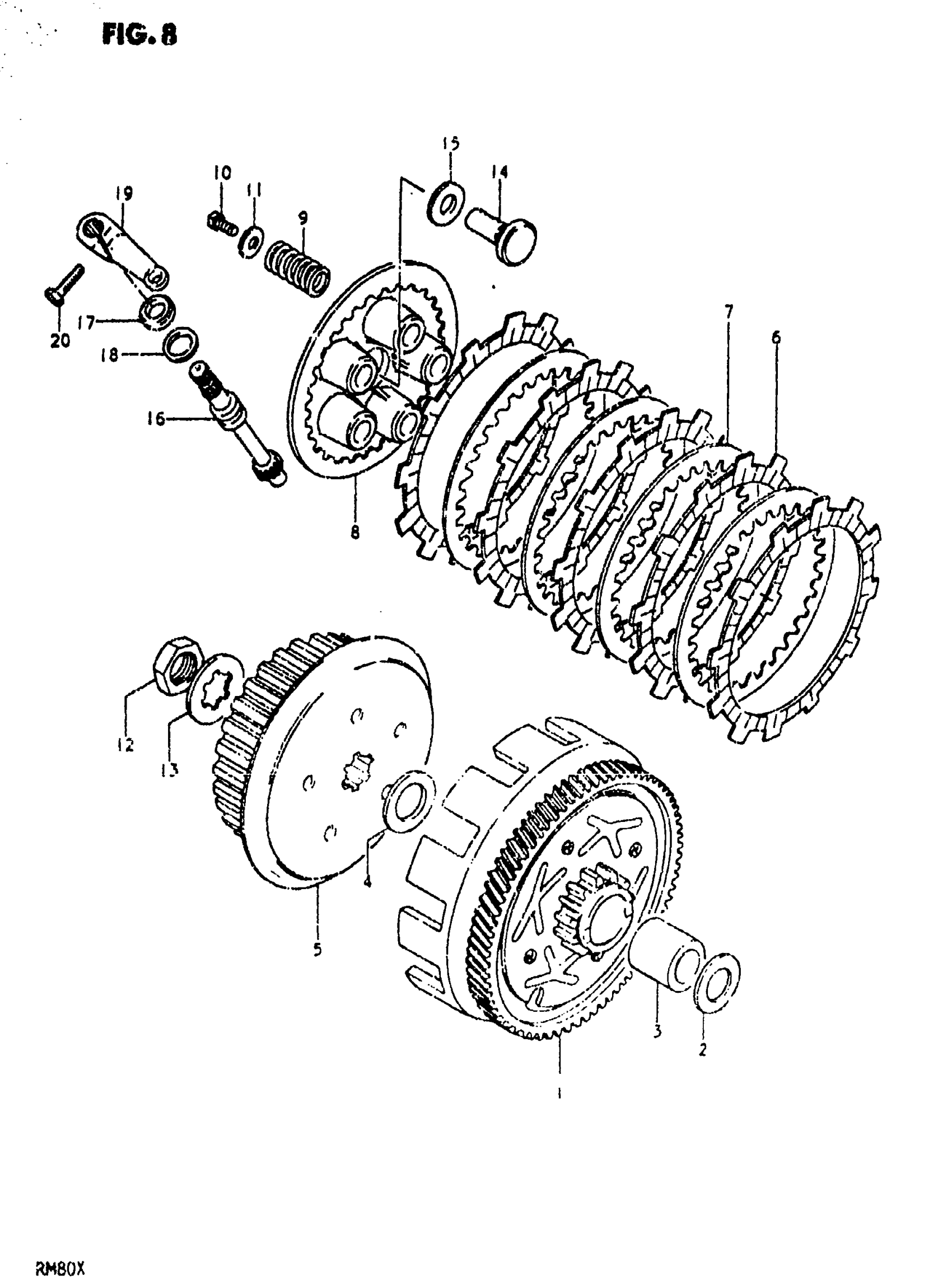

Suzuki RM80 (1981) CLUTCH Diagram

GEAR, PRIMARY DRIVEN | NT:73/17

21200-46901

Unavailable

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

SPACER

09180-17049

Unavailable

WASHER

08211-17282

$2.70

HUB, SLEEVE

21411-46901

Unavailable

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.73

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

DISC, PRESSURE This part replaces 21462-46900.

21462-02B41

$28.95

SPRING

09440-15008

$2.10

BOLT

09100-05002

$1.49

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

NUT This part replaces 09140-16001.

09140-16005

$3.75

WASHER

09167-17002

$1.91

RACK This part replaces 23165-28300.

23165-46000

$22.21

BEARING

09263-10002

$10.19

PINION, RELEASE

23261-41301

$43.68

OIL SEAL (10X17X5) This part replaces 09285-10002.

09285-10004

$3.37

WASHER (12.5X17X1) This part replaces 09160-12035.

09160-12086

$2.15

ARM, CLUTCH RELEASE This part replaces 23271-46000.

23271-46010

$28.97

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97
