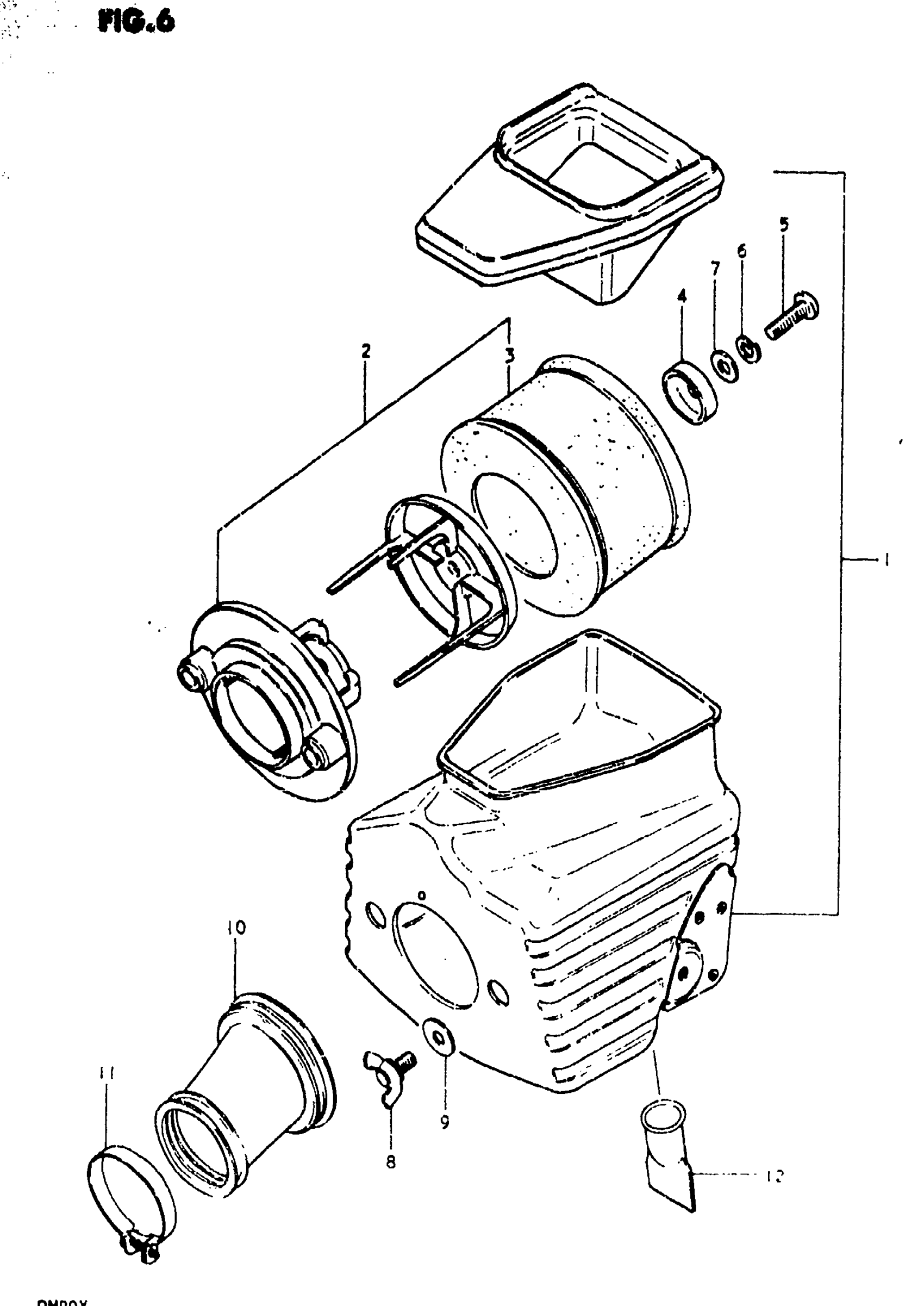

Suzuki RM80 (1981) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-20300

Unavailable

2

FILTER

13780-20300

Unavailable

3

ELEMENT

13781-20300

Unavailable

4

WASHER This part replaces 13792-40400.

13792-13A01

$4.34

5

SCREW This part replaces 02112-06258.

02112-06257

$1.78

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

WING BOLT

13911-20300

Unavailable

9

WASHER This part replaces 13912-20300.

13912-40410

Unavailable

10

HOSE, AIR OUTLET

13881-20300

Unavailable

11

CLAMP This part replaces 09402-52205.

09402-52306

$4.91

12

HOSE, DRAIN

13871-00020

Unavailable
