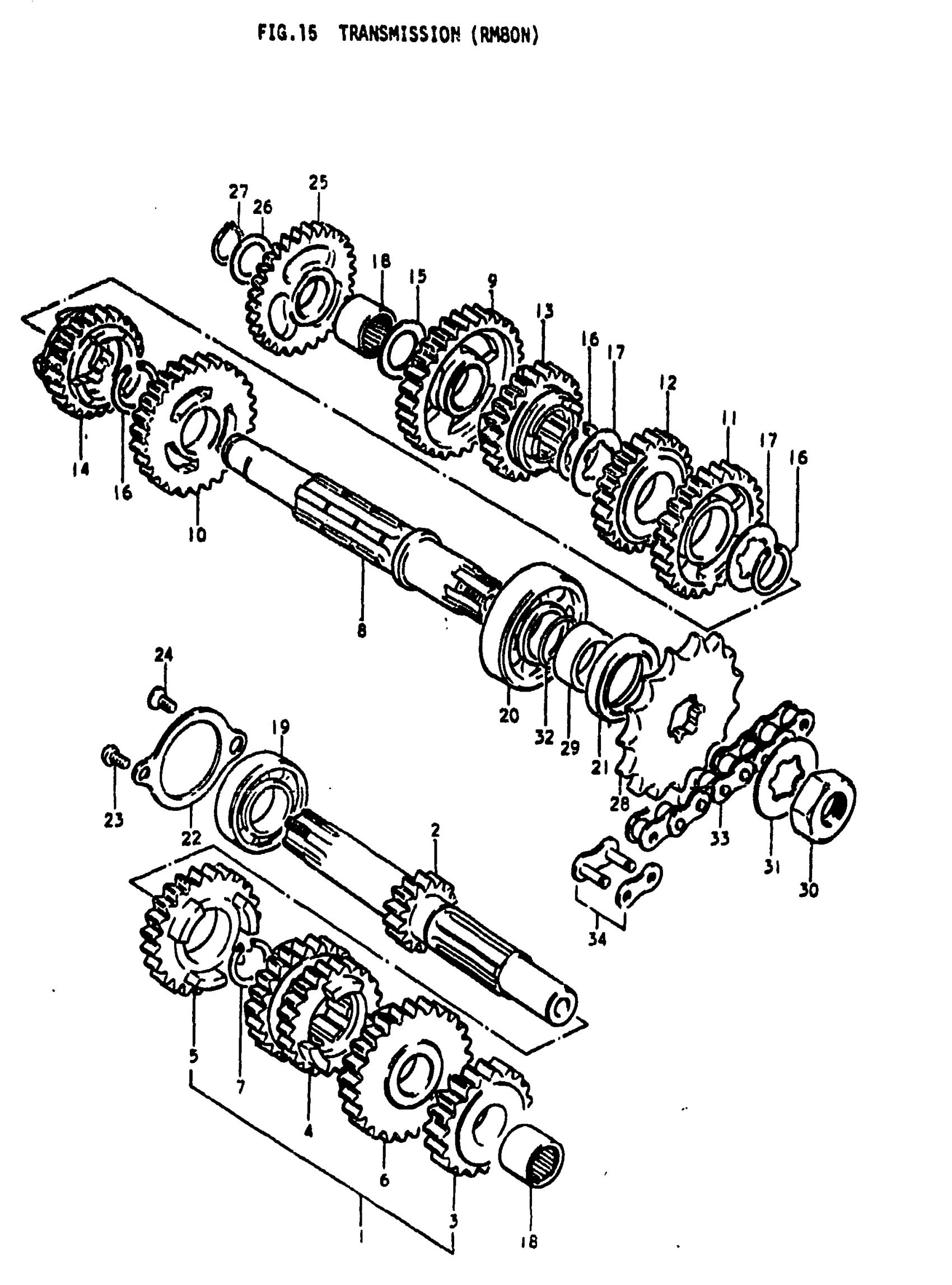

Suzuki RM80 (1979) TRANSMISSION (RM80N) Diagram

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-46910

Unavailable

COUNTERSHAFT | NT:14

24121-46900

Unavailable

GEAR, 2ND DRIVE | NT:18

24221-46910

Unavailable

GEAR, 3RD & 4TH DRIVE | NT:20 & 20

24231-46910

Unavailable

GEAR, 5TH DRIVE | NT:24

24251-46900

Unavailable

GEAR, 6TH DRIVE | NT:26

24261-46900

Unavailable

CIRCLIP

09380-17007

Unavailable

DRIVESHAFT

24131-46900

Unavailable

GEAR, 1ST DRIVEN | NT:36

24310-46900

Unavailable

GEAR, 2ND DRIVEN | NT:34

24321-46910

Unavailable

GEAR, 3RD DRIVEN | NT:30

24331-46910

Unavailable

GEAR, 4TH DRIVEN | NT:25

24341-46910

Unavailable

GEAR, 5TH DRIVEN | NT:26

24341-46000

Unavailable

GEAR, 6TH DRIVEN | NT:25

24361-46910

Unavailable

WASHER

09160-13006

Unavailable

CIRCLIP

09380-17007

Unavailable

WASHER

09167-17003

Unavailable

BEARING, COUNTER SHAFT, L This part replaces 09263-13001.

09263-13002

$15.67

BEARING, DRIVE SHAFT RH This part replaces 09262-17008.

09262-17023

$16.75

BEARING

08113-63030

$23.65

OIL SEAL

09283-21004

$6.73

HOLDER, BEARING

24741-46000

Unavailable

SCREW This part replaces 02112-06108.

02112-06107

$1.49

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

GEAR, KICK IDLE (NT:26) | NT:26 This part replaces 26260-46000.

26260-46001

Unavailable

WASHER

08211-12261

$2.50

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

SPROCKET,ENGINE | NT:14 This part replaces 27511-27400.

27511-26400

$24.57

SPROCKET, ENGINE | NT:13 OPT

27511-46000

$18.20

SPROCKET, ENGINE | NT:15 OPT

27511-27410

Unavailable

SPACER

09180-17050

Unavailable

NUT

09140-16002

$3.16

WASHER

09167-16001

$1.87

O RING

09280-17001

$1.49

CHAIN ASSY,DRIV | #428x110l; Includes Item(s) 34 This part replaces 27600-46950.

27600-46912-134

$70.38

JOINT, CHAIN

27620-46910

Unavailable
