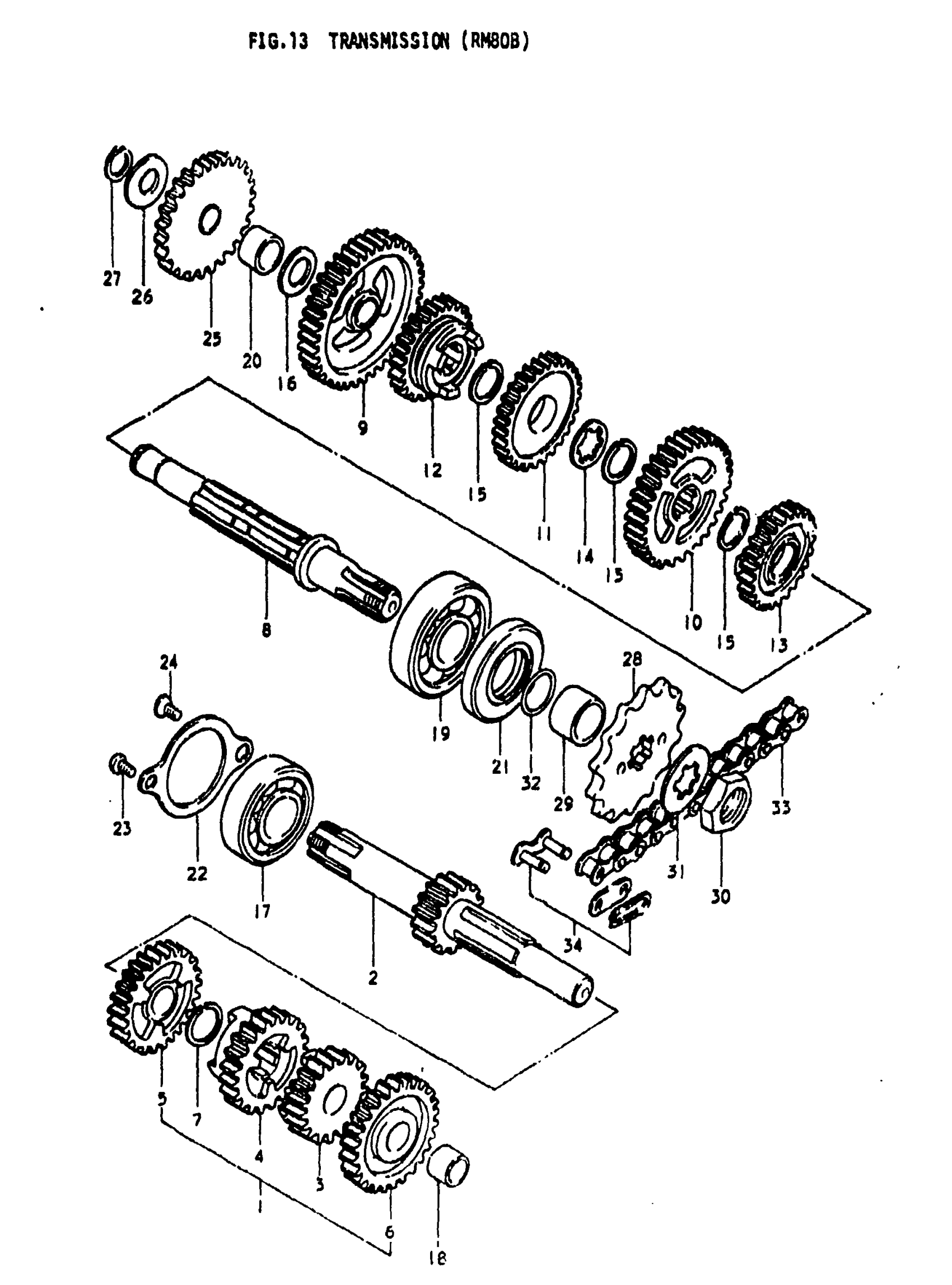

Suzuki RM80 (1979) TRANSMISSION (RM80B) Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-46000

Unavailable

2

COUNTERSHAFT | NT:12

24121-46000

Unavailable

3

GEAR, 2ND DRIVE (NT:17) | NT:17 TO 24220-46100 This part replaces 24221-46000.

24220-46100

Unavailable

4

NO DESCRIPTION AVAILABLE | NT:21 This part replaces 24231-46000.

24231-46010

Unavailable

5

GEAR, 4TH DRIVE | NT:24

24241-46000

Unavailable

6

GEAR, 5TH DRIVE (NT:26) | NT:26 This part replaces 24251-46000.

24251-46001

Unavailable

7

CIRCLIP

09380-17007

Unavailable

8

DRIVESHAFT

24131-46000

Unavailable

9

NO DESCRIPTION AVAILABLE | NT:38 This part replaces 24310-46000.

24310-46010

Unavailable

10

GEAR, 2ND DRIVEN | NT:33

24321-46000

Unavailable

11

GEAR, 3RD DRIVEN | NT:29

24331-46000

Unavailable

12

GEAR, 4TH DRIVEN | NT:26

24341-46000

Unavailable

13

GEAR, 5TH DRIVEN | NT:24

24351-46000

Unavailable

14

WASHER

09160-13006

Unavailable

15

CIRCLIP

09380-17007

Unavailable

16

WASHER

09167-17003

Unavailable

17

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

18

BUSHING

09303-13001

Unavailable

19

BEARING

08113-63030

$23.65

20

BUSHING

09303-13001

Unavailable

21

OIL SEAL

09283-21003

$6.17

22

HOLDER, BEARING

24741-46000

Unavailable

23

SCREW This part replaces 02112-06108.

02112-06107

$1.49

24

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

25

GEAR, KICK IDLE (NT:26) | NT:26 This part replaces 26260-46000.

26260-46001

Unavailable

26

WASHER

08211-12261

$2.50

27

CIRCLIP This part replaces 08331-11129.

08331-3112A

$1.78

28

SPROCKET, ENGINE | NT:13

27511-46000

$18.20

28

SPROCKET, ENGINE | NT:12 OPT

27511-46700

$15.26

28

SPROCKET,ENGINE | NT:14 OPT FOR ARREST OF NOISES This part replaces 27511-27400.

27511-26400

$24.57

29

SPACER

09180-17008

$8.58

30

NUT

09140-16002

$3.16

31

WASHER

09167-16001

$1.87

32

O RING

09280-17001

$1.49

33

CHAIN ASSY,DRIV | #428x13l; Includes Item(s) 34 This part replaces 27600-08010.

27600-46912-134

$70.38

34

JOINT (RK) This part replaces 27620-20210.

27620-40220

$11.07
