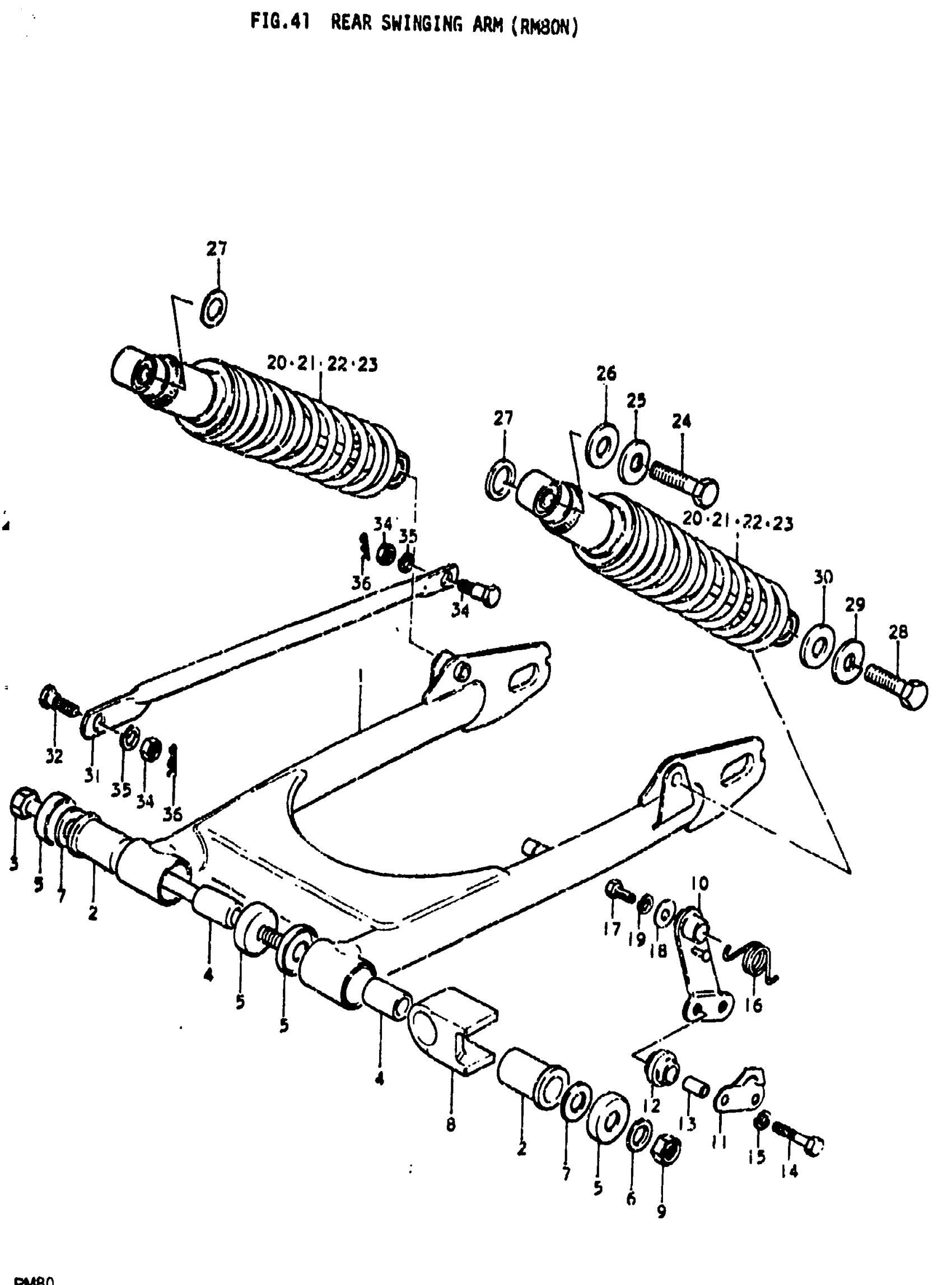

Suzuki RM80 (1979) REAR SWINGING ARM (RM80N) Diagram

#

Description
Price

1

SWINGING ARM, REAR | Includes Item(s) 2

61101-46820-08C

Unavailable

2

BUSHING

09307-18003

Unavailable

3

SHAFT, PIVOT

61211-25300

Unavailable

4

SPACER

61251-46910

Unavailable

5

COVER, DUST SEAL

61262-46910

Unavailable

6

WASHER This part replaces 08322-21108.

08322-01107

$2.15

7

THRUST WASHER

09160-10052

Unavailable

8

BUFFER, CHAIN DEFENSE

61273-46910

Unavailable

9

NUT This part replaces 08319-21108.

09159-10027

$3.10

10

TENTIONER, CHAIN

61350-46000

Unavailable

11

PLATE, CHAIN TENTIONER ROLLER

61352-41401

Unavailable

12

ROLLER This part replaces 61345-41100.

61345-41101

$5.83

13

SPACER

09180-06067

$2.59

14

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

SPRING

09448-22003

Unavailable

17

BOLT This part replaces 01107-06128.

01500-06127

$1.97

18

WASHER This part replaces 09160-06007.

09160-06084

$1.78

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

SHOCK ABSORBER ASSY, REAR | Includes Item(s) 21 - 23

62100-46910

Unavailable

21

SPRING

62211-46910

Unavailable

22

GUIDE, SPRING

62221-46040

Unavailable

23

SEAT, LOWER

62225-46040

Unavailable

24

BOLT This part replaces 01107-06128.

01500-06127

$1.97

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

27

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

28

BOLT 10X 40 This part replaces 09100-10096.

09100-10184

$3.16

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

30

WASHER This part replaces 08322-11108.

08322-01107

$2.15

31

NO DESCRIPTION AVAILABLE This part replaces 64311-46000.

64311-46000-019

Unavailable

32

BOLT

09111-08015

$3.16

33

BOLT

09111-08013

$3.04

34

NUT

09140-08008

$1.49

35

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

36

CLIP This part replaces 09385-10001.

09385-10005

$1.56
