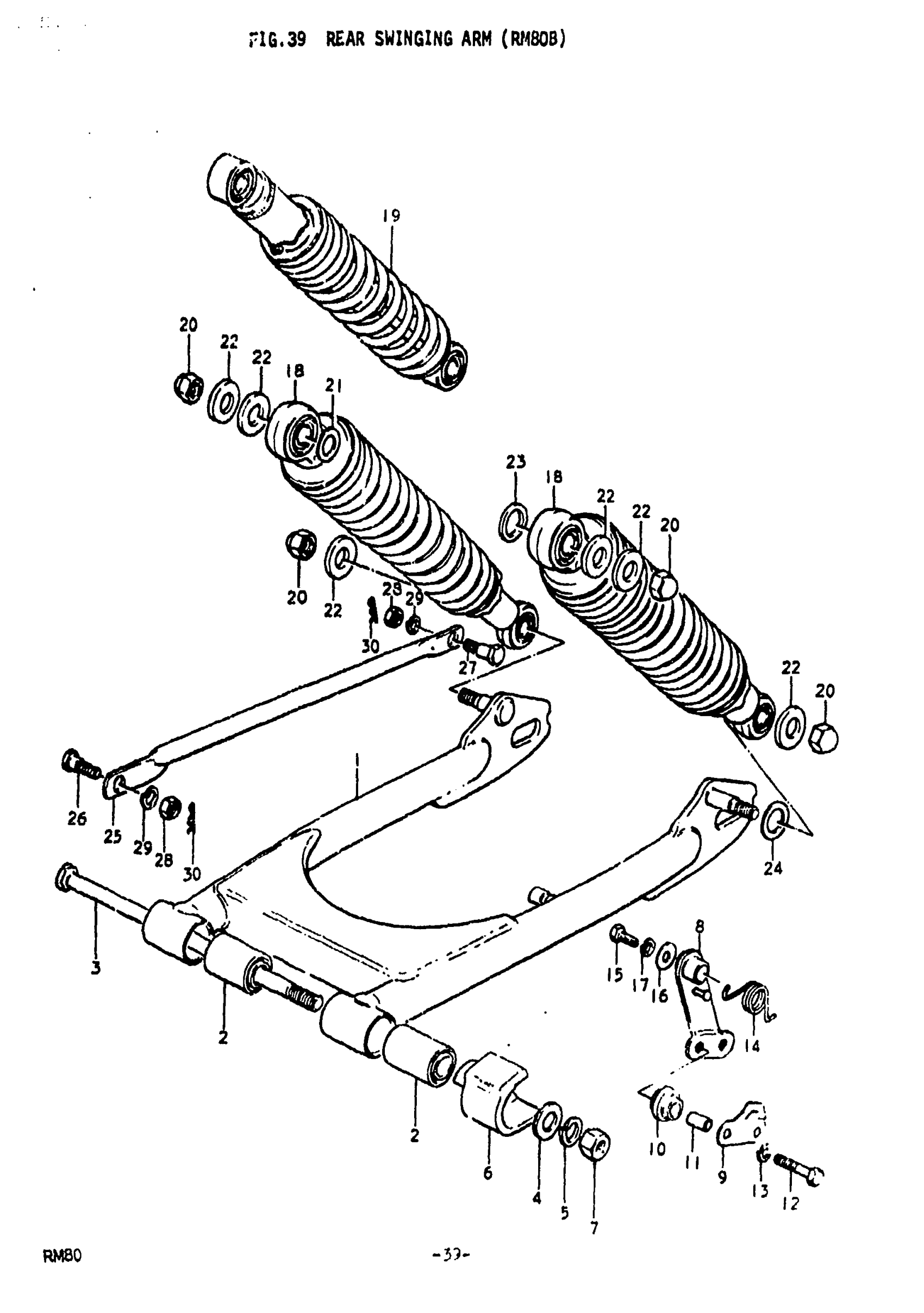

Suzuki RM80 (1979) REAR SWINGING ARM (RM80B) Diagram

#

Description
Price

1

SWINGING ARM, REAR | Includes Item(s) 2

61100-46811-019

Unavailable

2

BUSHING

09319-10024

$11.28

3

SHAFT,RR SWGARM This part replaces 61211-46000.

61211-4600V

$21.65

4

WASHER This part replaces 08322-21108.

08322-01107

$2.15

5

LOCK WASHER This part replaces 08321-21106.

08321-0110A

$1.84

6

BUFFER CHAIN DE This part replaces 61273-46000.

61273-46001

$20.84

7

NUT This part replaces 08310-12108.

08310-00107

$2.19

8

TENTIONER, CHAIN | OPT

61350-46000

Unavailable

9

PLATE, CHAIN TENTIONER ROLLER | OPT This part replaces 61352-41400.

61352-41401

Unavailable

10

ROLLER | OPT This part replaces 61345-41100.

61345-41101

$5.83

11

SPACER | OPT

09180-06067

$2.59

12

BOLT, REAR | OPT This part replaces 01107-06308.

01500-06307

$2.48

13

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

14

SPRING | OPT

09448-22003

Unavailable

15

BOLT | OPT This part replaces 01107-06128.

01500-06127

$1.97

16

WASHER | OPT This part replaces 09160-06007.

09160-06084

$1.78

17

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

18

SHOCK ABSORBER ASSY, REAR | Includes Item(s) 18 - 18

62100-46030

Unavailable

18

SPRING

62211-46030

Unavailable

18

SEAT, LOWER

62249-31030

Unavailable

18

SEAT, UPPER

62231-46030

Unavailable

19

SHOCK ABSORBER ASSY, REAR | OPT; Includes Item(s) 19 - 19

62100-46730

Unavailable

19

SPRING | OPT

62211-46730

Unavailable

19

SEAT, UPPER | OPT

62249-46730

Unavailable

19

SEAT, LOWER | OPT

62225-46730

Unavailable

20

NUT This part replaces 08313-11108.

08313-10107

$2.50

21

WASHER This part replaces 08322-11128.

08322-01127

$1.84

22

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

23

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

$3.29

24

WASHER, LOWER INNER

09160-12011

$1.54

25

NO DESCRIPTION AVAILABLE This part replaces 64311-46000.

64311-46000-019

Unavailable

26

BOLT

09111-08015

$3.16

27

BOLT

09111-08013

$3.04

28

NUT

09140-08008

$1.49

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

CLIP This part replaces 09385-10001.

09385-10005

$1.56
