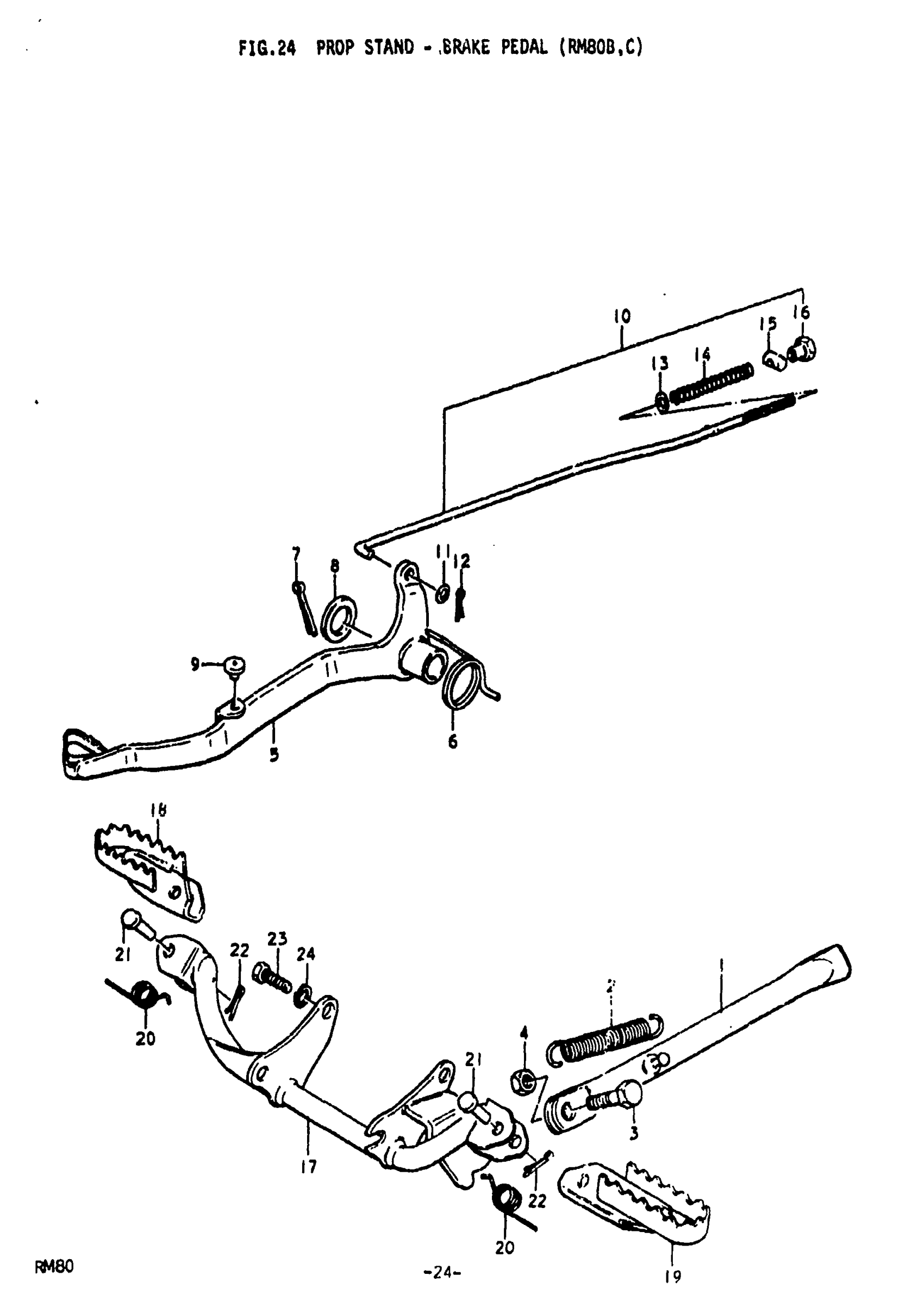

Suzuki RM80 (1979) PROP STAND - BRAKE PEDAL (RM80B Diagram

STAND, PROP | B,C; L:223 This part replaces 42310-46000.

42310-46101

Unavailable

STAND, PROP | C; L:245 This part replaces 42310-46100.

42310-46101

Unavailable

SPRING | B,C This part replaces 09443-14005.

09443-14017

$3.04

BOLT | B,C This part replaces 09100-10007.

09100-10287

$3.48

NUT | B,C This part replaces 08310-22108.

08310-00107

$2.19

PEDAL, BRAKE | B This part replaces 43110-46000.

43110-46502

Unavailable

PEDAL, BRAKE | C This part replaces 43110-46900.

43110-46502

Unavailable

SPRING | B,C This part replaces 09448-32004.

09448-32004-XC0

Unavailable

PIN | B,C This part replaces 04111-30308.

04111-3030A

$1.49

WASHER | B,C

09160-15002

$1.91

STOP, BRAKE PEDAL | B,C

43155-30500

Unavailable

ROD ASSY, REAR BRAKE | B,C; Includes Item(s) 11 - 16

43300-46000

Unavailable

WASHER | B,C This part replaces 08322-21058.

08322-01057

$2.13

COTTER PIN | B,C This part replaces 04111-20208.

04111-2020A

$1.49

WASHER | B,C This part replaces 08322-21068.

08322-01067

$2.13

SPRING | B,C

09440-09004

$2.20

PIN | B,C

09209-11002

$2.19

.NUT | B,C This part replaces 09150-06001.

09150-06010

$3.10

NO DESCRIPTION AVAILABLE | B,C This part replaces 43510-46000.

43510-46700

Unavailable

FOOTREST, RH (BLACK) | B,C This part replaces 43550-46000.

43550-46000-019

$20.27

FOOTREST, LH (BLACK) | B,C This part replaces 43560-46000.

43560-46000-019

$20.97

SPRING | B,C

09448-14012

$3.04

PIN | B,C

09200-06002

Unavailable

COTTER PIN | B,C This part replaces 04111-20208.

04111-2020A

$1.49

PLUG, DRAIN | B,C This part replaces 01107-08168.

01500-0816B

$2.50

.LOCK WASHER | B,C This part replaces 08321-21088.

08321-01087

$2.13
