1979 Suzuki RM80 Piston - Crankshaft (RM80C Diagram

← All diagrams

Find the part on the Piston - Crankshaft (RM80C diagram for your 1979 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

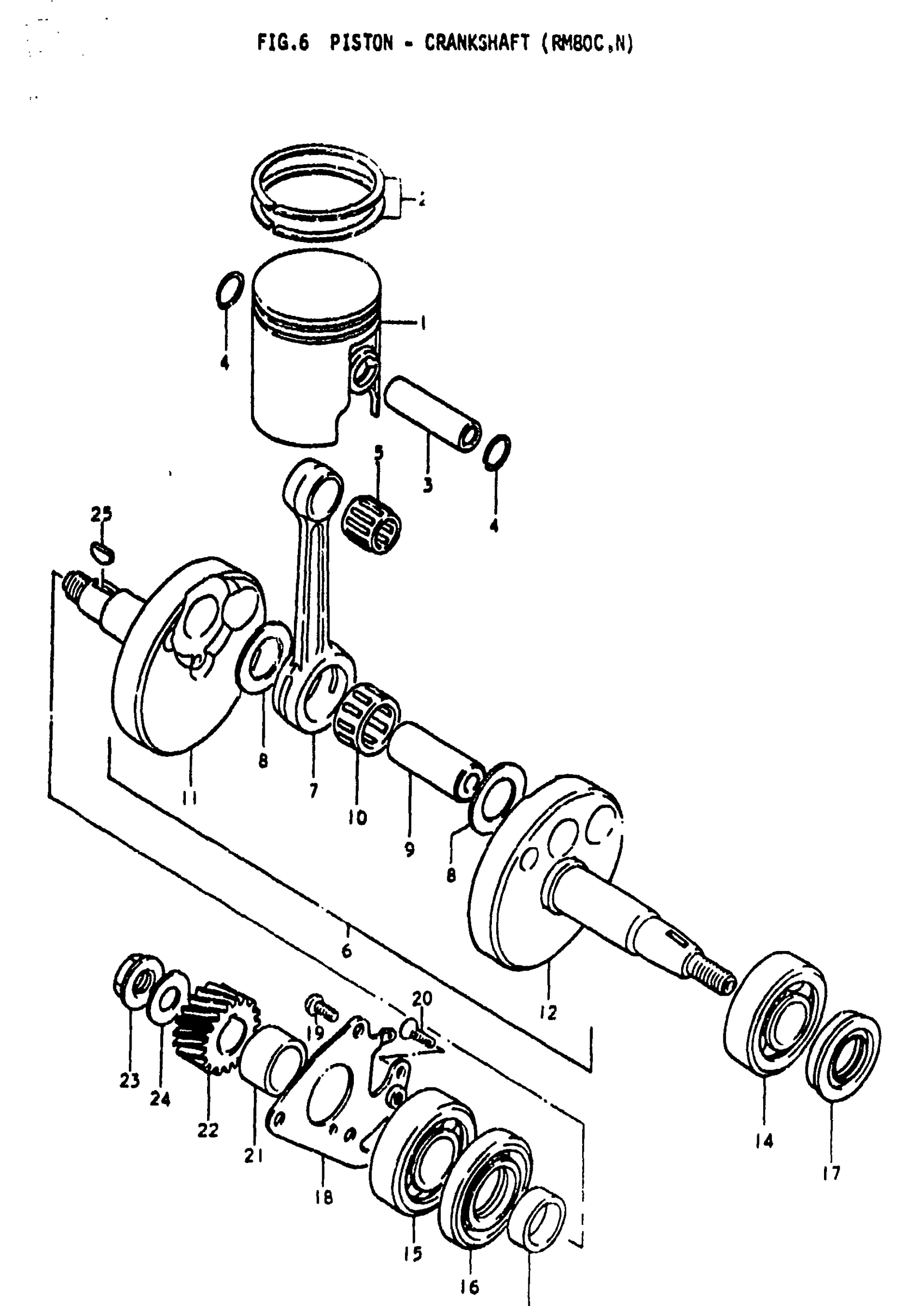

1979 Suzuki RM80 Piston - Crankshaft (RM80C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD) | C,N This part replaces 12110-46001.

12110-46002

1
Out of stock

1

NO DESCRIPTION AVAILABLE | C,N; OS:0.5 OPT This part replaces 12110-46001-050.

12103-46810-050

1
Out of stock

1

NO DESCRIPTION AVAILABLE | C,N; OS:1.0 OPT This part replaces 12110-46001-100.

12104-46820-100

1
Out of stock

1

PISTON (OS:1.5) | C,N; OS:1.5 OPT This part replaces 12110-46001-150.

12110-46002-150

1
Out of stock

2

RING SET, PISTON | C,N

12140-46000

1
Out of stock

2

RING SET, PISTON | C,N; OS:0.5 OPT

12140-46000-050

1
Out of stock

2

RING SET, PISTON | C,N; OS:1.0 OPT

12140-46000-100

1
Out of stock

2

RING SET, PISTON | N; OS:1.5 OPT

12140-46000-150

1
Out of stock

3

PIN, PISTON | C,N This part replaces 12151-25000.

12151-35400

1
Out of stock

4

SNAP RING | C,N

09381-12001

2
Out of stock

5

BEARING (12X16X16) | C,N This part replaces 09263-12003.

09263-12023

1
Out of stock

6

CRANKSHAFT ASSY | C This part replaces 12200-46900.

12200-46911

1
Out of stock

6

CRANKSHAFT ASSY | N; Includes Item(s) 7 - 13 This part replaces 12200-46910.

12200-46911

1
Out of stock

7

ROD, CONNECTING | C,N This part replaces 12161-14000.

12161-14001

1
Out of stock

8

WASHER | C,N; 19x32x1 This part replaces 09160-17005.

09160-17022

2
Out of stock

9

PIN, CRANK | C,N This part replaces 12211-46900.

12211-46000

1
Out of stock

10

BEARING (17X23X14) | C This part replaces 09263-17010.

09263-17022

1
Out of stock

10

BEARING | N This part replaces 09263-17013.

09263-17016

1
Out of stock

11

CRANKSHAFT, RH | C,N

12221-46900

1
Out of stock

12

CRANKSHAFT, LH | C This part replaces 12261-46900.

12261-46902

1
Out of stock

12

CRANKSHAFT, LH | N This part replaces 12261-46901.

12261-46902

1
Out of stock

13

SPACER, CRANKSHAFT RH | C,N

09180-20021

1
Out of stock

14

BEARING, DRIVE SHAFT LH | C,N; 20x47x4 This part replaces 09262-20019.

09262-20069

1
Out of stock

15

BEARING, RH (20X47X14) | C,N This part replaces 09262-20045.

09262-20064

1
Out of stock

16

OIL SEAL, LH | C This part replaces 09283-26012.

09283-26015

1
Out of stock

16

OIL SEAL, LH | N This part replaces 09283-26013.

09283-26015

1
Out of stock

17

OIL SEAL, RH | C,N This part replaces 09283-20011.

09283-20034

1
Out of stock

18

RETAINER, BEARING RH | C,N

12541-46900

1
Out of stock

19

SCREW | C,N This part replaces 02112-06128.

02112-06127

2
Out of stock

20

SCREW | C,N This part replaces 02122-06128.

02122-06127

2
Out of stock

21

SPACER, PRIMARY DRIVE GEAR | C,N

09180-20059

1
Out of stock

22

GEAR, PRIMARY DRIVE | C,N

21111-46000

1
Out of stock

23

NUT | C,N

09159-12005

1
Out of stock

24

WASHER | C,N

09164-12016

1
Out of stock

25

KEY | C,N

08341-31039

1
Out of stock
