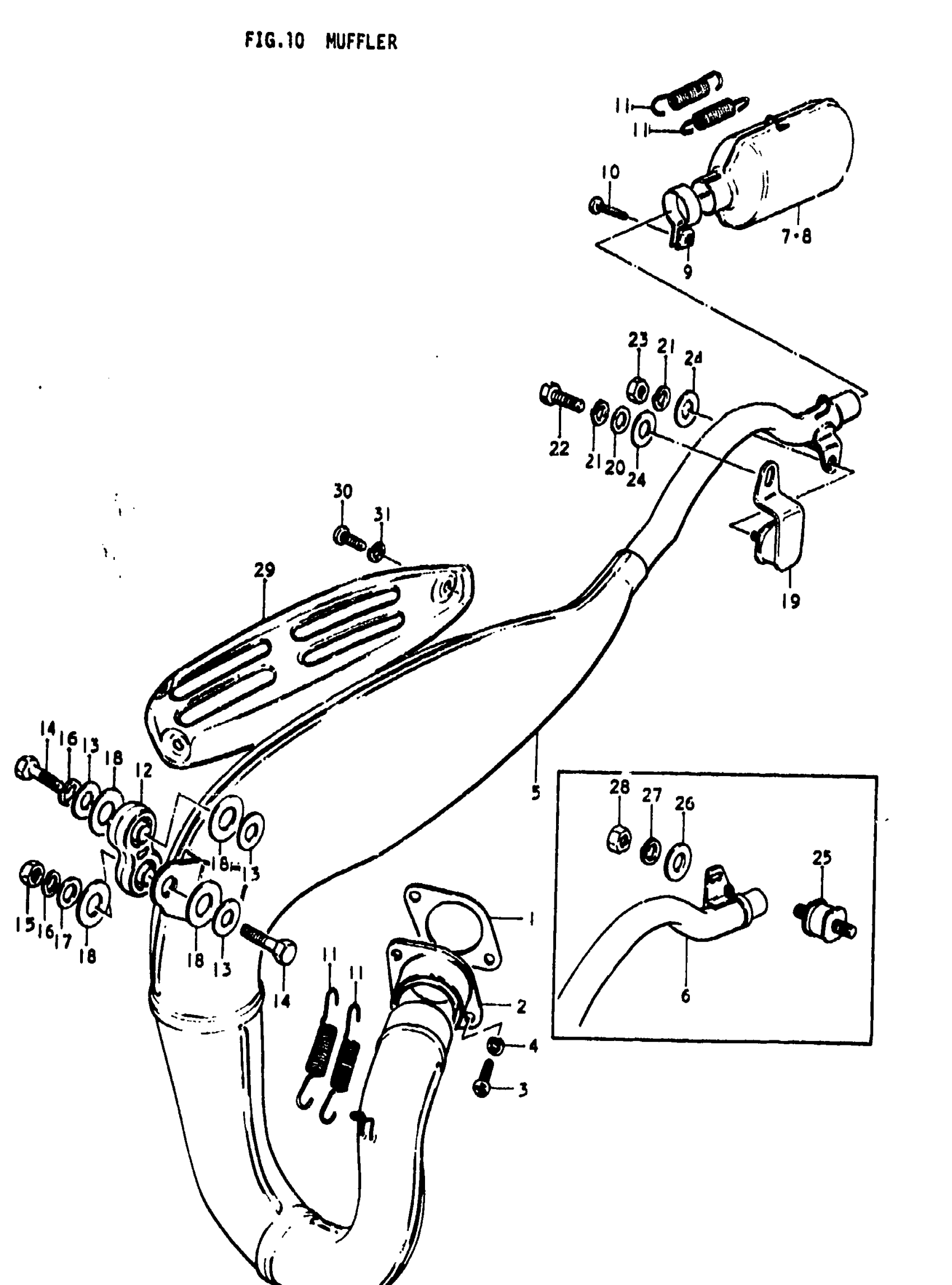

Suzuki RM80 (1979) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST | B,C,N This part replaces 14181-46000.

14181-46001-H17

Unavailable

2

FLANGE, EXHAUST PIPE | B,C,N

14170-46000

Unavailable

3

SCREW | B,C,N This part replaces 02112-06168.

02112-06167

$1.46

4

LOCK WASHER | B,C,N This part replaces 08321-21068.

08321-01067

$1.89

5

MUFFLER, 1ST | B

14310-46000

Unavailable

5

NO DESCRIPTION AVAILABLE | C This part replaces 14310-46900.

14310-46900-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | N This part replaces 14310-46910.

14310-46910-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | B,C This part replaces 14330-46000.

14330-46000-H01

Unavailable

8

NO DESCRIPTION AVAILABLE | N This part replaces 14330-46900.

14330-46900-H01

Unavailable

9

CLAMP | B,C,N

09402-25601

Unavailable

10

BOLT | B,C,N This part replaces 09128-06006.

09128-06057

$1.70

11

SPRING | B,C,N

09443-11002

$2.88

12

DAMPER, MUFFLER | B,C,N

14770-40000

Unavailable

13

WASHER | B,C,N; 8.5x23x1.2 This part replaces 09160-08035.

09160-08130

$2.10

14

BOLT | B,C,N This part replaces 01107-08358.

01500-0835B

$2.82

15

NUT | B,C,N This part replaces 08310-12088.

08310-00087

$1.91

16

.LOCK WASHER | B,C,N This part replaces 08321-21088.

08321-01087

$1.89

17

WASHER | B,C,N This part replaces 08322-11088.

08322-01087

$1.92

18

WASHER | B,C,N

09161-13001

Unavailable

19

DAMPER, MUFFLER SUPPORT REAR | B,C

14770-46000

Unavailable

20

WASHER | B,C This part replaces 08322-11088.

08322-01087

$1.92

21

.LOCK WASHER | B,C This part replaces 08321-21088.

08321-01087

$1.89

22

PLUG, DRAIN | B,C This part replaces 01107-08168.

01500-0816B

$2.57

23

NUT | B,C This part replaces 08310-12088.

08310-00087

$1.91

24

WASHER (8.5X20X1.6) | B,C This part replaces 09160-08010.

09160-08054

$1.46

25

DAMPER, MUFFLER SUPPORT REAR | N

14770-41600

Unavailable

26

WASHER | N This part replaces 08322-11088.

08322-01087

$1.92

27

.LOCK WASHER | N This part replaces 08321-21088.

08321-01087

$1.89

28

NUT | N This part replaces 08310-12088.

08310-00087

$1.91

29

COVER, MUFFLER | B,C,N

14781-46000

Unavailable

30

SCREW | B,C,N This part replaces 02112-06088.

02112-06087

$1.49

31

LOCK WASHER | B,C,N This part replaces 08321-21068.

08321-01067

$1.89
