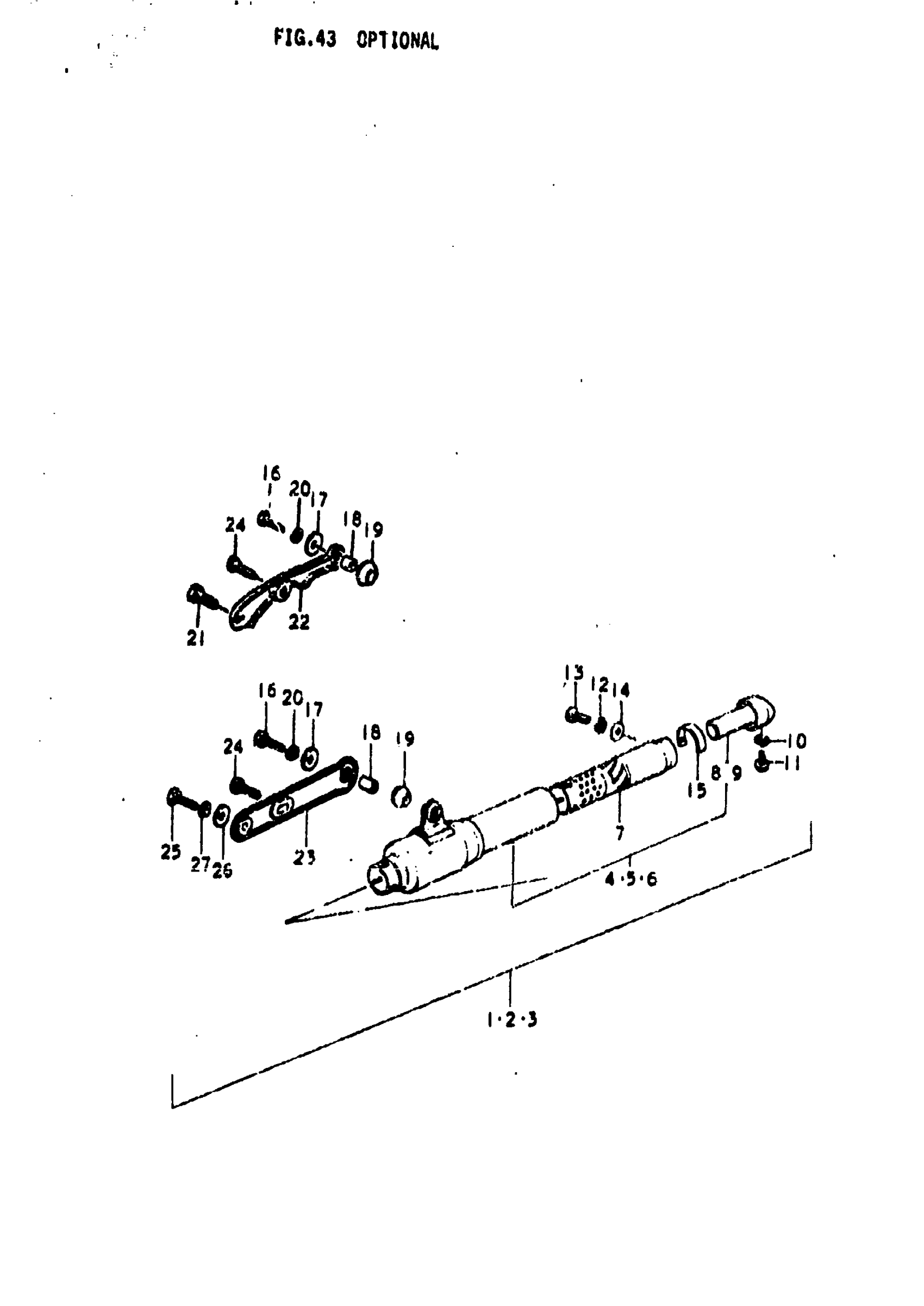

Suzuki RM80 (1979) OPTIONAL Diagram

#

Description
Price

1

2ND MUFFLER & AIR CLEANER CAP | B; FOR ARREST OF NOISESB; FOR ARREST OF NOISES This part replaces 14300-46811.

14300-46820

Unavailable

2

2ND MUFFLER & AIR CLEANER CAP | C; FOR ARREST OF NOISESC; FOR ARREST OF NOISES

14300-46820

Unavailable

3

2ND MUFFLER & AIR CLEANER CAP | N; FOR ARREST OF NOISESN; FOR ARREST OF NOISES; Includes Item(s) 4 - 23

14300-46830

Unavailable

4

MUFFLER ASSY, 2ND | B; FOR ARREST OF NOISES This part replaces 14303-46700.

14303-46701

Unavailable

5

MUFFLER ASSY, 2ND | C; FOR ARREST OF NOISES

14303-46701

Unavailable

6

NO DESCRIPTION AVAILABLE | N; FOR ARREST OF NOISES This part replaces 14303-46760.

14303-20310-H01

Unavailable

7

BODY, ARROSTOR | B,C,N; FOR ARREST OF NOISES

14810-38601

Unavailable

8

TUBE, CLEAN OUT | B; FOR ARREST OF NOISES

14850-38601

Unavailable

9

TUBE, CLEAN OUT | C,N; FOR ARREST OF NOISES

14850-48000

Unavailable

10

LOCK WASHER | B,C,N; FOR ARREST OF NOISES This part replaces 08321-21058.

08321-0105A

$1.84

11

SCREW | B,C,N; FOR ARREST OF NOISES This part replaces 02112-05088.

02112-05087

$1.49

12

LOCK WASHER | B,C,N; FOR ARREST OF NOISES This part replaces 08321-21068.

08321-01067

$2.13

13

SCREW | B,C,N; FOR ARREST OF NOISES

09128-06013

$1.49

14

WASHER | B,C,N; FOR ARREST OF NOISES This part replaces 08322-21068.

08322-01067

$2.13

15

BAND, ARRESTOR | B,C,N; FOR ARREST OF NOISES

14843-38600

Unavailable

16

BOLT | B,C; FOR ARREST OF NOISES This part replaces 01107-06258.

01500-06257

$1.97

16

BOLT | N; FOR ARREST OF NOISES This part replaces 01107-06208.

01500-06207

$2.28

17

WASHER, FRONT | B,C,N; FOR ARREST OF NOISES This part replaces 09160-06004.

09160-06134

$1.91

18

SPACER, 6.5X10X11 | B,C,N; FOR ARREST OF NOISES This part replaces 09180-06021.

09180-06288

$2.06

19

DAMPER, MUFFLER 2ND | B,C,N; FOR ARREST OF NOISES

14771-41200

Unavailable

20

LOCK WASHER | B,C,N; FOR ARREST OF NOISES This part replaces 08321-21068.

08321-01067

$2.13

21

BOLT, REAR | B,C; FOR ARREST OF NOISES This part replaces 01107-08208.

01500-08207

$2.53

22

BRACKET, MUFFLER HANGER | B,C; FOR ARREST OF NOISES

14470-46700

Unavailable

23

BRACKET, MUFFLER HANGER | N; FOR ARREST OF NOISES

14470-46710

Unavailable

24

BOLT | B,C,N; FOR ARREST OF NOISES This part replaces 01107-06258.

01500-06257

$1.97

25

BOLT | N; FOR ARREST OF NOISES This part replaces 01107-06208.

01500-06207

$2.28

26

WASHER (6.5X20X1.6) | N; FOR ARREST OF NOISES This part replaces 09160-06020.

09160-06066

$1.89

27

LOCK WASHER | N; FOR ARREST OF NOISES This part replaces 08321-21068.

08321-01067

$2.13
