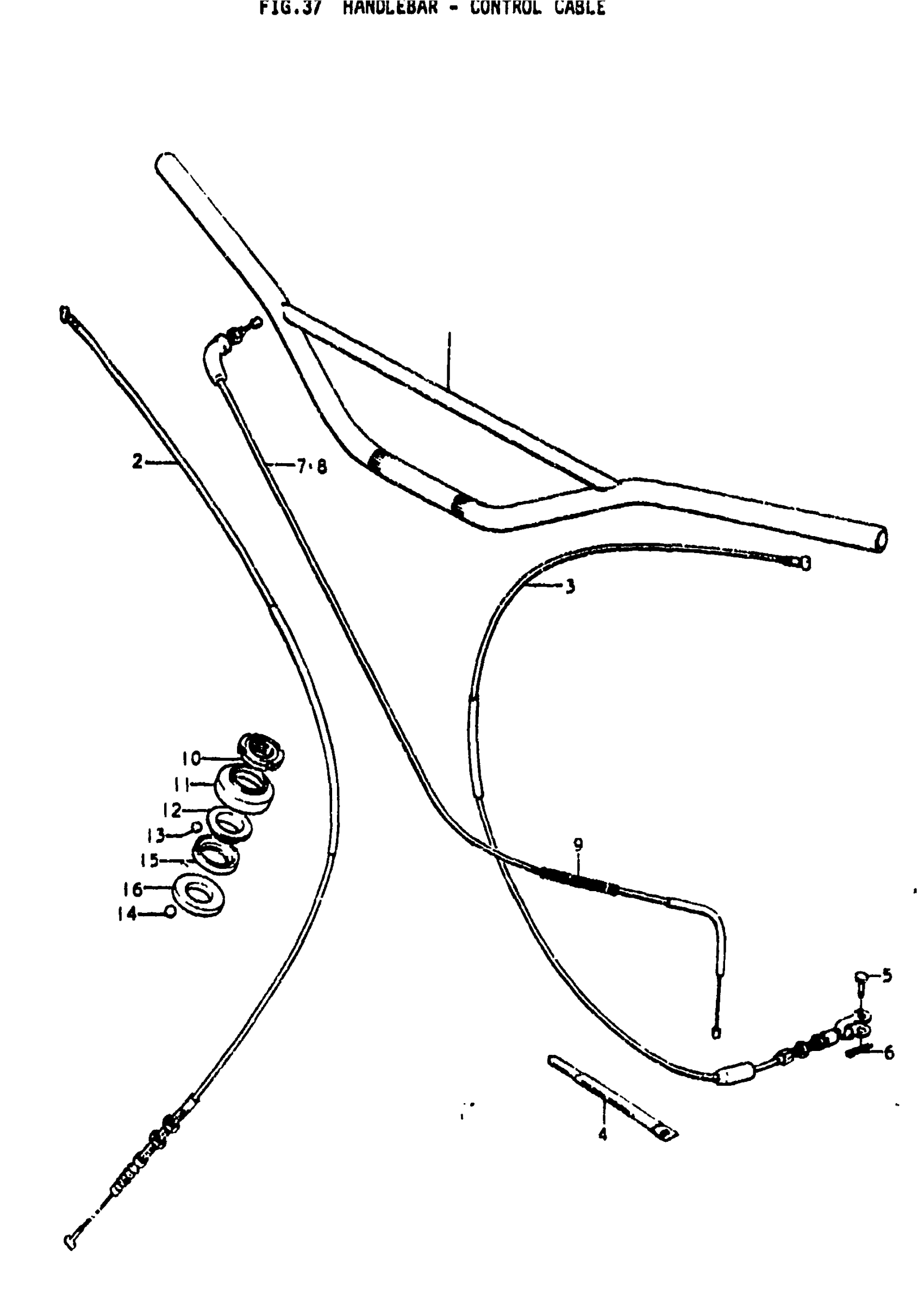

Suzuki RM80 (1979) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR | B,C This part replaces 56110-46000.

56110-46010-08C

Unavailable

1

HANDLEBAR | N

56110-46010-08C

Unavailable

2

CABLE, FRONT BRAKE | B This part replaces 58110-46000.

58110-46901

Unavailable

2

CABLE, FRONT BRAKE | C This part replaces 58110-46002.

58110-46901

Unavailable

2

CABLE, FRONT BRAKE | N This part replaces 58110-46900.

58110-46901

Unavailable

3

CABLE,CLUTCH | B This part replaces 58200-46000.

58200-46090

$14.75

3

CABLE,CLUTCH | C,N This part replaces 58200-46002.

58200-46090

$14.75

4

CLAMP | B,C,N This part replaces 09407-18301.

09407-18302

$2.28

5

PIN | B,C,N

09200-06004

$2.20

6

.COTTER PIN | B,C,N This part replaces 04111-20158.

04111-2015A

$1.49

7

NO DESCRIPTION AVAILABLE | B This part replaces 58300-46000.

58300-46X00

Unavailable

8

CABLE,THROTTLE | C,N This part replaces 58300-46002.

58300-46X01

Unavailable

9

PROTECTOR | B,C,N

58399-27100

$3.78

10

NUT, STEERING STEM | B,C,N

51631-28000

$17.37

11

DUST SEAL,STEERING UPPER | B,C,N

51643-25001

$4.43

12

RACE,STEERING OUTER UPPER | B,C,N

51621-28000

$11.95

13

BALL, STEERING UPPER | B,C,N

06111-06003

$1.49

14

BALL, STEERING LOWER | B,C,N

06111-08003

$1.49

15

RACE,STEERING INNER UPPER | B,C,N

51611-20002

$11.95

16

RACE, STEERING INNER LOWER | B,C,N

51611-33002

$13.81
