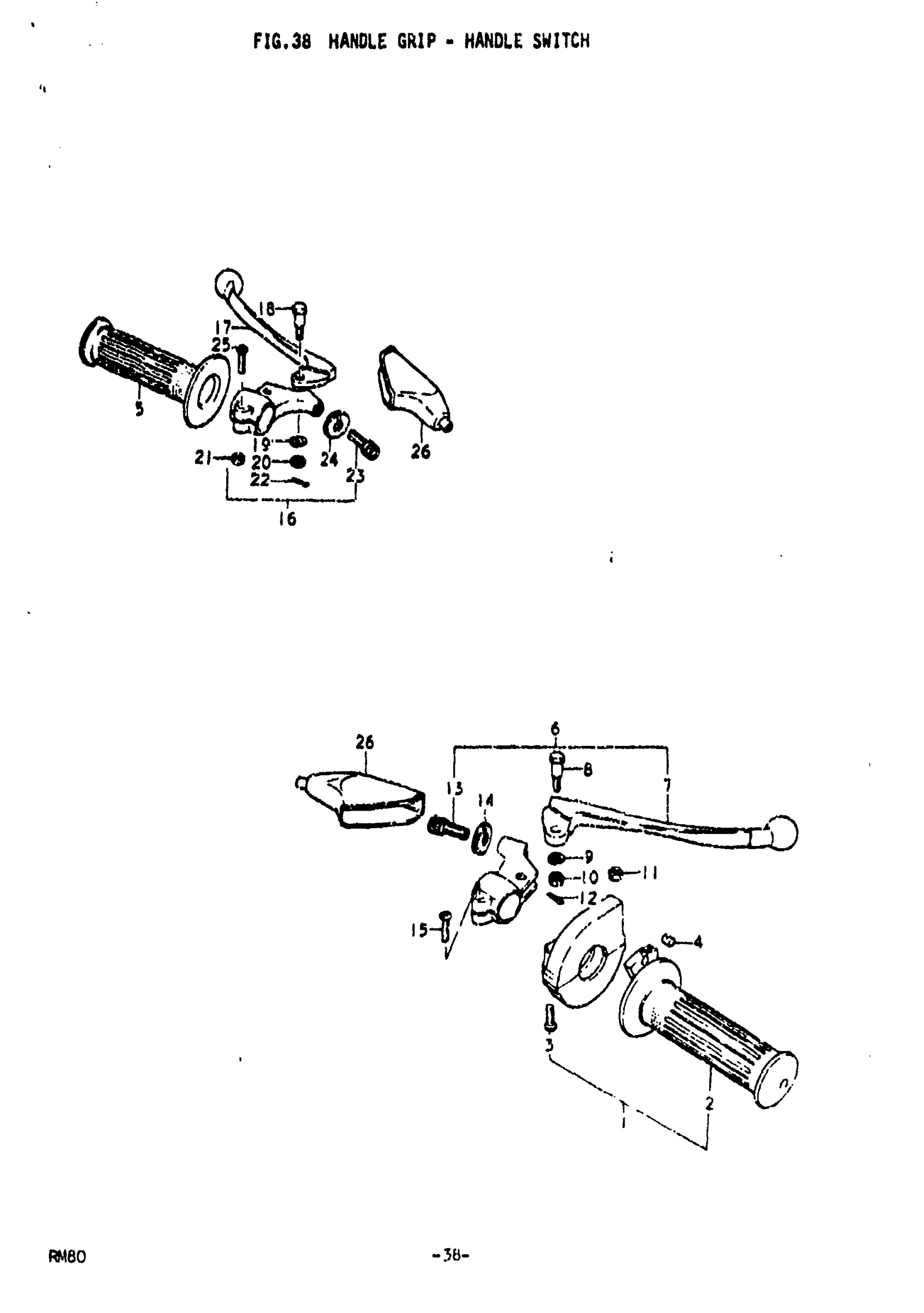

Suzuki RM80 (1979) HANDLE GRIP - HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | B,C,N; Includes Item(s) 2 - 3

57100-41601

Unavailable

2

GRIP, THROTTLE | B,C,N This part replaces 57110-41110.

57110-40200

Unavailable

3

SCREW | B,C,N This part replaces 02112-05168.

02112-05167

$1.97

4

PIECE, THROTTLE END | B,C,N

58631-07010

$3.56

5

GRIP LH | B,C,N This part replaces 57211-41110.

57211-27C00

$12.28

6

LEVER ASSY, BRAKE | B This part replaces 57300-28311.

57300-32500

Unavailable

6

LEVER ASSY, BRAKE | C This part replaces 57300-29400.

57300-32500

Unavailable

6

LEVER ASSY, BRAKE | N; Includes Item(s) 7 - 15 This part replaces 57300-29401.

57300-32500

Unavailable

7

LEVER, BRAKE | B This part replaces 57420-11012.

57420-29400

Unavailable

7

LEVER, BRAKE | C,N

57420-29400

Unavailable

8

BOLT | B,C,N This part replaces 57431-11010.

57431-11013

$6.31

9

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

10

NUT | B,C

57433-11010

$5.64

11

.NUT | N This part replaces 08319-21068.

08319-2106A

$1.91

12

PIN | B,C This part replaces 04111-16158.

04111-1620A

$1.49

13

ADJUSTER, BRAKE CABLE | B,C,N

57441-26010

$4.48

14

NUT | B,C,N

57442-11010

$2.79

15

SCREW | B,C,N This part replaces 02112-06208.

02112-06207

$1.78

16

NO DESCRIPTION AVAILABLE | B This part replaces 57500-28311.

57500-11012

Unavailable

16

LEVER ASSY, CLUTCH | C This part replaces 57500-29400.

57500-29401

Unavailable

16

LEVER ASSY, CLUTCH | N; Includes Item(s) 17 - 25

57500-29401

Unavailable

17

LEVER, CLUTCH | B

57620-45010

Unavailable

17

LEVER, CLUTCH | C,N This part replaces 57620-29400.

57620-45010

Unavailable

18

BOLT | B,C,N This part replaces 57431-11010.

57431-11013

$6.31

19

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

20

NUT | B,C

57433-11010

$5.64

21

.NUT | N This part replaces 08319-21068.

08319-2106A

$1.91

22

PIN | B,C This part replaces 04111-16158.

04111-1620A

$1.49

23

ADJUSTER, CLUTCH CABLE | B,C,N

57441-26010

$4.48

24

NUT | B,C,N

57442-11010

$2.79

25

SCREW | B,C,N This part replaces 02112-06208.

02112-06207

$1.78

26

COVER, CLUTCH LEVER | B,C,N This part replaces 57341-40001.

57341-40003

$5.56
