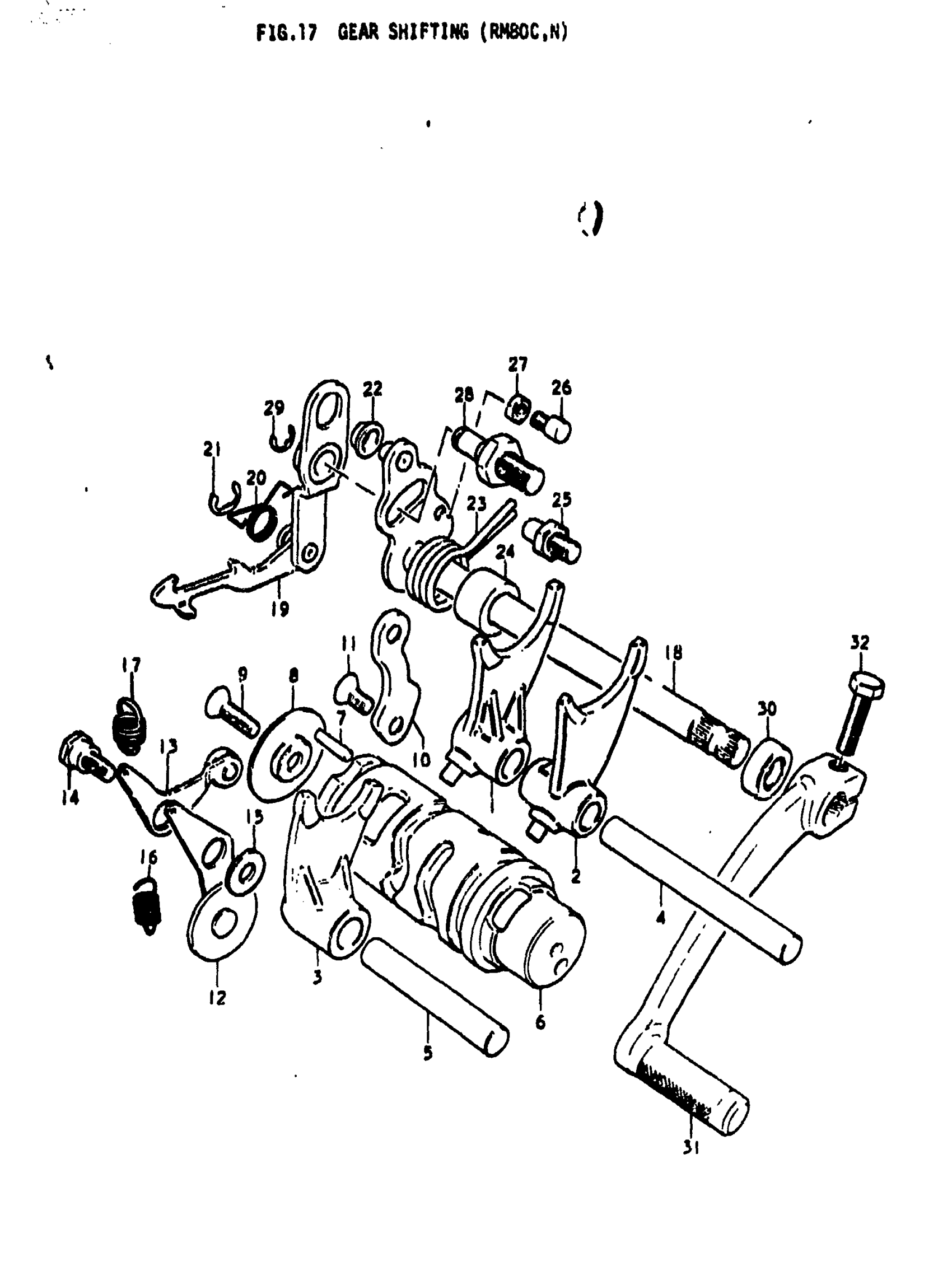

Suzuki RM80 (1979) GEAR SHIFTING (RM80C Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO. 1 | C,N This part replaces 25211-46002.

25211-46003

Unavailable

2

FORK, GEAR SHIFTING NO.2 | C,N This part replaces 25221-46900.

25221-46901

Unavailable

3

FORK, GEAR SHIFTING NO. 3 | C,N

25231-46000

Unavailable

4

SHAFT, NO.2 | C,N This part replaces 25411-40000.

25411-14331

$23.07

5

SHAFT, NO.1 | C,N This part replaces 25421-40000.

25421-35410

$23.47

6

CAM, GEAR SHIFTING | C,N This part replaces 25311-46900.

25311-20900

Unavailable

7

PIN, GEAR SHIFTING CAM DRIVE | C,N

09261-04009

$1.56

8

RETAINER, DRIVE PIN | C,N This part replaces 25322-03000.

25322-46000

$7.77

9

SCREW | C,N This part replaces 02122-06208.

02122-0620A

$1.49

10

GUIDE, GEAR SHIFTING CAM | C,N

25341-46900

Unavailable

11

SCREW | C,N This part replaces 02122-06128.

02122-06127

$1.84

12

STOPPER, GEAR SHIFTING CAM | C,N

25350-46900

Unavailable

13

STOPPER, CAM NEUTRAL | C,N

25390-46900

Unavailable

14

BOLT | C,N

09111-06020

Unavailable

15

WASHER (6.5X14X2.3) | C,N This part replaces 09160-06017.

09160-06127

$2.30

16

SPRING | C,N

09443-08015

Unavailable

17

SPRING | C,N This part replaces 09443-10016.

09443-10017

Unavailable

18

SHAFT, GEAR SHIFTING | C,N

25510-46900

Unavailable

19

PAWL, GEAR SHIFTING | C,N This part replaces 25513-46900.

25540-46900

Unavailable

20

SPRING | C,N

09448-13006

$2.53

21

E RING | C,N This part replaces 08332-11078.

08332-1107A

$1.78

22

ROLLER | C,N

09180-07014

$4.11

23

SPRING | C,N

09444-26014

Unavailable

24

SPACER | C,N

09180-12068

$3.16

25

STOPPER, ARM | C,N This part replaces 25671-01000.

25671-01011

$4.48

26

BOLT, GEAR SHIFTING RETURN | C,NC,N

25673-46000

Unavailable

27

.NUT | C,N This part replaces 08310-22068.

08310-00067

$2.13

28

STOPPER, ARM | C,N This part replaces 25672-46001.

25672-46002

Unavailable

29

CIRCLIP | C,N This part replaces 08332-11068.

08332-1106A

$1.49

30

OIL SEAL (12X22X9) | C,N This part replaces 09285-12002.

09285-12006

$6.32

31

LEVER, GEAR SHIFTING | C,N This part replaces 25610-40000.

25600-46100

Unavailable

32

BOLT | C,N This part replaces 01107-06208.

01500-06207

$2.28
