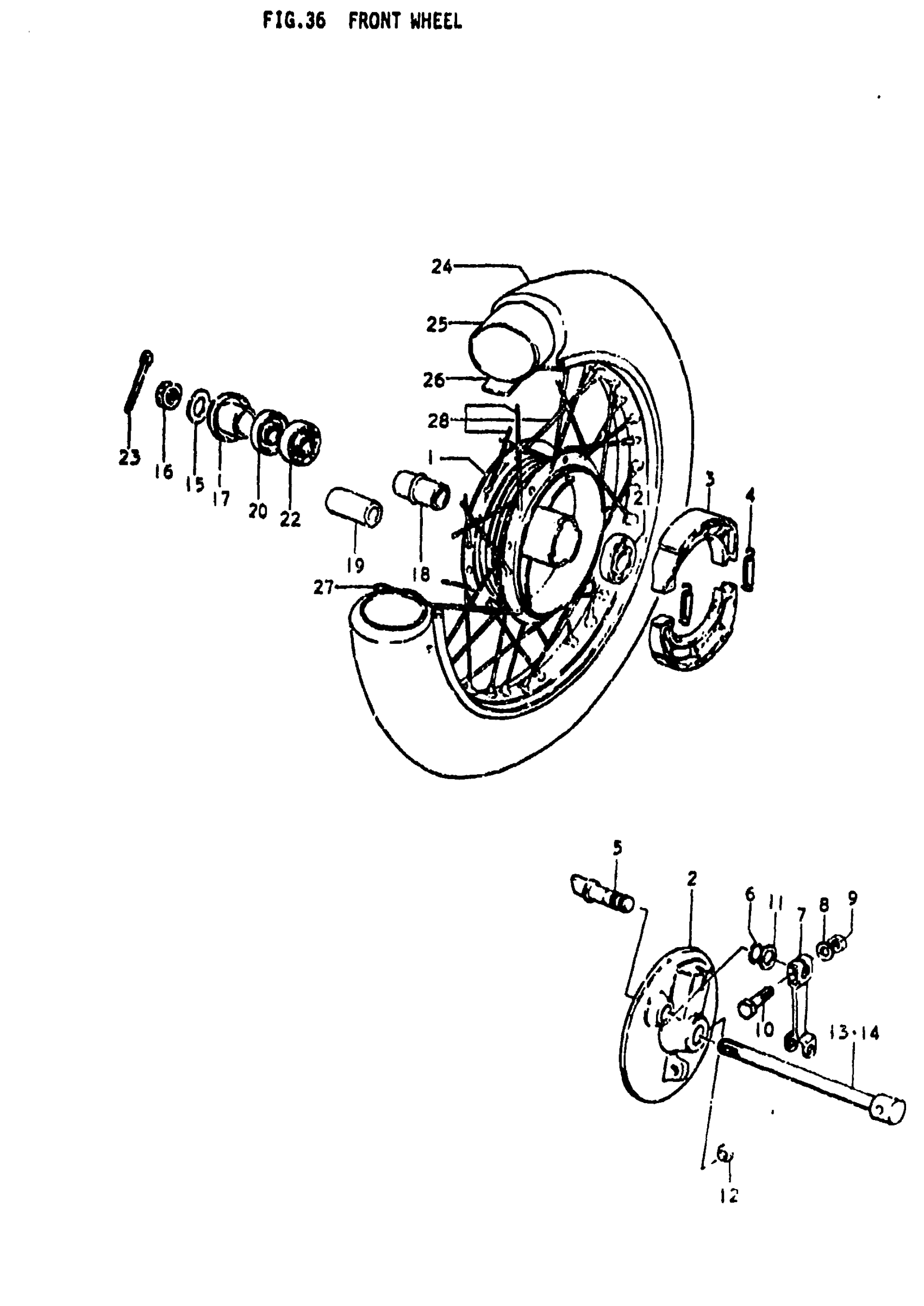

Suzuki RM80 (1979) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 54110-46000.

54110-46002

Unavailable

1

NO DESCRIPTION AVAILABLE | C,N This part replaces 54110-46021.

54110-46002

Unavailable

2

PANEL, FRONT HUB | B,C,N This part replaces 54210-46000.

54210-46001

Unavailable

3

SHOE/SPRING SET | B,C This part replaces 54410-43000.

54400-35860

$36.32

3

SHOE/SPRING SET | N This part replaces 54410-01005.

54400-35860

$36.32

4

SPRING | B,C,N This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM | B,C,N

54441-01002

$18.80

6

O RING | B,C,N

09280-12001

$2.90

7

LEVER, BRAKE CAM | B,C,N

54451-38000

Unavailable

8

WASHER | B,C,N This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT | B,C,N This part replaces 08310-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER | B,C,N; 6x30 This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER, DUST SEAL | B,C,N; 12.5x20x1

09160-12011

$1.54

12

PLUG, SPEEDOMETER PINION HOLE | B,C

09250-11003

$2.50

13

AXLE, FRONT | B This part replaces 54711-26100.

54711-04711

$33.12

14

NO DESCRIPTION AVAILABLE | C,N This part replaces 54711-43000.

54711-43001

Unavailable

15

WASHER | B,CN This part replaces 08322-21108.

08322-01107

$2.15

16

NUT | B,C,N This part replaces 08314-31108.

08314-3110A

$1.99

17

SPACER, FR AXLE RH | B,C,N This part replaces 54740-26100.

54740-26101

$18.87

18

SPACER | B

54730-01000

Unavailable

19

SPACER (10.2X16X51) | C,N This part replaces 09180-10005.

09180-10148

$8.18

20

OIL SEAL (15X31X5) | B,C,N; 15x31x9.5

09284-15001

$4.73

21

BEARING | B,C,N This part replaces 08143-63000.

08143-6300B

$15.33

22

BEARING | B,C,N

08113-62000

$13.63

23

PIN | B,C This part replaces 04111-20308.

04111-2030A

$1.50

23

COTTER PIN | N This part replaces 04111-20208.

04111-2020A

$1.49

24

TIRE | B,C; 2.50-16 KNOBBY FROM 55100-46010

55100-46050

Unavailable

24

TIRE, FRONT (70/100-17) | N; 2.75-17 This part replaces 55100-46910.

55110-02B41

Unavailable

25

TUBE, INNER | B,C; 2.50-16 This part replaces 55200-26110.

55200-08011

Unavailable

25

NO DESCRIPTION AVAILABLE | N; 2.75-17 This part replaces 55200-09620.

65200-47C00

Unavailable

26

PROTECTOR | B,C; 18x16 This part replaces 55261-08010.

65261-37300

Unavailable

26

PROTECTOR, INNER TUBE | N This part replaces 55261-01010.

55261-02B40

$6.88

27

RIM, WHEEL | B,C

55311-26120

Unavailable

27

RIM, WHEEL | N

55311-46900

Unavailable

28

NO DESCRIPTION AVAILABLE | B,C This part replaces 55300-26820.

55320-26120

Unavailable

28

NO DESCRIPTION AVAILABLE | N This part replaces 55301-03812.

55320-01021

Unavailable
