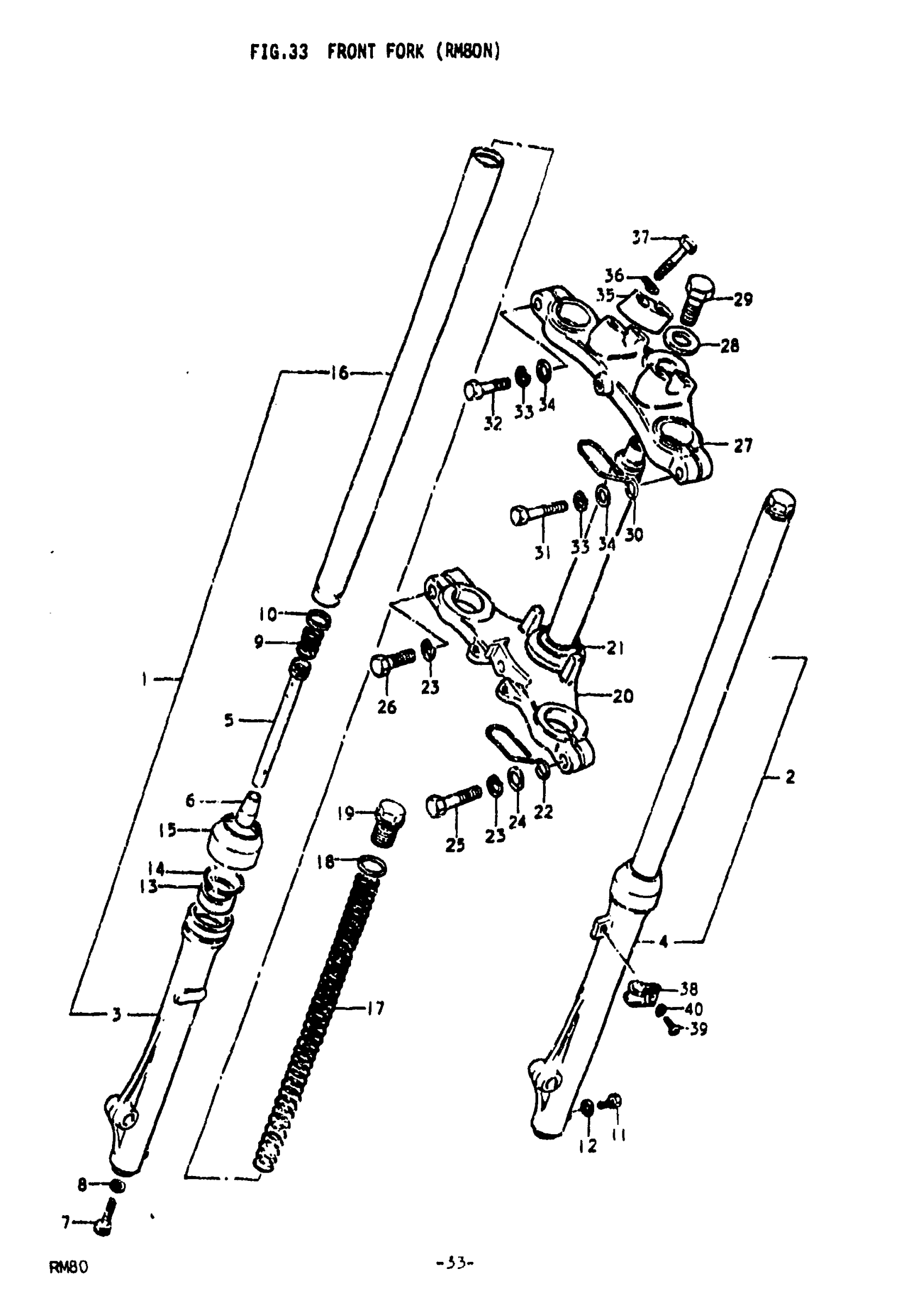

Suzuki RM80 (1979) FRONT FORK (RM80N) Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 40 This part replaces 51100-46910.

51100-46910-08C

Unavailable

1

FRONT CUSHION ASSY, RH

51103-46910

Unavailable

2

FRONT CUSHION ASSY, LH

51104-46910

Unavailable

3

OUTER TUBE, RH

51131-46910

Unavailable

4

OUTER TUBE, LH

51141-46910

Unavailable

5

PIPE, SEAT

51146-46910

Unavailable

6

.PIECE, OIL LOCK

51195-48000

Unavailable

7

BOLT

51147-48130

$4.34

8

O RING This part replaces 51148-31030.

51148-36011

$3.56

9

SPRING

51177-36030

Unavailable

10

RING, PISTON

51196-33130

$8.12

11

BOLT

01104-06088

Unavailable

12

WASHER

51183-31030

$3.77

13

.OIL SEAL This part replaces 51153-08030.

51153-48420

$13.30

14

.OIL SEAL This part replaces 51156-36030.

51156-48730

$5.32

15

DUST SEAL This part replaces 51173-25030.

51173-20400

$14.50

16

INNER TUBE

51110-46910

Unavailable

17

SPRING

51171-46910

Unavailable

18

.O RING

51181-25030

$4.52

19

.BOLT

51351-48000

Unavailable

20

STEM, STEERING (GOLD) This part replaces 51410-46910.

51410-46911-08C

Unavailable

21

RACE, STEERING OUTER LOWER

51621-33001

$16.25

22

CLIP

51455-46030

Unavailable

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

WASHER This part replaces 08322-21108.

08322-01107

$2.15

25

BOLT, HOLDER This part replaces 51451-27431.

51451-12FA0

$3.95

26

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

27

STEERING STEM HEAD

51311-46910-08C

Unavailable

28

WASHER

51356-46030

Unavailable

29

BOLT

51352-46030

$9.17

30

CLIP

51455-46030

Unavailable

31

BOLT This part replaces 01107-08458.

01500-08453

$2.50

32

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

33

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

34

WASHER This part replaces 08322-21088.

08322-01087

$2.13

35

HOLDER, HANDLE

56211-46680-08C

Unavailable

36

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

37

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

38

CLIP

51452-46040

$6.58

39

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

40

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84
