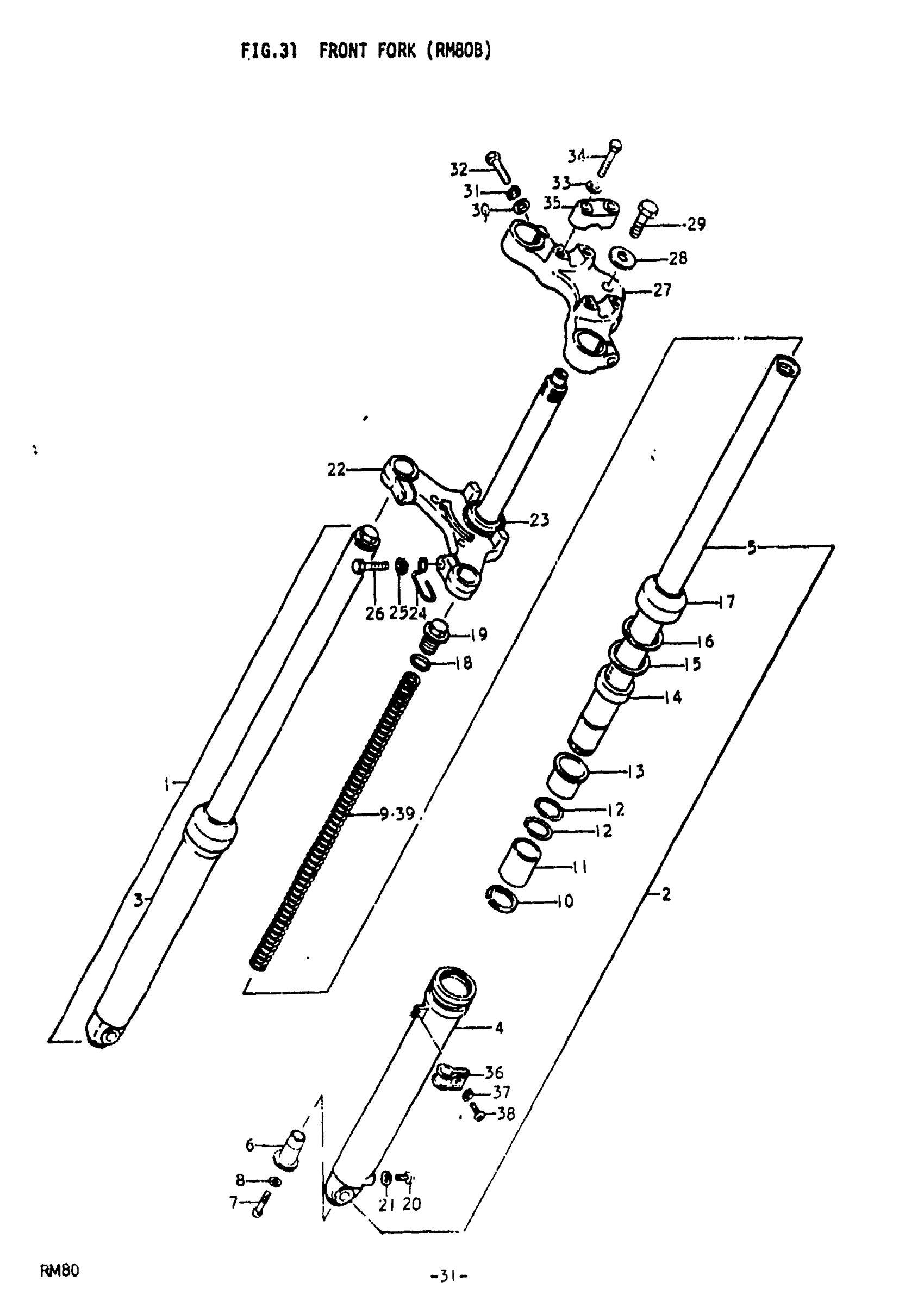

Suzuki RM80 (1979) FRONT FORK (RM80B) Diagram

#

Description
Price

0

FORK ASSY, FRONT | Includes Item(s) 1 - 38

51100-46030

Unavailable

1

FRONT CUSHION ASSY, RH

51103-46030

Unavailable

2

FRONT CUSHION ASSY, LH

51104-46030

Unavailable

3

OUTER TUBE, RH

51130-46030

Unavailable

4

OUTER TUBE, LH

51140-46030

Unavailable

5

INNER TUBE

51111-46030

Unavailable

6

SEAT, UNDER

51190-26130

Unavailable

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

GASKET

51148-26130

Unavailable

9

SPRING

51171-46030

Unavailable

10

SNAP RING

51119-26130

Unavailable

11

PISTON

51112-26130

Unavailable

12

STOPPER RING

51116-26130

Unavailable

13

GUIDE, INNER TUBE

51152-26130

Unavailable

14

OIL SEAL, FRONT This part replaces 51153-26130.

51153-13200

Unavailable

15

RING, BACK UP

51158-26130

Unavailable

16

CIRCLIP This part replaces 08331-21409.

08331-41406

$2.10

17

DUST SEAL

51571-26130

Unavailable

18

O RING (D:2.4,ID:17.8) This part replaces 51181-46030.

09280-18004

$5.18

19

BOLT, FORK

51351-46030

Unavailable

20

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

21

WASHER

51183-33030

Unavailable

22

STEM, STEERING

51410-46030

Unavailable

23

RACE, STEERING OUTER LOWER

51621-33001

$16.25

24

CLIP

51455-46030

Unavailable

25

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

26

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

27

STEERING STEM HEAD

51311-46030

Unavailable

28

WASHER

51356-46030

Unavailable

29

BOLT

51352-46030

$9.17

30

WASHER This part replaces 08322-21088.

08322-01087

$2.13

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

33

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

34

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

35

HOLDER, HANDLE

56211-27430

Unavailable

36

CLIP This part replaces 51452-46030.

51452-46040

$6.58

37

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

38

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

39

SPRING, FRONT | OPT

51171-46730

Unavailable
