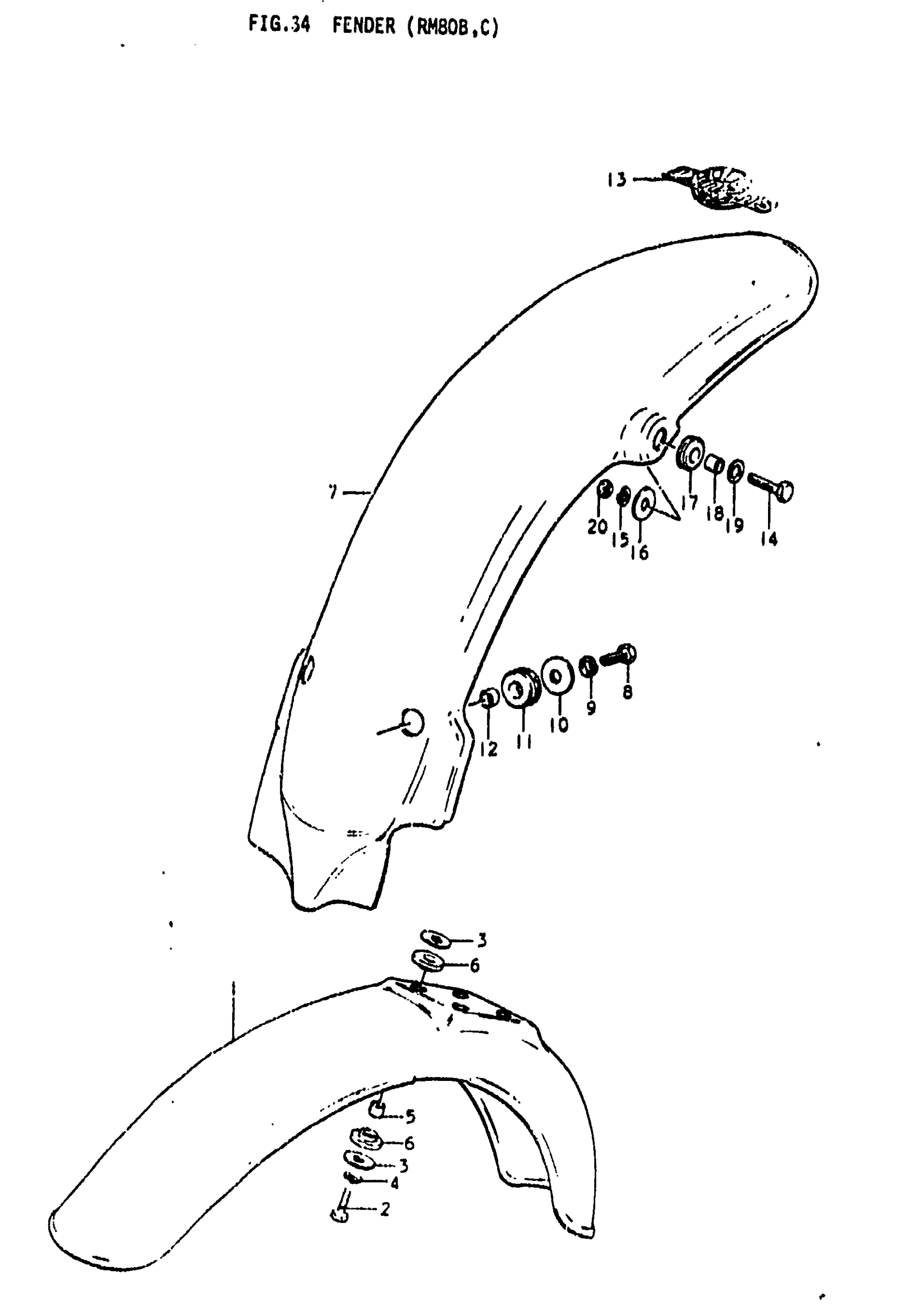

Suzuki RM80 (1979) FENDER (RM80B Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 53111-46000-163.

53111-46003-163

Unavailable

1

NO DESCRIPTION AVAILABLE | C This part replaces 53111-46001-163.

53111-46003-163

Unavailable

2

BOLT | B,C This part replaces 01107-06258.

01500-06257

$1.97

3

WASHER (6.5X20X1.2) | B,C This part replaces 09160-06027.

09160-06077

$1.91

4

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

5

SPACER (6.5X10X10) | B,C This part replaces 09180-06030.

09180-06310

$1.91

6

CUSHION | B,C

09320-09003

$2.23

7

FENDER, REAR | B,C

63111-46000-163

Unavailable

8

BOLT | B,C This part replaces 01107-06208.

01500-06207

$2.28

9

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER (6.5X20X1.2) | B,C This part replaces 09160-06027.

09160-06077

$1.91

11

CUSHION (8.5X20X8) | B,C This part replaces 09320-08007.

09320-08510

$1.97

12

SPACER | B,C

09180-06038

$1.98

13

EMBLEM, SUNRISE | B

68149-26600

Unavailable

14

BOLT | B,C This part replaces 01107-06258.

01500-06257

$1.97

15

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER (6.5X20X1.2) | B,C This part replaces 09160-06027.

09160-06077

$1.91

17

CUSHION (8.5X20X8) | B,C This part replaces 09320-08007.

09320-08510

$1.97

18

SPACER | B,C

09180-06038

$1.98

19

WASHER | B,C This part replaces 08322-21068.

08322-01067

$2.13

20

.NUT | B,C This part replaces 08310-11068.

08310-00067

$2.13
