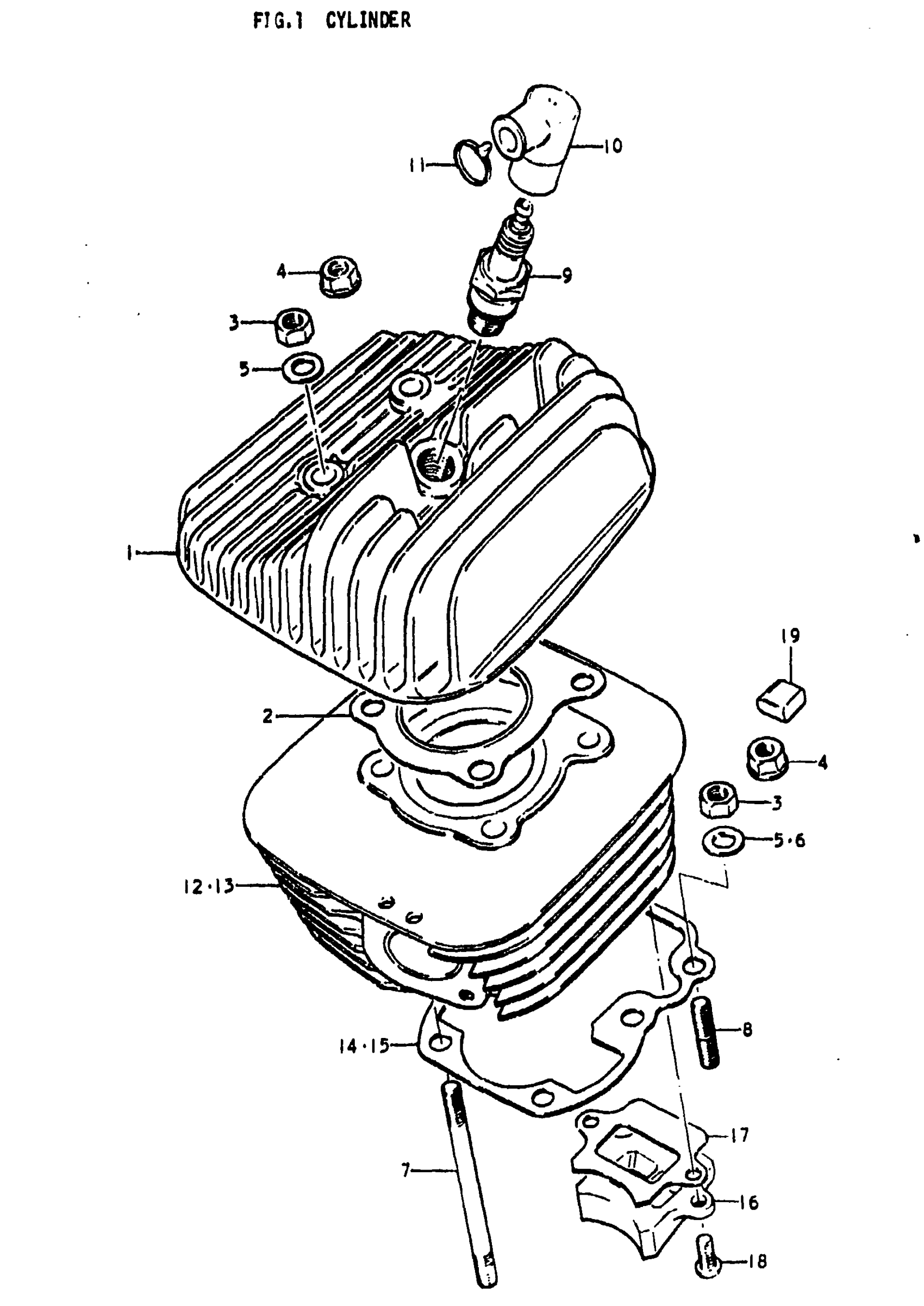

Suzuki RM80 (1979) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | B This part replaces 11111-46001.

11111-46003

Unavailable

1

CYLINDER HEAD | C

11111-46003

Unavailable

1

CYLINDER HEAD | N

11111-46004

Unavailable

2

GASKET, CYLINDER HEAD | B,C,N; FROM 11141-46081

11141-46082

$5.80

3

NUT | B,C This part replaces 08310-12088.

08310-00087

$2.13

4

NUT (CHROME) | C This part replaces 08316-16088.

08316-10087

$2.26

5

WASHER | BC This part replaces 08322-21088.

08322-01087

$2.13

6

WASHER | C This part replaces 08322-11088.

08322-01087

$2.13

7

STUD BOLT, NO.1 | B,C,N

09108-08028

$5.20

8

STUD BOLT | B,C,N This part replaces 01421-08208.

01421-0820A

$1.91

9

SPARK PLUG (NGK,BR7ES) | B; NGK B7ES This part replaces 09482-00089.

09482-00117

$3.03

9

SPARK PLUG | C,N; NGK B8ES

09482-00091

$3.01

9

SPARK PLUG W24E | C,N; ND W24FS This part replaces 09482-00092.

09482-00247-111

Unavailable

10

CAP, SPARK PLUG | B,C,N This part replaces 33510-41111.

33510-20A02

$24.39

11

BELT | B,C,N

09407-09402

$2.45

12

CYLINDER | B

11210-46001

Unavailable

13

CYLINDER | C,N

11210-46900

Unavailable

14

GASKET, CYLINDER | B This part replaces 11241-46001.

11241-46010

$6.15

15

GASKET, CYLINDE | C,N This part replaces 11241-46900.

11241-46900-H17

Unavailable

16

LEED VALVE ASSY | B,C,N This part replaces 13150-46010.

13150-46011

Unavailable

17

GASKET, REED VALVE | B,C,N This part replaces 13156-46000.

13156-46001-H17

$2.83

18

SCREW | B,C,N This part replaces 02112-06168.

02112-06167

$1.49

19

PAD, CYLINDER & CYLINDER HEAD | B,C,N; OPT; FOR ARREST OF NOISES

11252-25000

$4.52
