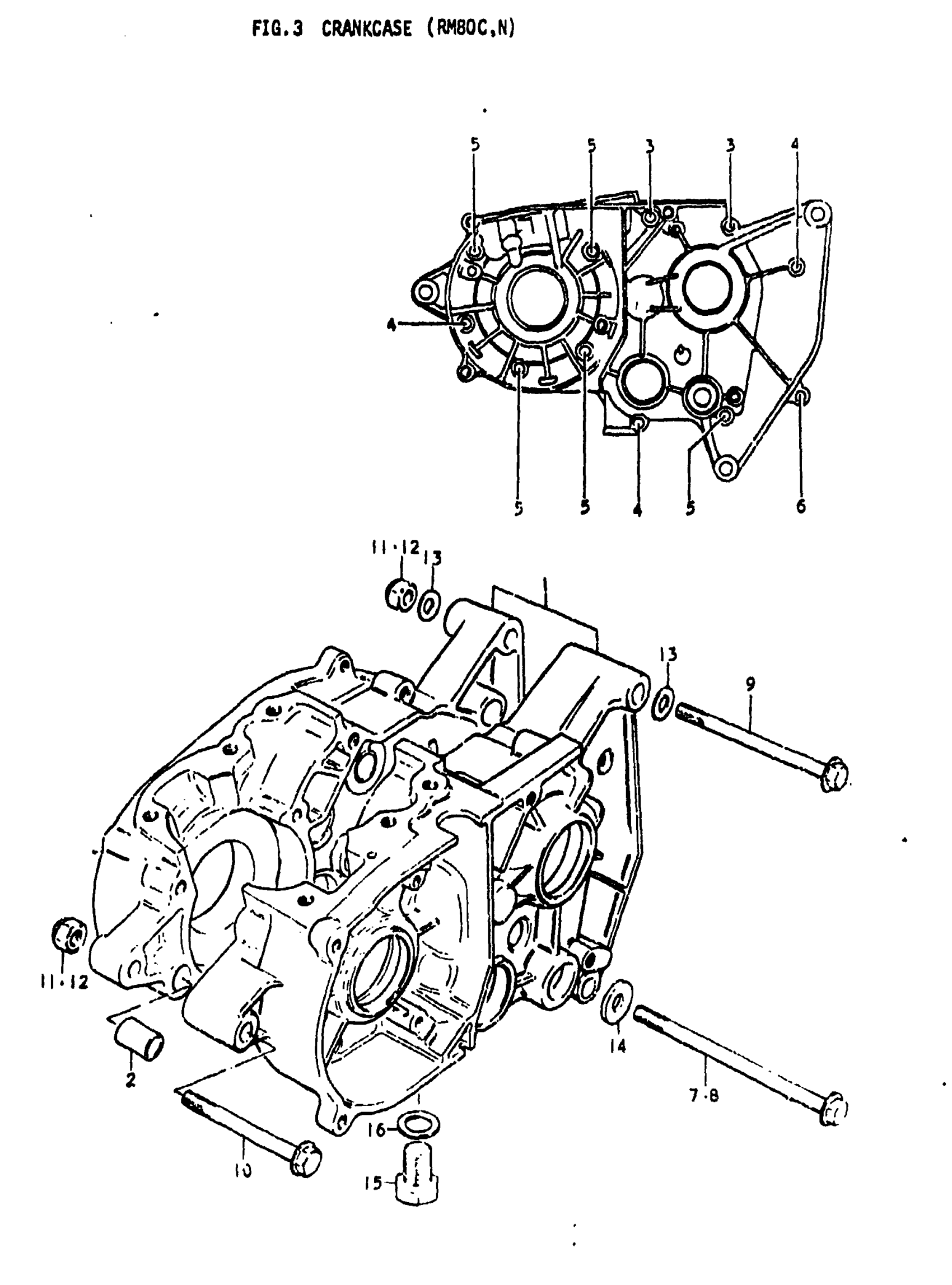

Suzuki RM80 (1979) CRANKCASE (RM80C Diagram

#

Description
Price

1

CRANKCASE SET | C,N; Includes Item(s) 2 - 6 This part replaces 11300-46860.

11300-46861

Unavailable

2

PIN | C,N This part replaces 09206-13001.

04211-13189

$2.19

3

SCREW | C,N This part replaces 02112-06758.

02112-06757

$3.08

4

6X50 CROSS SCRE | C,N This part replaces 02112-06508.

02112-06507

$1.99

5

SCREW | C,N This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW | C,N This part replaces 02112-06258.

02112-06257

$1.78

7

BOLT (8X110) | C; 8x115 This part replaces 09103-08024.

09103-08134

$3.40

8

BOLT | N; 8x115 This part replaces 09100-08155.

09116-08064

$6.28

9

BOLT (8X100) | C,N; 8x100 This part replaces 09103-08009.

09103-08070

$5.57

10

BOLT | C,N This part replaces 01517-08758.

01550-08757

$4.68

11

NUT | C

09159-08020

$1.78

12

NUT | N This part replaces 08319-31088.

08319-3108A

$2.32

13

WASHER | C This part replaces 08322-11088.

08322-01087

$2.13

14

WASHER | C,N This part replaces 09160-08030.

09160-08128

$2.80

15

BOLT | C,N This part replaces 01107-10208.

01500-1020B

$3.16

16

GASKET | C,N

09168-10002

$2.13
