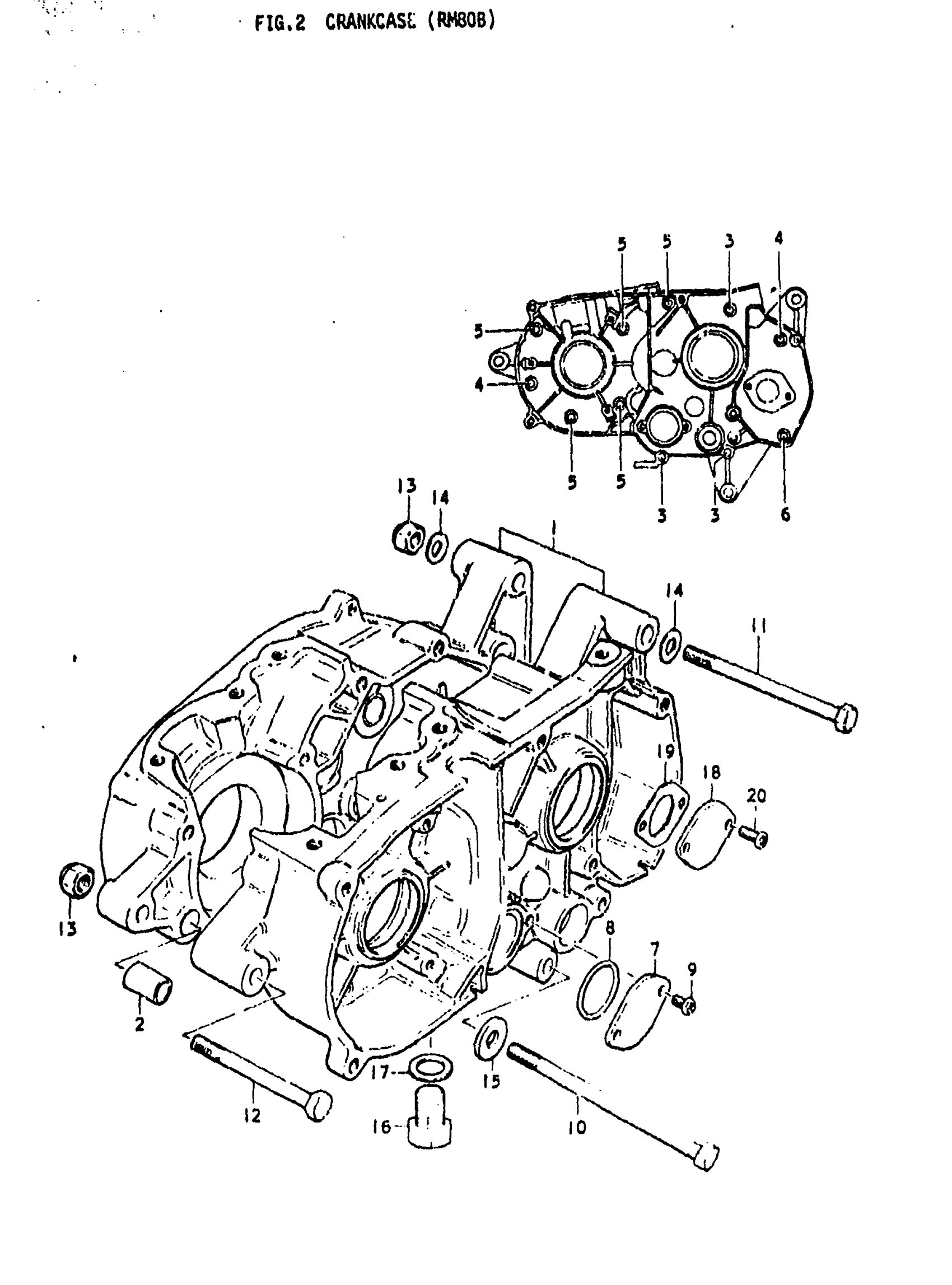

Suzuki RM80 (1979) CRANKCASE (RM80B) Diagram

#

Description
Price

1

CRANK CASE SET | Includes Item(s) 2 - 6 This part replaces 11300-46811.

11301-46822

$543.30

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

SCREW

02112-06557

$2.53

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW This part replaces 02112-06258.

02112-06257

$1.78

7

CAP, GEAR SHIFTING CAM PIVOT

11451-46000

$3.37

8

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

9

SCREW This part replaces 02112-05088.

02112-05087

$1.49

10

BOLT | 8x115 This part replaces 09100-08027.

09116-08064

$6.28

11

BOLT, NO.2 | 8X100

09100-08023

Unavailable

12

BOLT This part replaces 01107-08758.

01500-0875B

$4.10

13

NUT

09159-08020

$1.78

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

WASHER This part replaces 09160-08030.

09160-08128

$2.80

16

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

17

GASKET

09168-14004

$1.83

18

CAP OIL PUMP DRIVE SHAFT

16745-16701

Unavailable

19

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

20

SCREW This part replaces 02112-05128.

02112-05127

$1.97
