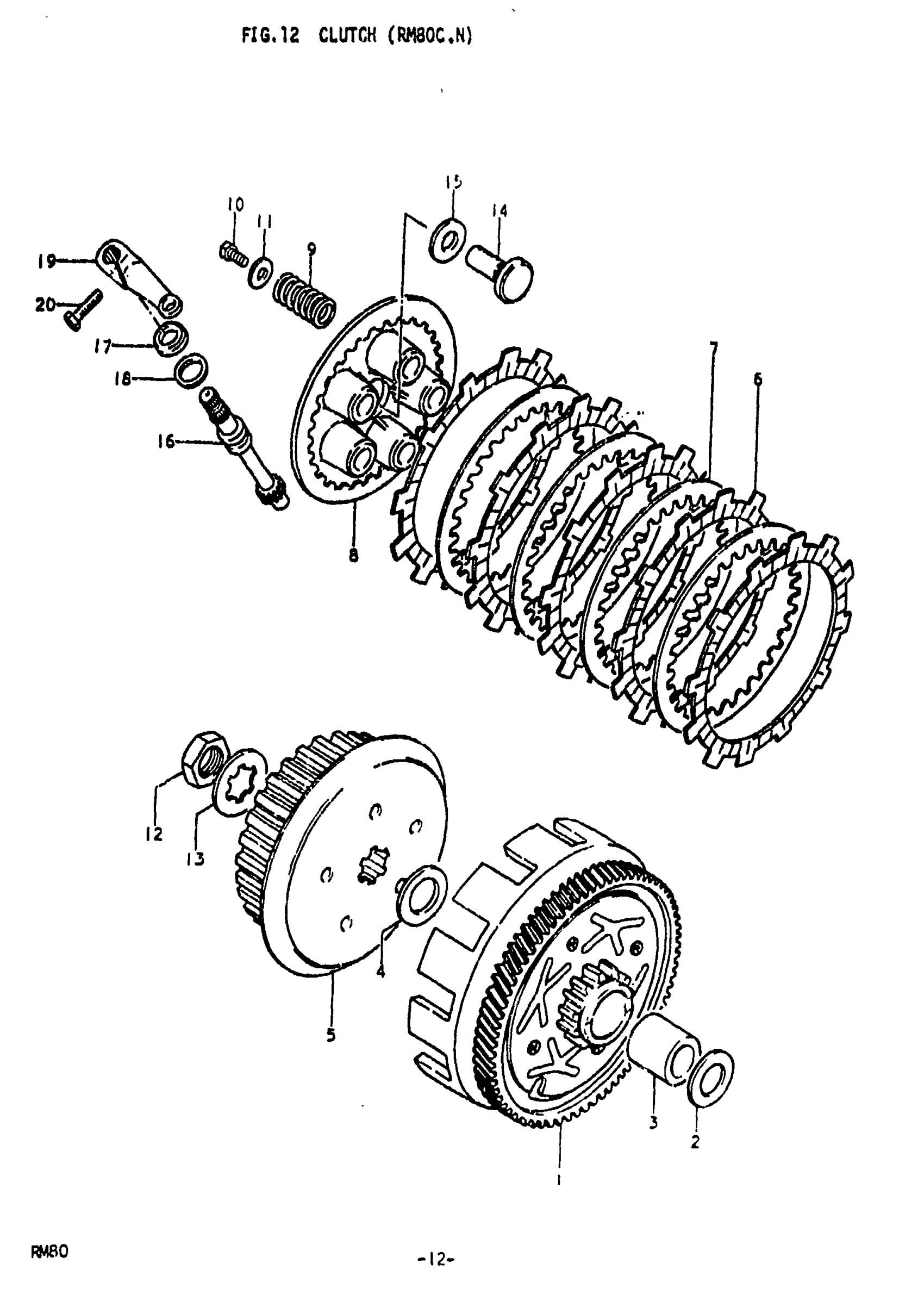

Suzuki RM80 (1979) CLUTCH (RM80C Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | C,N This part replaces 21200-46900.

21200-46901

Unavailable

2

WASHER, 2ND DRIVE GEAR | C,N This part replaces 08211-17301.

09181-17223

$2.96

3

SPACER | C,N

09180-17049

Unavailable

4

THRUST WASHER | C,N; 17x28x1.5

08211-17282

$2.70

5

HUB, SLEEVE | C,N This part replaces 21411-46900.

21411-46901

Unavailable

6

PLATE, CLUTCH DRIVE | C,N This part replaces 21441-28300.

21441-13A01

$14.73

7

PLATE, CLUTCH DRIVEN (T:1.6) | C,N This part replaces 21451-28000.

21451-19A00

$7.58

8

DISC, PRESSURE | C,N This part replaces 21462-46900.

21462-02B41

$28.95

9

SPRING | C,N

09440-15008

$2.10

10

BOLT. | C,N

09100-05002

$1.49

11

WASHER (5.5X16X1.2) | C,N This part replaces 09160-05017.

09160-05043

$2.30

12

NUT | C,N This part replaces 09140-16001.

09140-16005

$3.75

13

WASHER | C,N

09167-17002

$1.91

14

RACK | C,N This part replaces 23165-28300.

23165-46000

$22.21

15

BEARING | C,N

09263-10002

$10.19

16

PINION, RELEASE | C,N

23261-41301

$43.68

17

OIL SEAL (10X17X5) | C,N This part replaces 09285-10002.

09285-10004

$3.37

18

WASHER (12.5X17X1) | C,N This part replaces 09160-12035.

09160-12086

$2.15

19

ARM, CLUTCH RELEASE | C,N This part replaces 23271-46000.

23271-46010

$28.97

20

BOLT, CANISTER | C,N This part replaces 01107-06168.

01500-06167

$1.97
