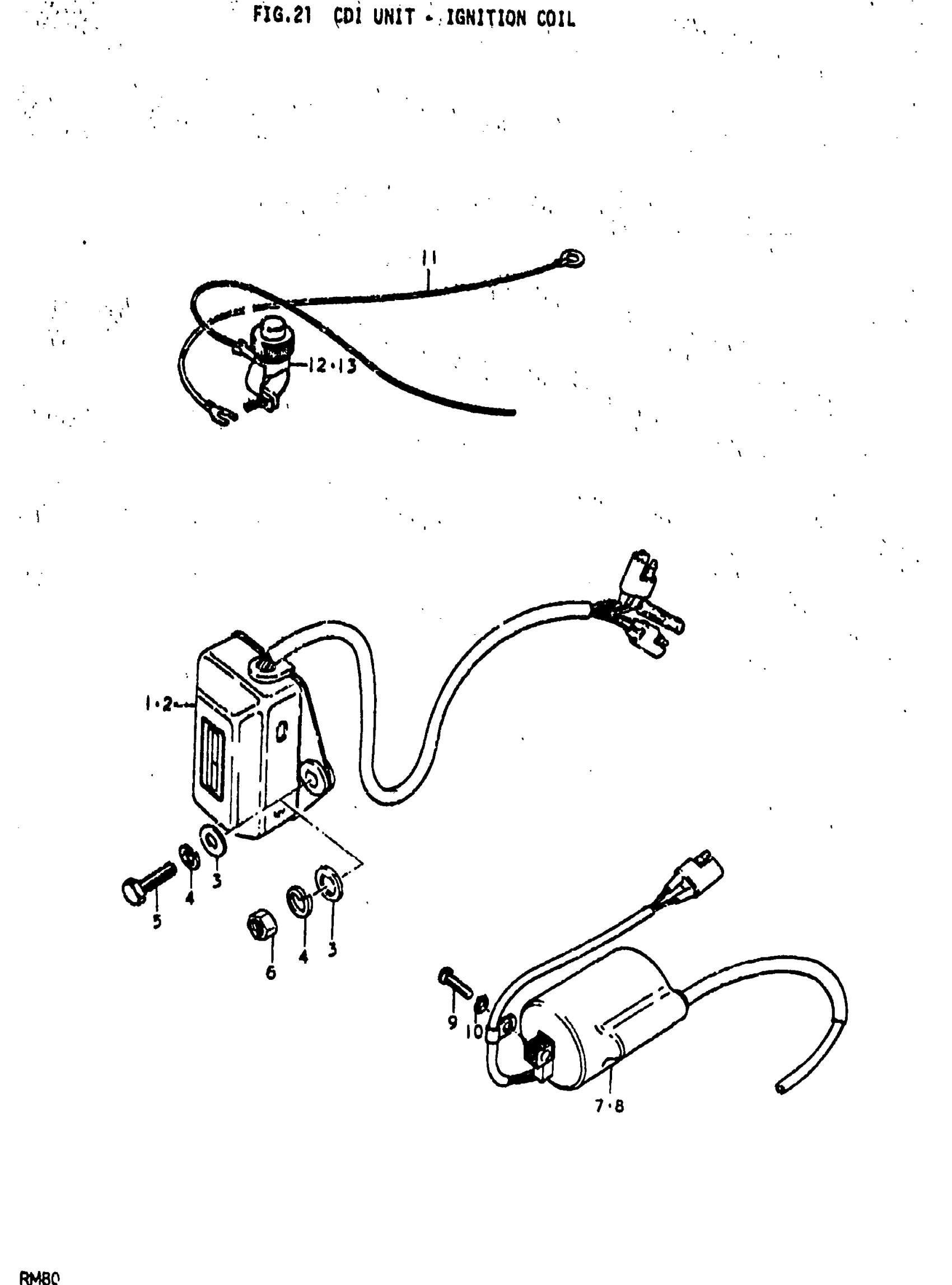

Suzuki RM80 (1979) CDI UNIT - IGNITION COIL Diagram

#

Description
Price

1

CDI UNIT ASSY | B,C

32900-46010

Unavailable

2

CDI UNIT ASSY | N

32900-46920

Unavailable

3

WASHER | B,C

09160-06019

$1.49

4

LOCK WASHER | B,C,N This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT | B This part replaces 01107-06208.

01500-06207

$2.28

6

.NUT | C,N This part replaces 08310-11068.

08310-00067

$2.13

7

COIL ASSY, IGNITION | B,C

33410-28600

Unavailable

8

COIL ASSY, IGNITION | N This part replaces 33410-41320.

33410-14120

$115.17

9

SCREW | B,C,N This part replaces 02112-05208.

02112-05207

$1.97

10

LOCK WASHER | B,C,N This part replaces 08321-21058.

08321-0105A

$1.84

11

LEAD WIRE | B,C,N

36851-41200

Unavailable

12

SWITCH ASSY, ENGINE STOP | B; TO 37820-04430 This part replaces 37820-16512.

37820-14X50

$48.54

13

SWITCH ASSY, ENGINE STOP | C,N This part replaces 37820-04430.

37820-14X50

$48.54
