TRANSMISSION

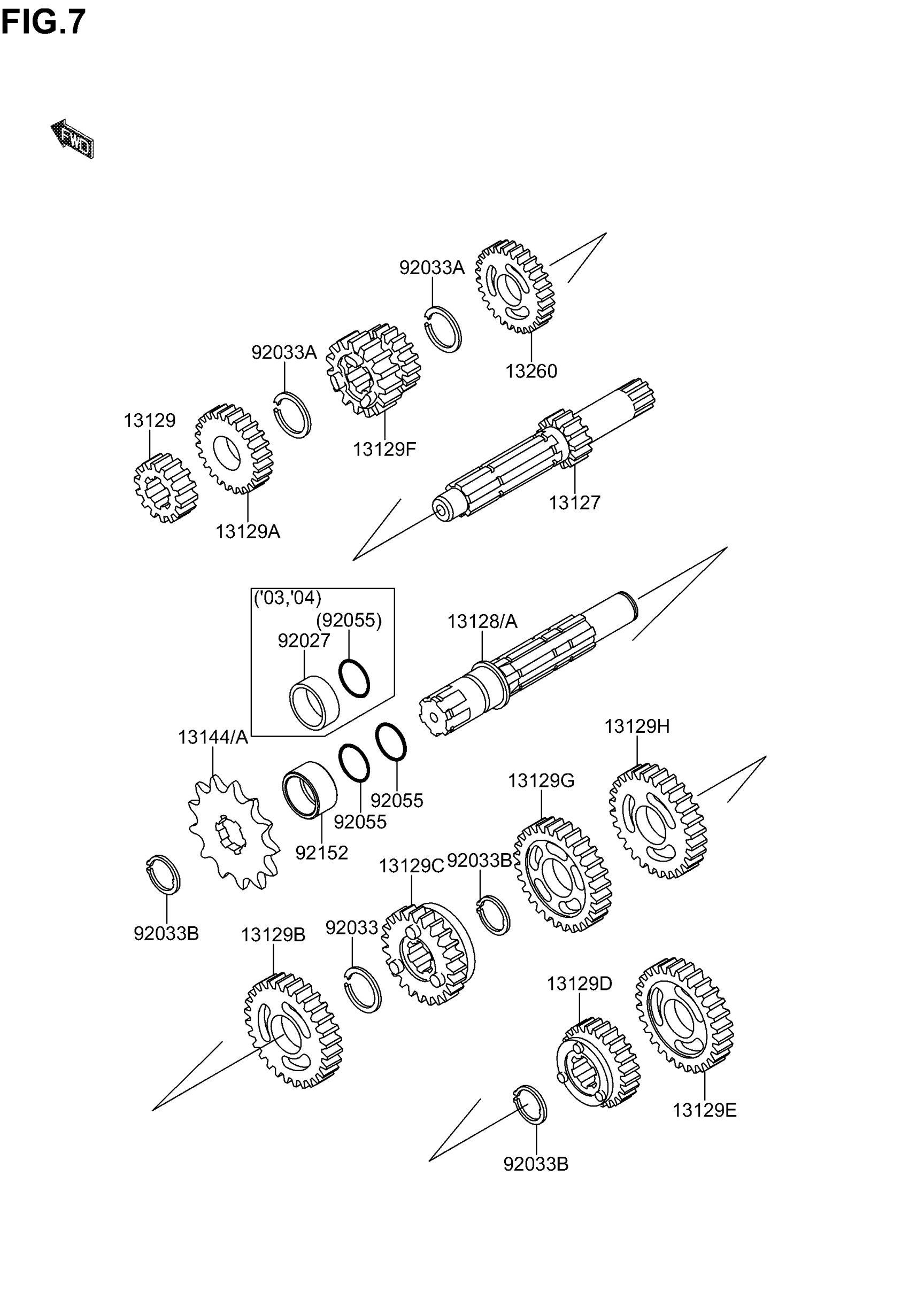

Suzuki RM65 (2005) TRANSMISSION Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION INPUT,13T
K1312-71105
Unavailable
13128
SHAFT-TRANSMISSION OUTPUT | K5
K1312-80016
Unavailable
13128A
SHAFT-TRANSMISSION OUTPUT
K1312-81028
Unavailable
13129
GEAR,INPUT 2ND,16T
K1312-91215
Unavailable
13129A
GEAR,INPUT 5TH,23T
K1312-91343
Unavailable
13129B
GEAR,OUTPUT 2ND,34T
K1312-91345
Unavailable
13129C
GEAR,OUTPUT 5TH,28T
K1312-91348
Unavailable
13129D
GEAR,OUTPUT TOP,26T
K1312-91349
Unavailable
13129E
GEAR,OUTPUT LOW,37T
K1312-91515
Unavailable
13129F
GEAR,INPUT 3RD&4TH,21T&18T
K1312-91611
Unavailable
13129G
GEAR,OUTPUT 4TH,30T
K1312-91612
Unavailable
13129H
GEAR,OUTPUT 3RD,31T
K1312-91654
Unavailable
13144
SPROCKET-OUTPUT,14T | OPTION
K1314-41022
Unavailable
13144A
SPROCKET,OUTPUT This part replaces K1314-41023.
K1314-40564
Unavailable
13260
GEAR,INPUT TOP,24T
K1326-01542
Unavailable
92033
RING-SNAP,18MM
KK920-33029
Unavailable
92033A
RING-SNAP,17MM
K9203-31060
Unavailable
92033B
RING-SNAP,18MM
K9203-31079
Unavailable
92055
RING-O,17.5X1.5
KK920-55022
Unavailable
92152
COLLAR,20X25X12.9 | K5
K9215-20195
Unavailable
