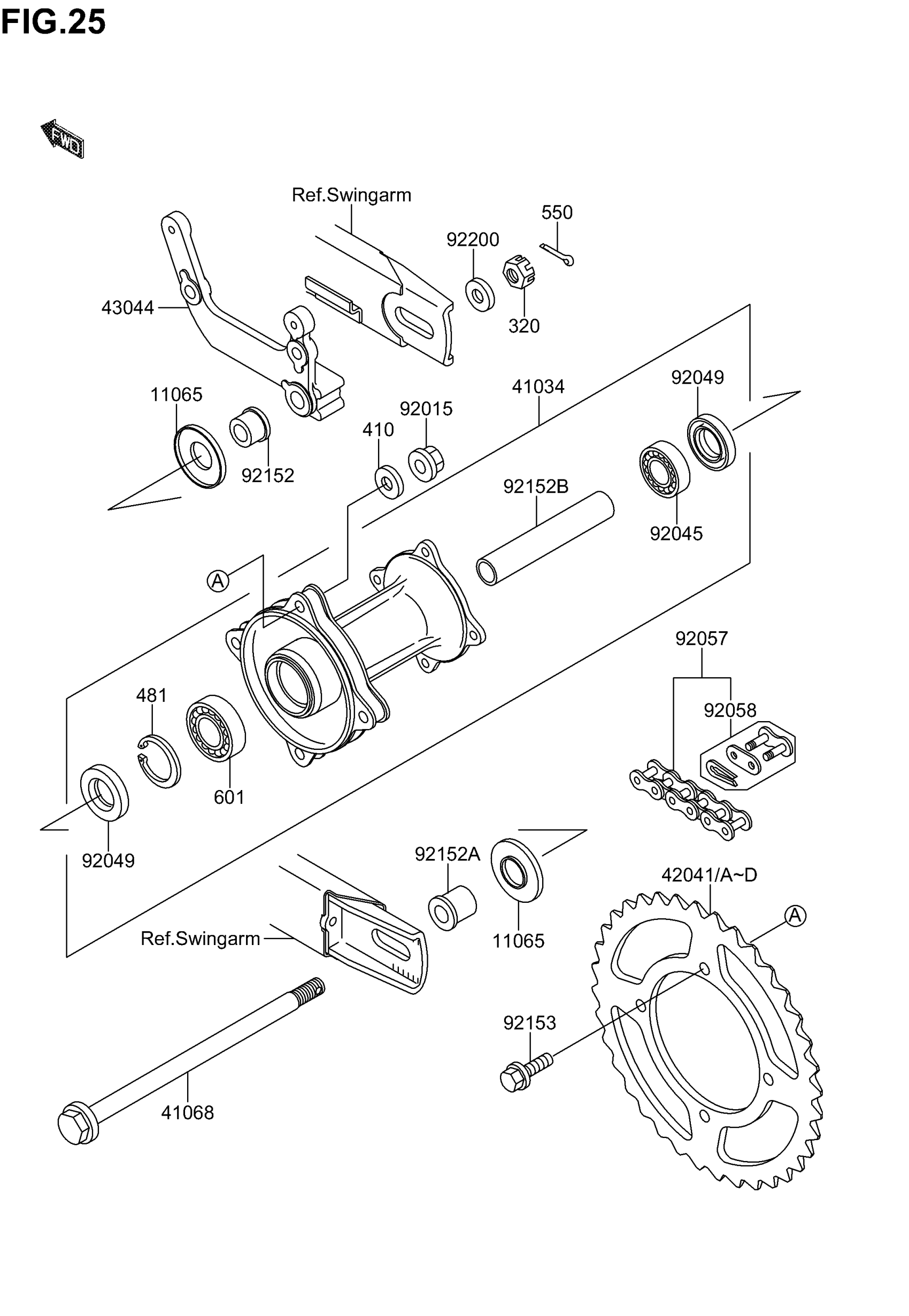

Suzuki RM65 (2005) REAR HUB Diagram

#

Description
Price

11065

CAP

K1106-51137

$3.68

41034

DRUM-ASSY,REAR BRAKE

K4103-41303

Unavailable

41068

AXLE,RR

K4106-81419

$23.85

42041

SPROCKET-HUB,45T | OPTION

K4204-11526

Unavailable

42041A

SPROCKET-HUB,46T | OPTION

K4204-11527

Unavailable

42041B

SPROCKET-HUB,47T

K4204-11528

Unavailable

42041C

SPROCKET-HUB,48T | OPTION

K4204-11529

Unavailable

42041D

SPROCKET-HUB,49T | OPTION

K4204-11549

Unavailable

43044

HOLDER-COMP-CALIPER,RR

K4304-41127

Unavailable

92015

NUT,8MM

K9201-51432

$5.00

92045

BEARING-BALL,TMB201LLUC3/2A

K9204-51062

Unavailable

92049

SEAL-OIL,TC20376.5

K9204-91257

Unavailable

92057

CHAIN,DRIVE,DID420MBK1X110L

K9205-71504

Unavailable

92058

JOINT-CHAIN,DRIVE

K9205-81073

Unavailable

92152

COLLAR,AXLE,L=15.5

K9215-21196

Unavailable

92152A

COLLAR,RR AXLE,L=22

K9215-21198

Unavailable

92152B

COLLAR,RR BRAKE DRUM,L=89

K9215-21199

Unavailable

92153

BOLT,FLANGED,8X28

K9215-31101

Unavailable

92200

WASHER,12.3X23X2.3

K9220-01004

$3.75

320

NUT,12MM This part replaces KK320-G1200.

K9221-07501

Unavailable

410

WASHER,PLAIN,SM This part replaces KK410-B0800.

K410A-A0800

$1.49

481

CIRCLIP-TYPE-C,37MM

KK481-J3700

Unavailable

550

PIN,COTTER,3.0X This part replaces KK550-D3025.

K550A-A3025

$1.78

601

BEARING-BALL,#6201UUC3

KKK60-1B630-1UU

Unavailable
