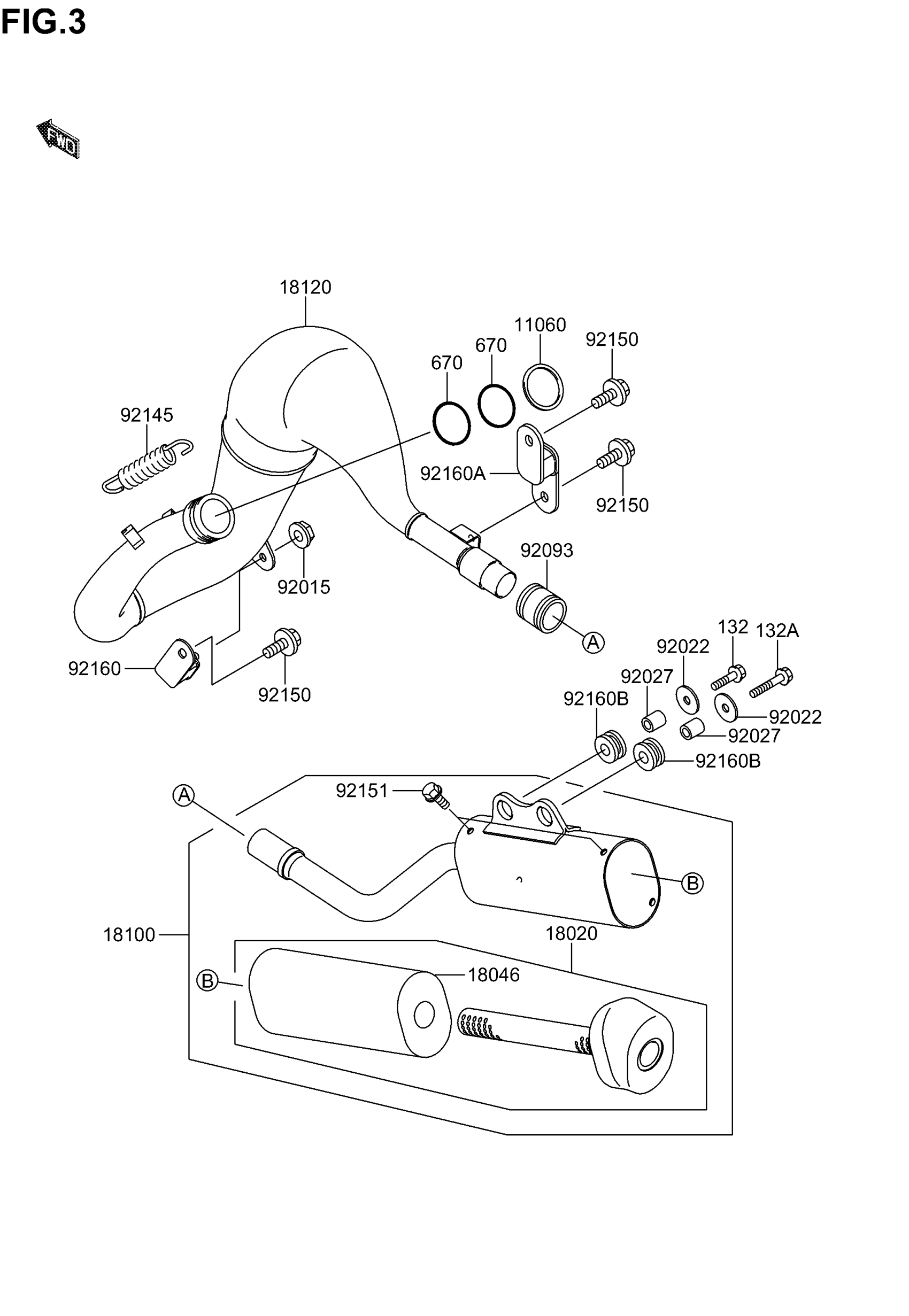

Suzuki RM65 (2005) MUFFLER Diagram

#

Description
Price

11060

GASKET,EXHAUST

K1106-01922

$9.18

18020

BAFFLE

K1802-01284

Unavailable

18046

WOOL,BAFFLE

K1804-61587

Unavailable

18100

BODY-ASSY-MUFFLER

K1810-01092

Unavailable

18120

CHAMBER-EXHAUST

K1812-01116

Unavailable

92015

NUT,FLANGED, 6M This part replaces K9201-51078.

K9221-00630

$2.12

92022

WASHER,6.5X22X1.6

KK920-22237

Unavailable

92027

COLLAR,6.8X10X11.5

K9202-71210

Unavailable

92093

SEAL

K9209-31511

Unavailable

92145

SPRING,EXHAUST This part replaces K9214-51340.

K9214-52327

$9.85

92150

BOLT,6X12

K9215-01435

$3.40

92151

BOLT,6X10

K9215-11822

Unavailable

92160

DAMPER,MUFFLER,FR

K9216-01176

$22.48

92160A

DAMPER,MUFFLER,RR

K9216-01201

$22.48

92160B

DAMPER,MUFFLER FITTING

K9216-01913

Unavailable

132

BOLT-FLANGED-SM This part replaces KK132-G0625.

K132B-A0625

$1.97

132A

BOLT,FLANGED,SM This part replaces KK132-V0635.

K132B-A0635

Unavailable

670

O RING,32MM

KK670-E3032

$10.73
