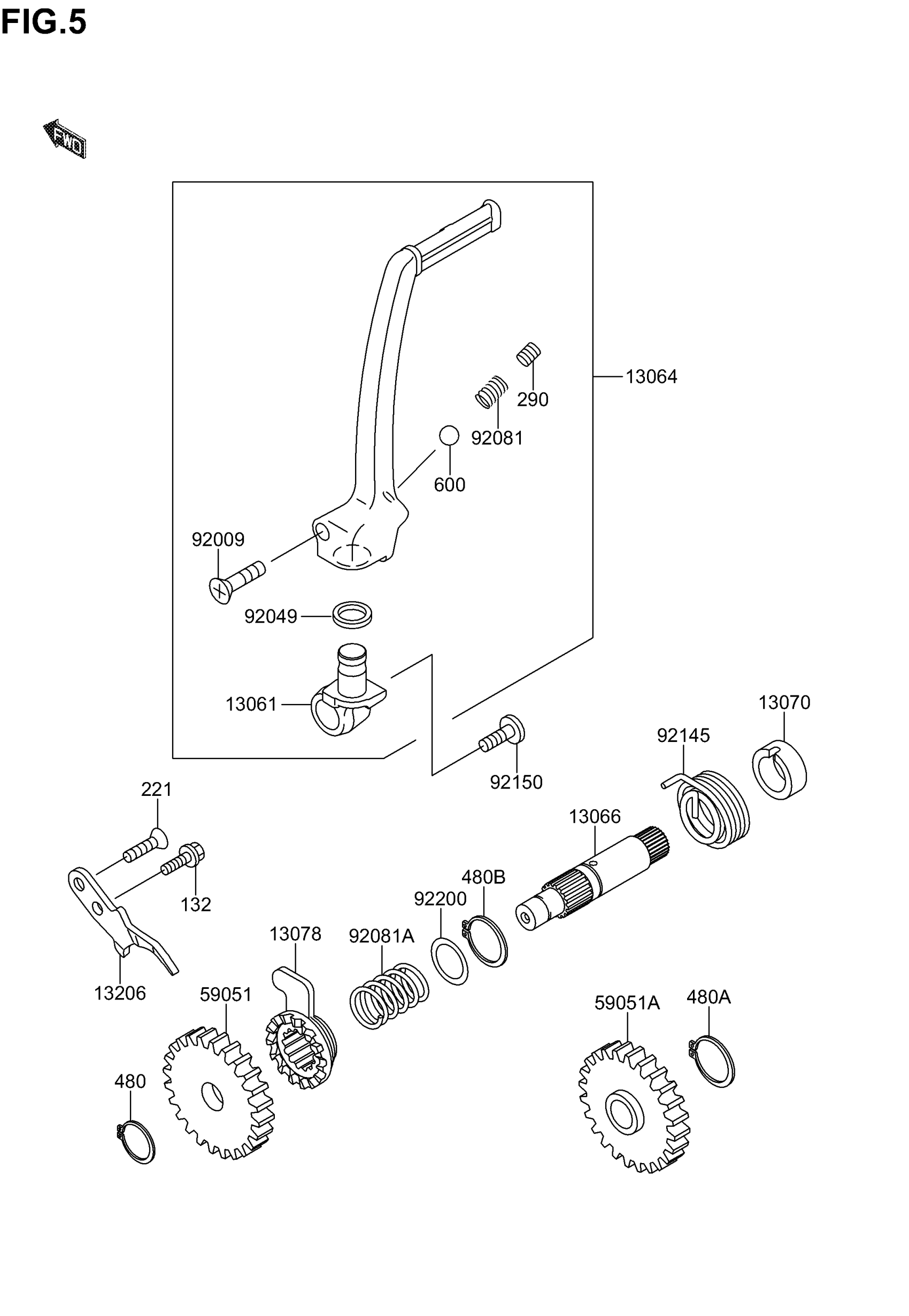

Find the part on the Kickstarter Mechanism diagram for your 2005 Suzuki RM65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki RM65 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS,KICK PEDAL

K1306-11712

1
Out of stock

13064

LEVER-ASSY-KICK,PEDAL

K1306-41196

1

$131.72

In stock

13066

SHAFT-KICK

K1306-61097

1
Out of stock

13070

GUIDE

K1307-01314

1
Out of stock

13078

RATCHET

K1307-81004

1
Out of stock

13206

GUIDE-KICK

K1320-61067

1
Out of stock

59051

GEAR-SPUR,32T

K5905-11026

1
Out of stock

59051A

GEAR-SPUR,30T

K5905-11027

1
Out of stock

92009

SCREW,6X27

K9200-91607

1
Out of stock

92049

SEAL-OIL,SR12162.5

K9204-91468

1
Out of stock

92081

SPRING,KICK PEDAL

KK920-81020

1

$3.92

In stock

92081A

SPRING,RATCHET

KK920-81122

1
Out of stock

92145

SPRING

K9214-51058

1
Out of stock

92150

BOLT,SOCKET,6X16

K9215-01737

1

$8.92

In stock

92200

WASHER,KICKSHAFT

K9220-01209

1
Out of stock

132

BOLT FLANGED, S This part replaces KK132-G0616.

K132B-A0616

1
Out of stock

221

SCREW-CSK-CROS, This part replaces KK221-B0618.

K221A-A0618

1
Out of stock

290

1

$3.12

In stock

480

CIRCLIP-TYPE-C,12MM

KK480-J1200

1
Out of stock

480A

CIRCLIP-TYPE-C,15MM

KK480-J1500

1
Out of stock

480B

CIRCLIP-TYPE-C,16MM

KK480-J1600

1

$1.45

In stock

600

BALL-STEEL,1/4"

KK600-A0800

1

$1.15

In stock
