2005 Suzuki RM65 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 2005 Suzuki RM65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

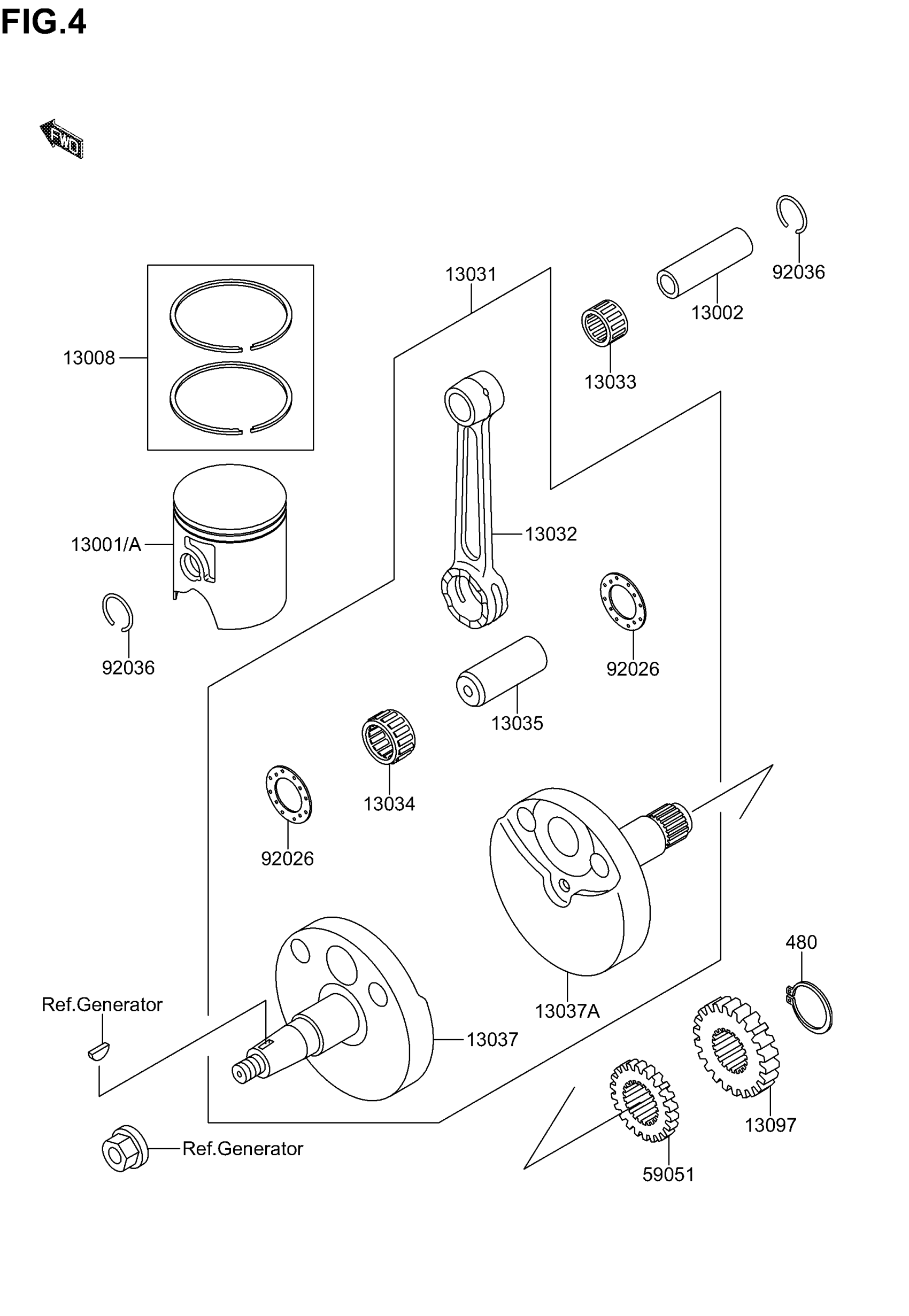

2005 Suzuki RM65 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE,B | K5

K1300-10040

1
Out of stock

13001A

PISTON-ENGINE

K1300-11630

1
Out of stock

13002

PIN-PISTON

K1300-21119

1
Out of stock

13008

RING-SET-PISTON

K1300-81199

1

$51.33

In stock

13031

CRANKSHAFT-COMP

K1303-11467

1
Out of stock

13032

ROD-CONNECTING

K1303-21246

1
Out of stock

13033

BRG,NEEDLE,12X1 This part replaces KK130-33028.

K1303-30002

1
Out of stock

13034

BEARING-BIG END,B4

K1303-41107

1
Out of stock

13035

PIN-CRANK

K1303-51002

1
Out of stock

13037

CRANKSHAFT,LH

K1303-71615

1
Out of stock

13037A

CRANKSHAFT,RH

K1303-71616

1
Out of stock

13097

GEAR-PRIMARY SPUR,22T

K1309-71413

1
Out of stock

59051

GEAR-SPUR,PUMP,23T

K5905-11146

1
Out of stock

92026

SPACER

K9202-61522

2
Out of stock

92036

RING-SNAP,PISTON PIN

KK920-36007

2

$3.35

In stock

480

CIRCLIP-TYPE-C,16MM

KK480-J1600

1

$1.45

In stock
