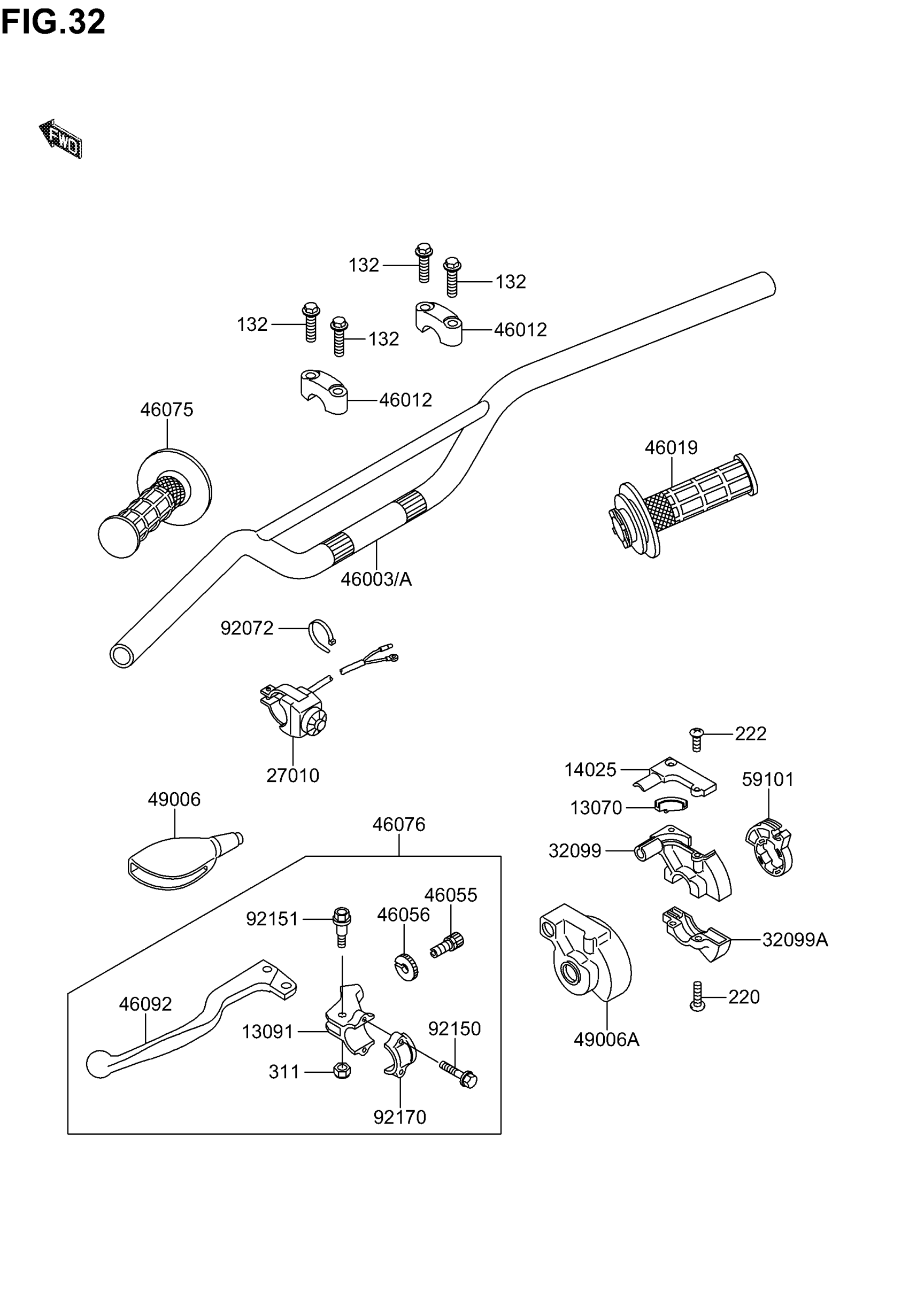

Suzuki RM65 (2005) HANDLEBAR Diagram

GUIDE,THROTTLE

K1307-01074

Unavailable

HOLDER,CLUTCH LEVER

K1309-11728

Unavailable

COVER,THROTTLE CASE UPP

K1402-51646

$7.00

SWITCH,ENGINE STOP

K2701-01415

Unavailable

CASE,THROTTLE,U This part replaces K3209-91036.

K3209-90037

$24.78

CASE,THROTTLE L This part replaces K3209-91044.

K3209-90038

Unavailable

HANDLE,SILVER | K5

KK460-03003-0CE

Unavailable

HANDLE,SILVER | K3, K4 This part replaces KK460-03157-7CE.

KK460-03003-0CE

Unavailable

HOLDER-HANDLE,UPP

K4601-21191

Unavailable

GRIP-ASSY,THROTTLE

K4601-91054

$34.58

SCREW,CABLE ADJUST,8MM

KK460-55003

Unavailable

NUT,CABLE ADJUST LOCK,8MM

KK460-56005

Unavailable

GRIP,LH

K4607-51024

Unavailable

LEVER-ASSY-GRIP,CLUTCH

K4607-61241

Unavailable

LEVER-GRIP,CLUTCH

K4609-21165

$17.88

BOOT,LEVER HOLDER

K4900-61017

$15.67

BOOT,THROTTLE CASE

K4900-61097

$14.78

REEL,THROTTLE

K5910-11110

Unavailable

BAND,L=123

KK920-72030

Unavailable

BOLT

K9215-01474

Unavailable

BOLT,LEVER SET,5MM

K9215-11103

$4.25

CLAMP,LEVER HOLDER

K9217-01226

Unavailable

BOLT-FLANGED-SM This part replaces KK132-G0830.

K132B-A0830

Unavailable

SCREW-PAN+- This part replaces KK220-C0518.

K220A-B0518

$1.49

SCREW-CSK-RD-CROS

KK222-E0412

Unavailable

NUT-HEX This part replaces KK311-B0500.

K311A-A0500

$1.49
