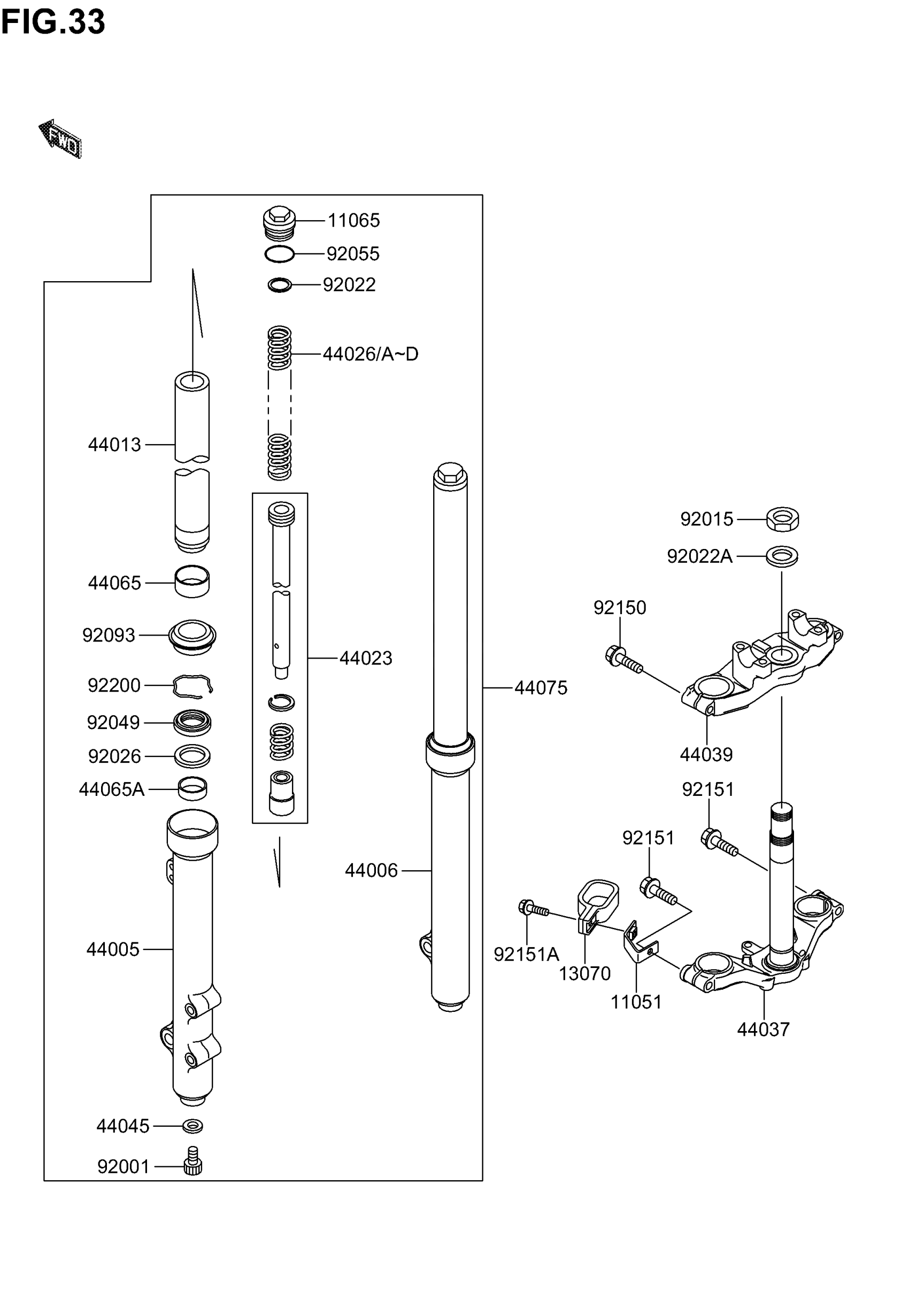

Suzuki RM65 (2005) FRONT FORK Diagram

BRACKET,BRAKE HOSE GUIDE

K1105-11892

Unavailable

CAP,FROK TOP

K1106-51225

Unavailable

GUIDE,BRAKE HOSE

K1307-01349

$7.37

PIPE-LEFT FORK OUTER

K4400-51404

Unavailable

PIPE-RIGHT FORK OUTER

K4400-61402

Unavailable

PIPE-FORK INNER

K4401-31496

Unavailable

CYLINDER-SET-FORK

K4402-31161

Unavailable

SPRING-FRONT FORK,K=0.26 | OPTION

K4402-61735

Unavailable

SPRING-FRONT FORK,K=0.27

K4402-61736

Unavailable

SPRING-FRONT FORK,K=0.28 | OPTION

K4402-61737

Unavailable

SPRING-FRONT FORK,K=0.29 | OPTION

K4402-61738

Unavailable

SPRING-FRONT FORK,K=0.25 | OPTION

K4402-61739

Unavailable

HOLDER-FORK UNDER

K4403-71397

Unavailable

HOLDER-FORK UPPER

K4403-91302

Unavailable

GASKET,FORK CYLINDER BOLT

KK440-45051

$4.90

BUSHING-FRONT FORK,INNER PIPE

K4406-51123

$14.27

BUSHING-FRONT FORK

K4406-51133

$12.59

NO DESCRIPTION AVAILABLE This part replaces K4407-51158.

K4407-01921

Unavailable

BOLT,FORK CYLINDER

K9200-11464

$4.82

NUT,STEERING ST This part replaces K9201-51653.

K9221-01521

Unavailable

WASHER,FORK SPRING

K9202-21841

Unavailable

WASHER,STEERING STEM

K9202-21873

Unavailable

SPACER

K9202-61365

Unavailable

SEAL-OIL,FORK OUTER TUBE

K9204-91524

$11.89

RING-O,FORK SPRING SEAT

K9205-51142

Unavailable

SEAL,FORK OUTER TUBE

K9209-31519

$13.75

BOLT,FLANGED,8X35

K9215-01585

Unavailable

BOLT,FLANGED,10X35

K9215-11636

Unavailable

BOLT,FLANGED,5X16

K9215-11637

Unavailable

WASHER

K9220-01496

Unavailable
