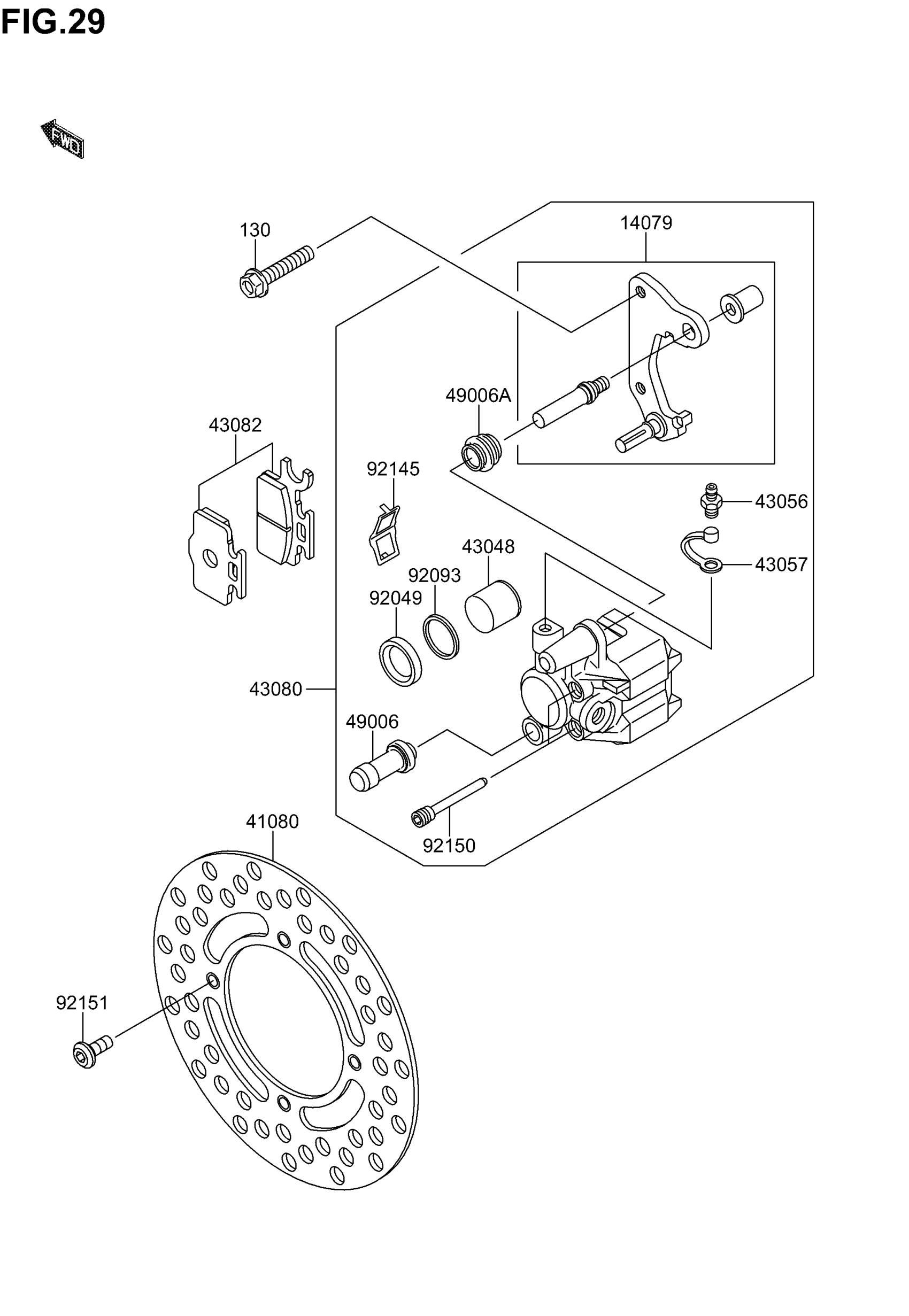

Suzuki RM65 (2005) FRONT BRAKE Diagram

#

Description

Price

14079

HOLDER-ASSY,FRONT CALIPER

K1407-91130

Unavailable

41080

DISC

K4108-01470

Unavailable

43048

PISTON-CALIPER

K4304-81089

Unavailable

43056

BREATHER-BRAKE

K4305-61056

Unavailable

43057

CAP-BREATHER

K4305-71001

Unavailable

43080

CALIPER-SUB-ASSY,FR

K4308-05131

Unavailable

43082

PAD ASSY,BRAKE This part replaces K4308-21242.

K4308-20096

Unavailable

49006

BOOT,CALIPER

K4900-61088

$10.00

49006A

BOOT,CALIPER

K4900-61242

$4.28

92049

SEAL-OIL,PISTON

K9204-91331

Unavailable

92093

SEAL,PISTON

K9209-31272

Unavailable

92145

SPRING,PAD

K9214-51269

Unavailable

92150

BOLT

K9215-01144

Unavailable

92151

BOLT,DISC PLATE,6MM

K9215-11799

$3.22

130

BOLT-FLANGED This part replaces KK130-P0840.

K130C-A0840

Unavailable
